22236 - Toro 30" TurfMaster HDX Walk-Behind Mower (SN: 400000000 - 999999999) Handle Assembly Parts Diagram

30" TurfMaster HDX Walk-Behind Mower

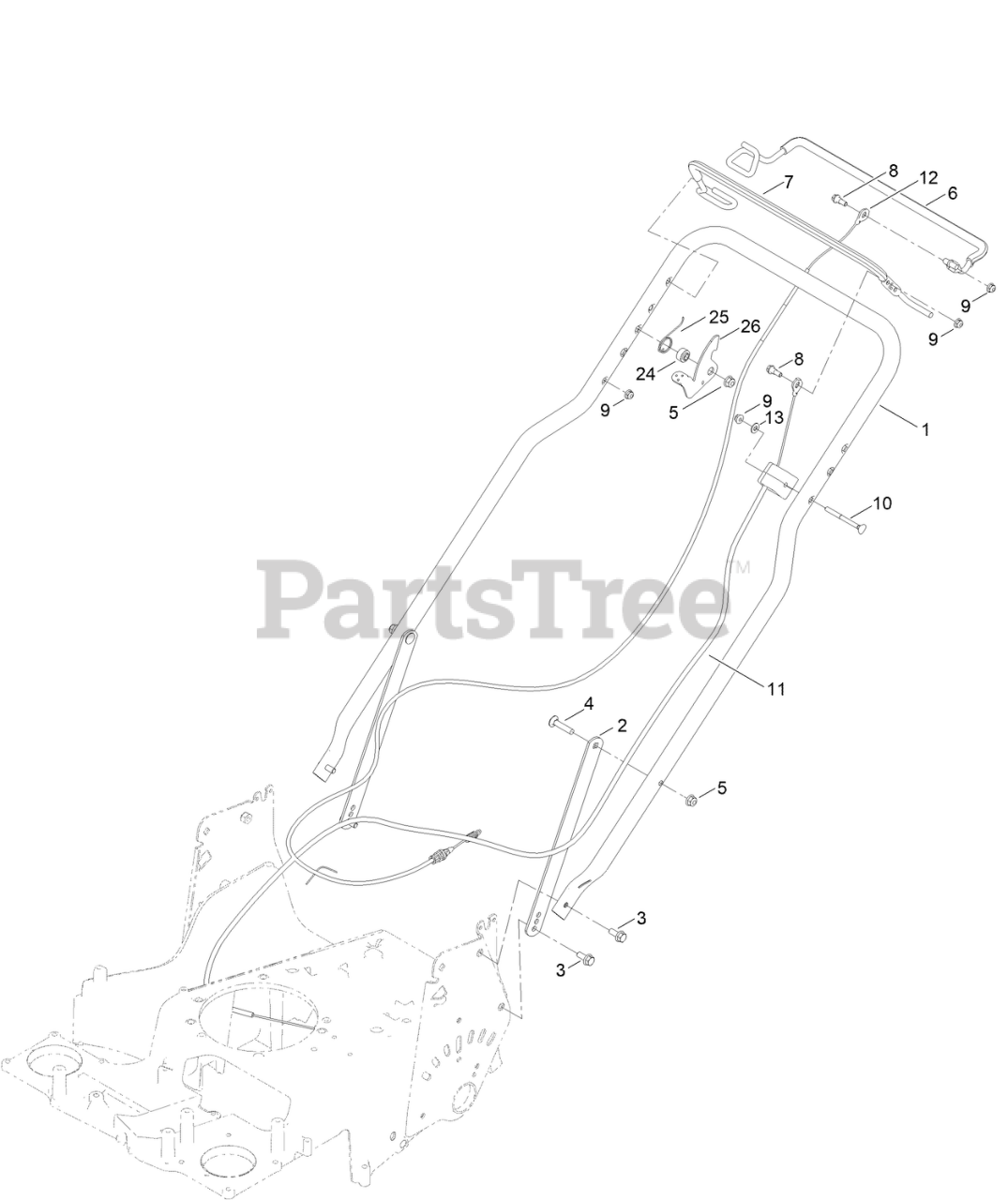

Handle Assembly Parts Diagram

  • Title

1

Toro 147-0540-03

HANDLE

$114.99

$

Usually ships in 3-6 days

0

2

Toro 116-8208-03

SUPPORT-HANDLE

$7.49

$

In Stock, Qty 8

0

3

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

4

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 11

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 139-1815

BAIL-TRACTION, COATED

$42.99

$

In Stock, Qty 20+

0

7

Toro 137-4810

BAIL-BBC, COATED

$43.99

$

In Stock, Qty 20+

0

8

Toro 42-3560

BOLT-SHOULDER

$6.49

$

In Stock, Qty 20+

0

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 140-3985

SCREW-HANDLE

$1.49

$

Usually ships in 3-6 days

0

11

Toro 137-4759

CABLE-BBC

$38.99

$

In Stock, Qty 20+

0

12

Toro 137-4807

CABLE-TRACTION

$39.99

$

In Stock, Qty 20+

0

13

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

24

Toro 116-2690

BUSHING-STEPPED

$14.99

$

In Stock, only 4 left!

0

25

Toro 109-9318

SPRING-LEVER, BBC

$6.99

$

In Stock, Qty 12

0

26

Toro 116-2998

LEVER-BBC

$19.99

$

In Stock, only 3 left!

0

99

Toro 614249

TIE-CABLE

Note: Not illustrated
