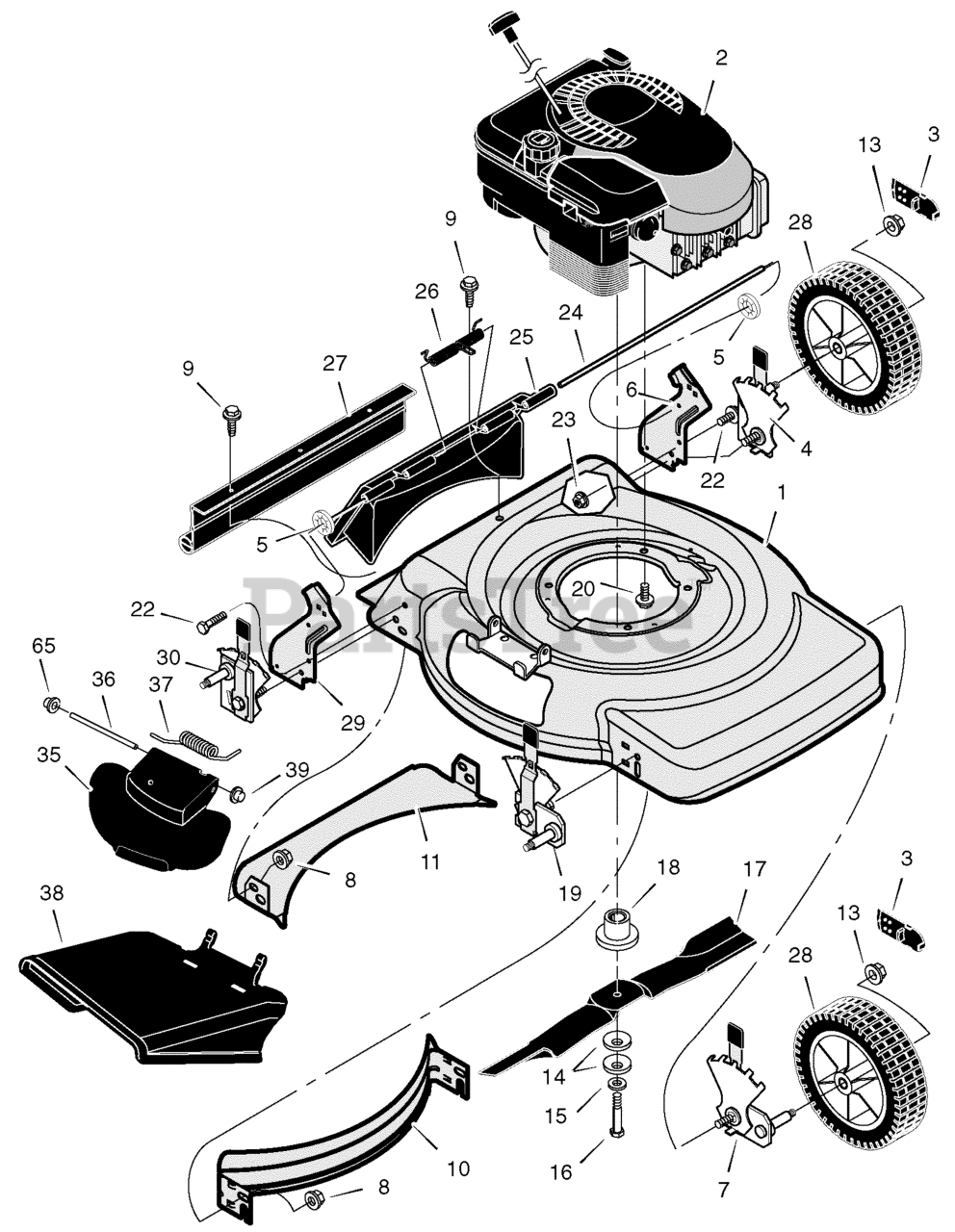

222390x31C - Scotts 22" Walk-Behind Mower (2004) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 7501004

Housing

$

$

Currently unavailable

2

Engine

$

$

Not available

3

Murray 1101320

Cap, Hub (Optional)

$

$

Not available

4

Murray 1102035

Adjuster, Left Rear Height

$32.99

$

Usually ships in 2-12 days

0

5

Murray 028X49

Push Retainer

Note: (Included with Ref. No. 25)

$3.99

$

In Stock, Qty 13

0

6

Murray 1102075E701

Bracket, Left Handle

$22.99

$

Usually ships in 2-12 days

0

7

Murray 1102033

Bracket, Left Handle

$82.99

$

Usually ships in 2-12 days

0

8

Murray 015X68

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 26X245

Screw *

$4.49

$

In Stock, Qty 6

0

10

Murray 672915E701

Baffle, Front

$74.99

$

Usually ships in 2-12 days

0

11

Murray 672916E701

Baffle, Rear

$43.99

$

In Stock, only 2 left!

0

13

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

Murray 17X124

Washer

$

$

Not available

16

Murray 01X142

Bolt

$8.49

$

In Stock, Qty 7

0

17

Murray 1101120E701

Blade

$24.99

$

In Stock, only 2 left!

0

18

Murray 71056

Adapter, Blade

$

$

Not available

19

Murray 1102032

Adjuster, Right Front Height

$83.99

$

Usually ships in 2-12 days

0

20

Murray 0025X6

Bolt, Engine
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

22

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

23

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X21

Rod, Pivot

Note: (Included with Ref. No. 25)

$7.99

$

Usually ships in 2-12 days

0

25

Murray 1101070

Door, Rear (Black) *

$

$

Not available

26

Murray 166X44

Spring

Note: (Included with Ref. No. 25)

$14.99

$

In Stock, only 3 left!

0

27

Murray 1101105

Guard, Rear *

$

$

Not available

28

Murray 71132

Wheel & Tire

$36.99

$

In Stock, only 2 left!

0

29

Murray 1102074E701

Bracket, Right Handle

$40.99

$

Usually ships in 2-12 days

0

30

Murray 1102034

Adjuster, Right Rear Height

$66.99

$

Usually ships in 2-12 days

0

35

Murray 1101098

Cover, Mulch (Black)

Note: (Included when ordering Ref. No. 1)

$33.99

$

Usually ships in 2-12 days

0

36

Murray 215X19 Z

Rod, Pivot *

$

$

Currently unavailable

37

Murray 166X38

Spring, Torsion *

$

$

Not available

38

Murray 1101097

Deflector, Chute (Black) *

$39.99

$

In Stock, only 1 left!

0

39

Murray 028X42

Push On Cap *

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-040463L

Instruction Book

$

$

Currently unavailable
