22240 - Lawn-Boy Walk-Behind Mower (SN: 007900001 - 007999999) (1997) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

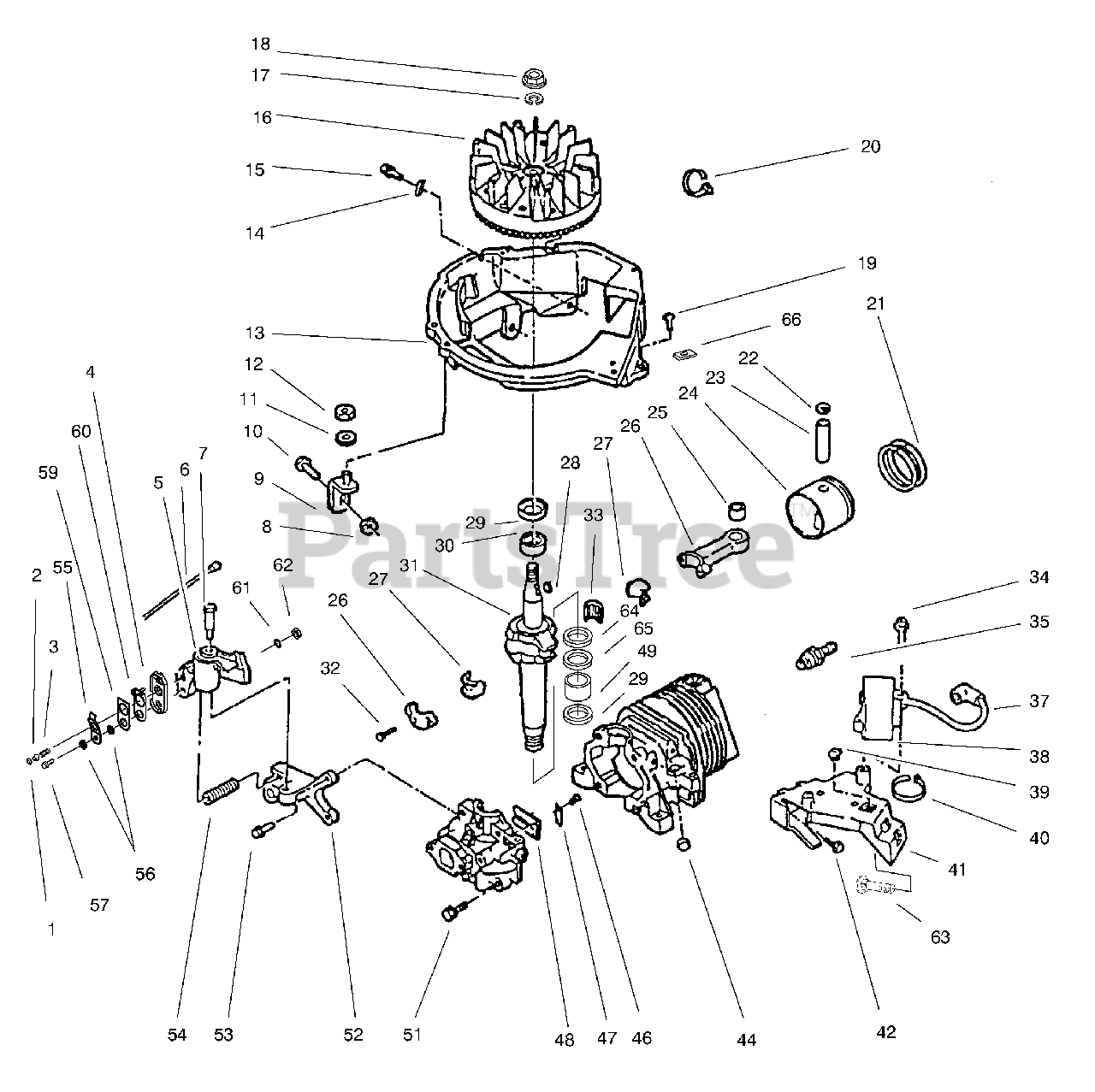

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 611213

Retainer

$1.99

$

In Stock, Qty 9

0

2

Lawn-Boy 611509

Actuator-Brake Lever

$4.99

$

In Stock, Qty 5

0

3

Lawn-Boy 611214

Spring-Cable, Return

$8.49

$

In Stock, only 3 left!

0

4

Lawn-Boy 93-1240

Case-Switch

$3.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 682683

Assembly-Brake

$

$

Not available

6

Lawn-Boy 683821

Wire Lead

$

$

Not available

7

Lawn-Boy 613529

Bolt-Shoulder

$13.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 608311

Nut

$2.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 683581

Assembly-Brace

$19.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 603014

Bolt

$2.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 306407

Washer
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 602315

Nut

$4.49

$

In Stock, only 2 left!

0

13

Lawn-Boy 612427

Shroud-Base

$

$

Not available

14

Lawn-Boy 611191

Clip-"J"

$

$

Not available

15

Lawn-Boy 609947

Screw

$9.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 683580

Assembly-Flywheel

$318.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 316959

Washer-Lock
(Superseded to 325-36)

$8.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 130743

Nut-Flywheel

$2.99

$

In Stock, Qty 7

0

19

Lawn-Boy 609808

Screw

$11.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 317893

Tie Strap

$

$

Not available

21

Lawn-Boy 681737

Set-Ring

$

$

Not available

22

Lawn-Boy 303712

Ring-Retaining

$2.99

$

In Stock, Qty 13

0

23

Lawn-Boy 606608

Pin-Wrist
(Superseded to 94-5774)

$9.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 92-4925

Set-Piston & Ring (Incl. Ref.# 21-23)

$

$

Not available

25

Lawn-Boy 92-4927

Assembly-Bearing

$33.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 92-4921

Assembly-Conn. Rod (Incl. Ref. #25, 27, 32, & 33)

$206.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 677982

Liner-Pair

$40.99

$

In Stock, only 3 left!

0

28

Lawn-Boy 607199

Key-Flywheel

$4.99

$

In Stock, Qty 12

0

29

Lawn-Boy 611396

Seal-Oil

$5.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 681830

Bearing-Main

$35.99

$

In Stock, only 4 left!

0

31

Lawn-Boy 94-5713

Crankshaft

$284.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 611393

Screw

$19.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 609754

Strip-Roller
(Superseded to 683911)

$23.99

$

In Stock, Qty 5

0

34

Lawn-Boy 607526

Screw
(Superseded to 32105-12)

$2.99

$

In Stock, only 4 left!

0

35

Lawn-Boy 614009

Spark Plug

$5.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 681678

Wire Lead

$23.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 683215

C. D. Ignition Module (Incl. Ref. #37)
(Superseded to 100-2948)

$107.99

$

In Stock, Qty 5

0

39

Lawn-Boy 605120

Grommet

$3.99

$

In Stock, Qty 16

0

40

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 20+

0

41

Lawn-Boy 613072

Bracket-C. D.

$35.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 614343

Screw

$2.99

$

In Stock, only 4 left!

0

44

Lawn-Boy 609123

Plug

$2.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 612872

Screw

$2.49

$

In Stock, Qty 7

0

47

Lawn-Boy 602587

Plate-Reed

$2.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 602588

Reed

$

$

Not available

49

Lawn-Boy 681831

Bearing-Main

$23.99

$

In Stock, Qty 5

0

51

Lawn-Boy 613110

Screw

$

$

Not available

52

Lawn-Boy 611192

Bracket-Brake

$111.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 613233

Screw

$3.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 611211

Spring-Brake

$13.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 93-1239

Spring

$2.49

$

In Stock, only 2 left!

0

56

Lawn-Boy 306407

Washer
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

57

Lawn-Boy 321-6

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0

59

Lawn-Boy 612842

Shield

$1.49

$

Usually ships in 3-6 days

0

60

Lawn-Boy 612841

Plate-Contact

$14.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 3255-7

Washer-Lock

$1.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 306375

Nut
(Superseded to 146254)

$

$

Not available

Lawn-Boy 94-5734

Assembly-Short Block (Incl. Ref. No.21-27, 29-33, & 43-51)

Note: Not Illustrated

$

$

Not available

63

Lawn-Boy 3229-22

Bolt-Carriage
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

64

Lawn-Boy 252-76

Bearing-Thrust

$21.99

$

In Stock, only 1 left!

0

65

Lawn-Boy 252-80

Washer-Thrust

$8.99

$

Usually ships in 3-6 days

0

66

Lawn-Boy 609900

Nut-Speed

$9.99

$

Usually ships in 3-6 days

0

Lawn-Boy 93-4307

Switch Kit (Incl. Ref. #1, 4, 6, 55, 57, & 59-62)

Note: Not Illustrated

$42.99

$

Usually ships in 3-6 days

0
