22243 - Toro Walk-Behind Mower (SN: 250000001 - 250999999) (2005) AIR CLEANER ASSEMBLY BRIGGS AND STRATTON 12W802-1701-B1 Parts Diagram

Walk-Behind Mower

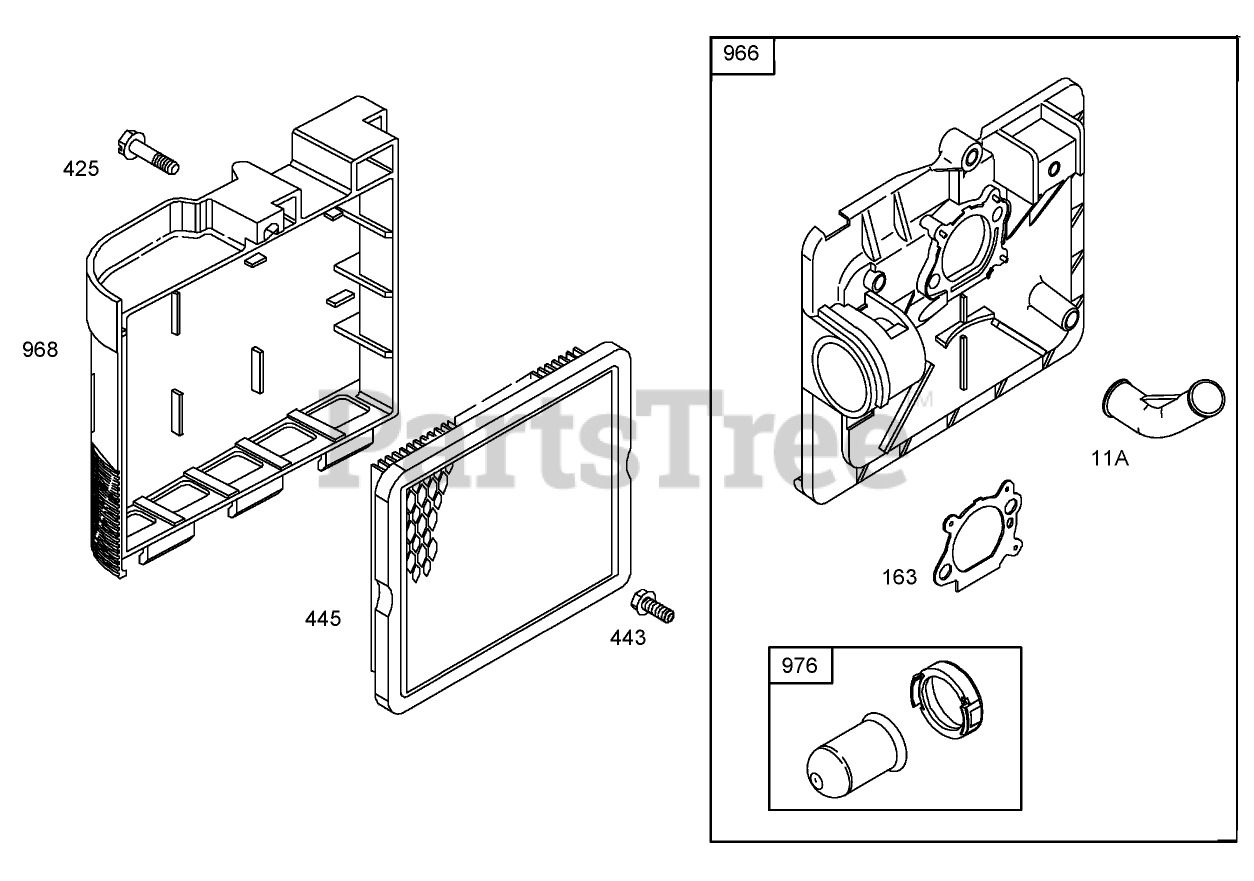

AIR CLEANER ASSEMBLY BRIGGS AND STRATTON 12W802-1701-B1 Parts Diagram

  • Title

11A

Toro 6919

Bolt-Hex, Hollow (3/8-16 x 3/4)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.49

$

In Stock, Qty 20+

0

425

Briggs & Stratton 693318

Screw (Air Cleaner Cover)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 1 left!

0

443

Briggs & Stratton 690349

Screw (Air Cleaner Primer Base)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 491588

Filter-Air Cleaner, Cartridge
(Superseded to 491588S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

966

Briggs & Stratton 691439

Base-Air Cleaner Primer

Note: Obtain parts from www.briggsandstratton.com

$33.99

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 791457

Cover-Air Cleaner

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

Usually ships in 2-12 days

0

976

Briggs & Stratton 694395

Primer-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0
