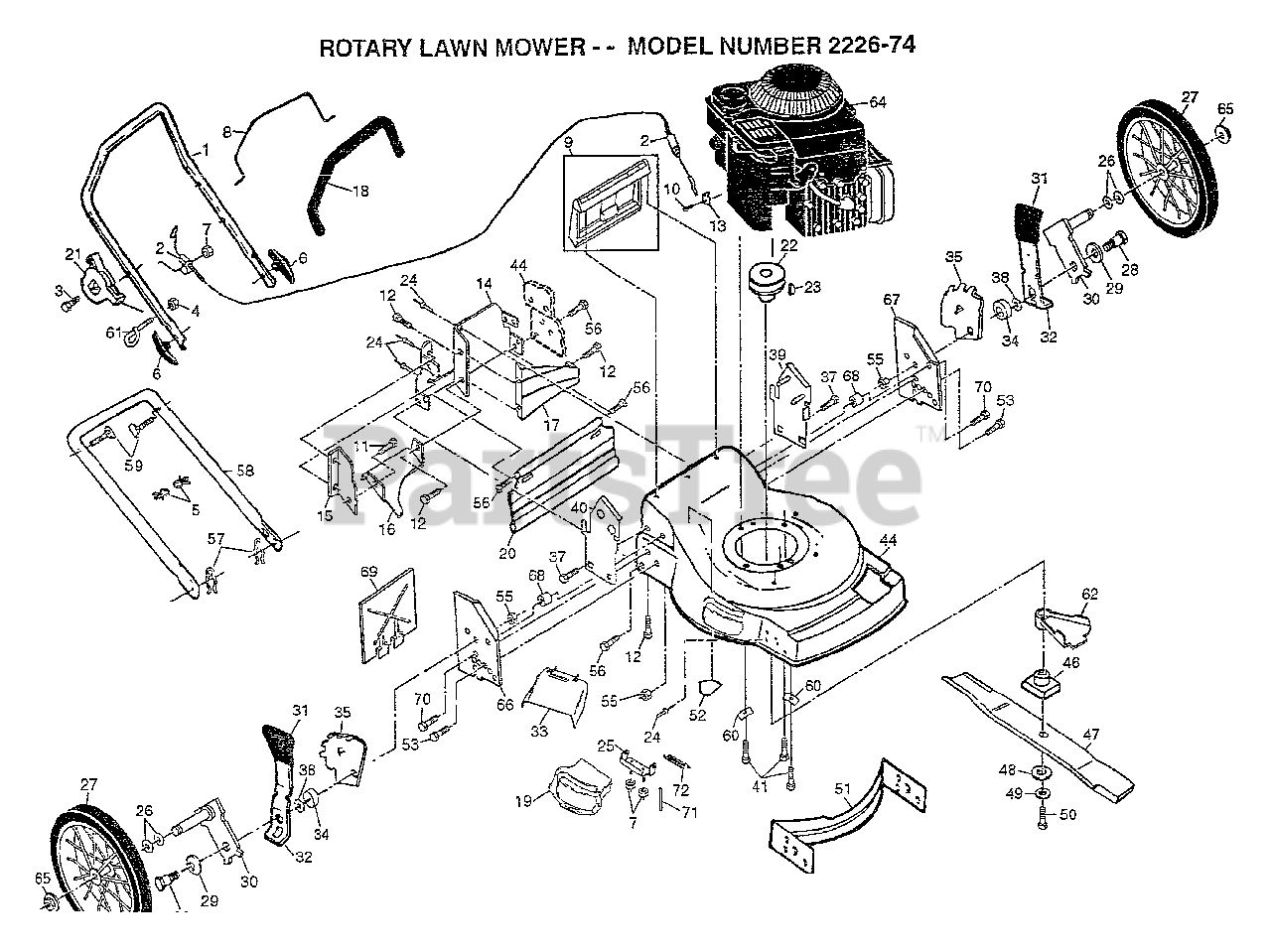

2226-74 - Electrolux/AYP Walk-Behind Mower (1997) LAWN MOWER Parts Diagram

Walk-Behind Mower

LAWN MOWER Parts Diagram

  • Title

1

Electrolux/AYP 145640X479

HANDLE.UP.DLX.CON SUBS/1
(Superseded to 532166862)

$84.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 130861

"CABLE,ENG ZONE CO"
(Superseded to 532130861)

$12.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 144929

SCREW.HXHD.WASH.
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

5

Electrolux/AYP 151517

SUB= 7192J
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 136376

KNOB HANDLE
(Superseded to 532183724)

$

$

Not available

7

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

8

Electrolux/AYP 145794

BAIL.CNTRL.DLX.
(Superseded to 583678201)

$

$

Not available

9

Electrolux/AYP 147615

KIT.DOOR.RR.22.PL
(Superseded to 582969401)

$51.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 150050

SCREW.HXTAP.10-24
(Superseded to 532150050)

$4.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 54583

SCREW
(Superseded to 532054583)

$

$

Not available

13

Electrolux/AYP 213146

CABLE CLAMP

$

$

Not available

14

Electrolux/AYP 700360X479

PLATE.BACK
(Superseded to 156380X479)

$

$

Not available

15

Electrolux/AYP 700365X479

BAFFLE.SIDE

$

$

Not available

16

Electrolux/AYP 133190X479

DISCHARGE BAFFLE

$

$

Not available

17

Electrolux/AYP 133040X479

REAR BAFFLE
(Superseded to 532133040)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 155890

SUB= 164265
(Superseded to 585161003)

$

$

Not available

19

Electrolux/AYP 145281

DOOR.MULCH.COMBI
(Superseded to 582964201)

$9.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 140540

SKIRT.REAR.FGD.22
(Superseded to 532413160)

$12.99

$

In Stock, Qty 8

0

21

Electrolux/AYP 700417

"CONTROL, THROTTLE"
(Superseded to 532700417)

$24.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 84596

ENGINE.PULLEY.FWG
(Superseded to 532084596)

$34.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 87677

HI PRO KEY PM
(Superseded to 532087677)

$

$

Not available

24

Electrolux/AYP 128415

BLIND RIVET
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 147775

BRACKET.HINGE.W/F
(Superseded to 532147775)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 57143

WAVE WASHER
(Superseded to 532428450)

$7.99

$

In Stock, only 3 left!

0

27

Electrolux/AYP 700735

ASM WHL & TIRE

$

$

Not available

28

Electrolux/AYP 142748

BOLT SHLD 3/8-16
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

29

Electrolux/AYP 61651

WASHER

$2.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 851119X004

AXLE ARM ASSY R
(Superseded to 169664)

$2.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 3 left!

0

32

Electrolux/AYP 700331X004

SPRING SELECTOR
(Superseded to 532401621)

$4.99

$

In Stock, Qty 11

0

33

Electrolux/AYP 145285

GUARD.DISCH.CLIPO
(Superseded to 532145285)

$

$

Not available

34

Electrolux/AYP 146630

SPACER.HEIGHT.ADJ
(Superseded to 532401629)

$6.49

$

In Stock, Qty 5

0

35

Electrolux/AYP 700325X007

BRACKET.ADJ.9POS.
(Superseded to 532700325)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 150078

SCREW.HXWS.5/16
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

38

Electrolux/AYP 88348

WASHER PM
(Superseded to 532088348)

$7.49

$

In Stock, only 4 left!

0

39

Electrolux/AYP 701923X479

BRKT.ASM.HDL.LH
(Superseded to 584386101)

$

$

Not available

40

Electrolux/AYP 701921X479

BRACKET.ASM.HD.RH
(Superseded to 532148942)

$

$

Not available

41

Electrolux/AYP 150406

BOLT.ENG.3/8-16
(Superseded to 532150406)

$7.49

$

In Stock, Qty 10

0

44

Electrolux/AYP 159102

HOUSING ASSEMBLY

$140.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 851514

ADAPTOR.BLADE.LM
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 141114

"BLADE.MULCH.22"""
(Superseded to 532141114)

$21.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 851074

"WASHER,HARDEN"
(Superseded to 532851074)

$4.99

$

In Stock, Qty 20+

0

49

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 144964

KIT.BAF.FRT.22RD
(Superseded to 532170557)

$34.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 107339X

DECAL HYT
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, Qty 19

0

55

Electrolux/AYP 751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 88652

HINGE SCREW
(Superseded to 532088652)

$7.49

$

In Stock, only 4 left!

0

57

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

In Stock, only 1 left!

0

58

Electrolux/AYP 151721X479

LOWER HANDLE
(Superseded to 532175245)

$

$

Not available

59

Electrolux/AYP 131959

BOLT.HANDLE.LM
(Superseded to 532183724)

$

$

Not available

60

Electrolux/AYP 851201X004

WASHER

$

$

Not available

61

Electrolux/AYP 132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 8

0

62

Electrolux/AYP 134612

SUB= 48283

$

$

Not available

64

Electrolux/AYP 12H802

ENGINE

$

$

Not available

65

Electrolux/AYP 83923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 107641X479

WHL.BRKT.SUPT. RH

$3.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 107640X479

WHL BRKT SUPT LH

$

$

Not available

68

Electrolux/AYP 73713

SPACER

$

$

Not available

69

Electrolux/AYP 133170X479

MULCHER PLATE
(Superseded to 532166649)

$

$

Not available

70

Electrolux/AYP 149588

SCREW.HX.WSHD.
(Superseded to 532149588)

$6.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 147286

ROD.HINGE.COMBI-C
(Superseded to 532147286)

$8.99

$

In Stock, Qty 12

0

72

Electrolux/AYP 152186

SPRING.HINGE
(Superseded to 532152186)

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 145658

MANUAL.GEN.SP.E.
(Superseded to 917145658)

$5.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 159101

MANUAL.P.2226-74

$2.49

$

Usually ships in 3-10 days

0
