22260 - Lawn-Boy Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

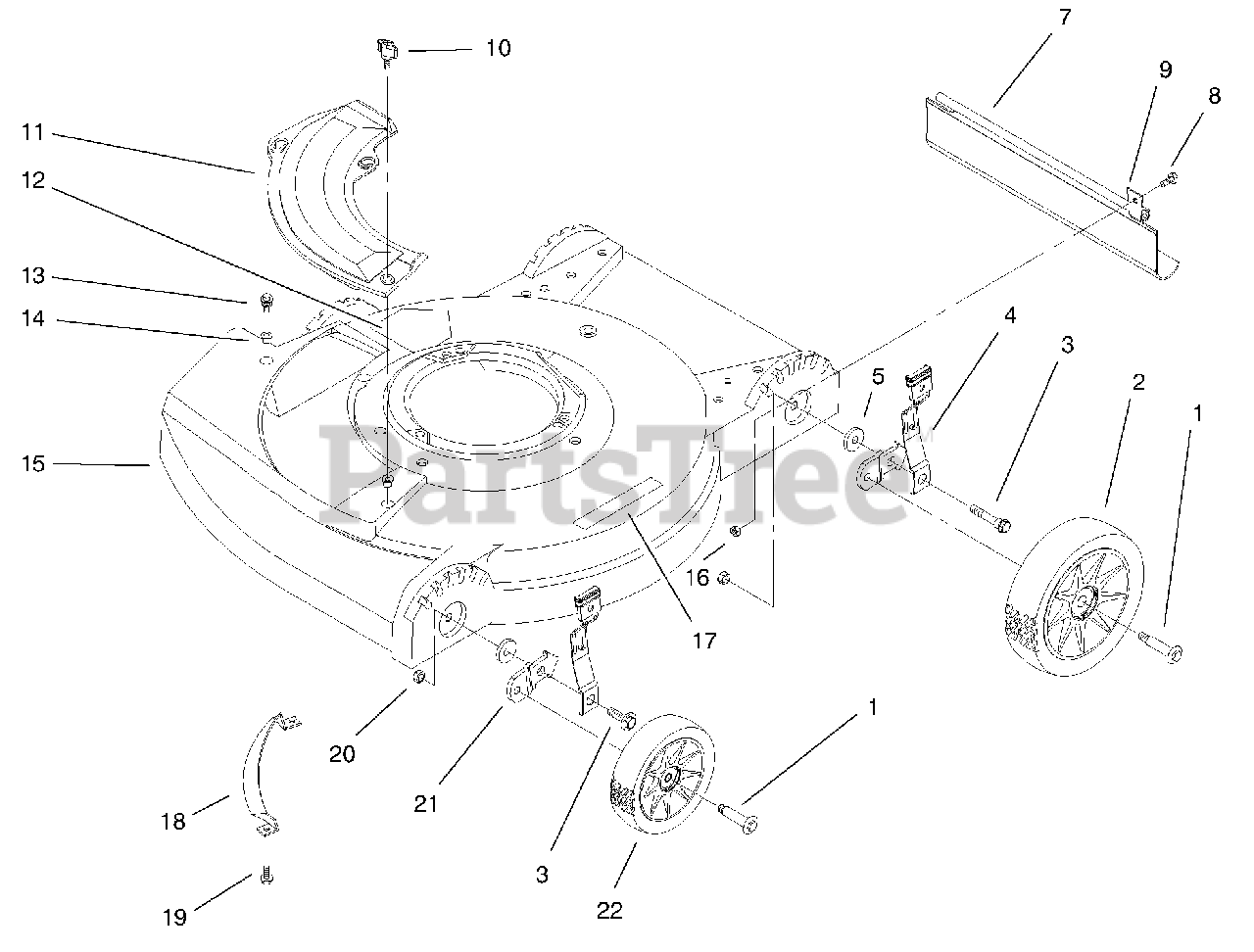

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 603567

Bolt

$13.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 683464

8" Whel/Tire ASM

$79.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 610646

Bolt

$6.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 153444

Knob&spring Formc

$

$

Not available

5

Lawn-Boy 608834

Washer

$15.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 93-7368

Shield-Trailing

$35.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 321-3

Screw-HH

$1.49

$

In Stock, Qty 10

0

9

Lawn-Boy 93-7693

Clamp-Shield

$15.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 98-8332

Knob

$5.49

$

In Stock, Qty 13

0

11

Lawn-Boy 95-7052

Plate-Chute Opening

$30.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 39-5770

Decal-Cut Finger

$7.99

$

In Stock, Qty 8

0

13

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 95-7442-02

Hsg-Commercial 21"
(Superseded to 99-5201)

$

$

Not available

16

Lawn-Boy 3296-56

Nut-Lock Ni

$2.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 93-7250

Decal-Safety Instruct

$14.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 608175

Toe Bar 21"

$75.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 46-6811

Screw/Washer

$3.49

$

In Stock, Qty 7

0

20

Lawn-Boy 3296-39

Nut-Lock Ni

$2.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 608833-03

Whl Hgt Brkt

$22.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 684159

6" Whel/Tire ASM

$68.99

$

In Stock, only 2 left!

0
