22260 - Toro Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

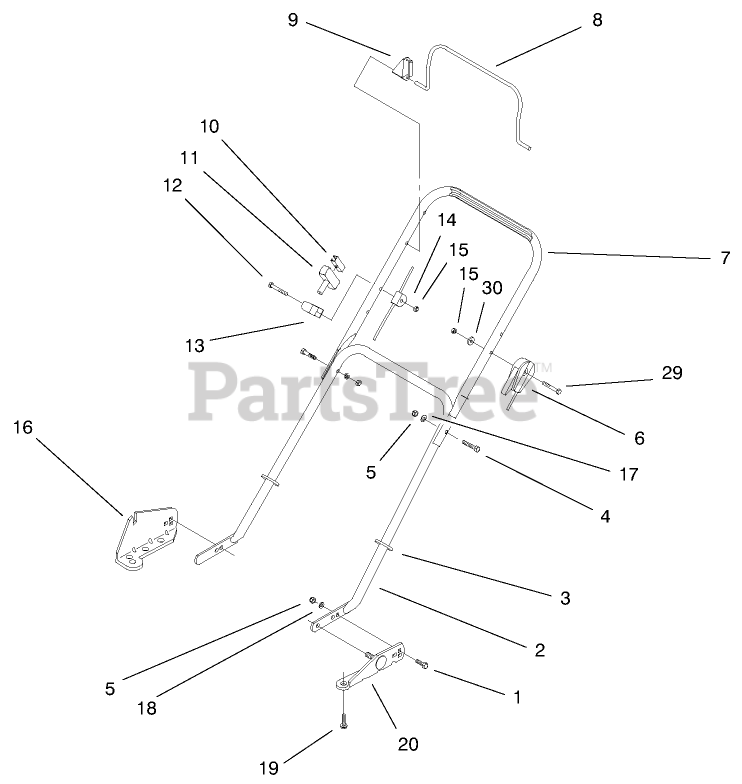

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3230-29

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

2

Toro 613048

Handle-Lower
(Superseded to 92-2920-05)

$128.99

$

Usually ships in 3-6 days

0

3

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

4

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 95-7446

CABLE - THROTTLE

$73.99

$

Usually ships in 3-6 days

0

7

Toro 95-1713

Handle-Upper
(Superseded to 95-1713-05)

$91.99

$

Usually ships in 3-6 days

0

8

Toro 93-4184

Bail-Brake
(Superseded to 93-4184-03)

$34.99

$

Usually ships in 3-6 days

0

9

Toro 92-5412

STOP-PIVOT
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

10

Toro 612824

CLIP-STARTER

$3.99

$

In Stock, Qty 13

0

11

Toro 612825

HANDLE-START
(Superseded to 81-1630)

$18.99

$

In Stock, Qty 6

0

12

Toro 321-49

SCREW-HH

$1.49

$

In Stock, Qty 9

0

13

Toro 93-7383

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 16

0

14

Toro 92-7738

CABLE - FLYWHEEL BRAKE

$28.99

$

In Stock, Qty 9

0

15

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

16

Toro 684057

ASM-Bracket & Pin
(Superseded to 684057-03)

$

$

Not available

17

Toro 609739

WASHER-CURVED

$3.49

$

In Stock, Qty 10

0

18

Toro 3253-33

WASHER-LOCK

$1.99

$

In Stock, only 2 left!

0

19

Toro 607188

SCREW

$3.49

$

In Stock, only 3 left!

0

20

Toro 684058

ASM-Bracket & Pin
(Superseded to 684058-03)

$70.99

$

Usually ships in 3-6 days

0

29

Toro 321-48

SCREW-HH

$1.99

$

In Stock, only 3 left!

0

30

Toro 92-8632

WASHER
(Superseded to 115-0995)

$6.99

$

In Stock, only 2 left!

0
