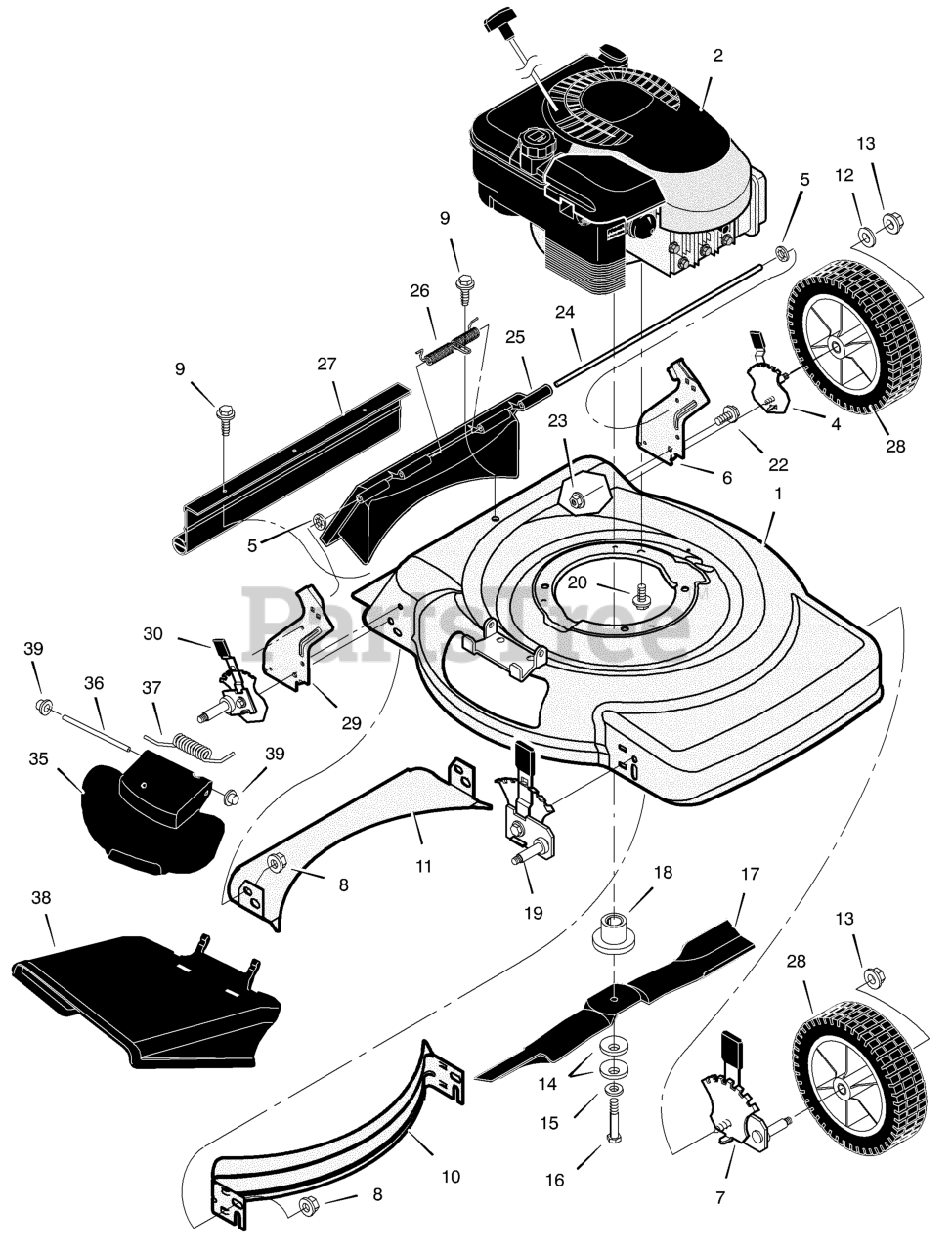

22265x8D - Scotts 22" Walk-Behind Mower (2002) > Parts Diagrams (3) > Mower Housing Assembly

  • Title
7501004MA

1

Housing

Part# 7501004MA

OEM Warranty Repair Part for Murray

Not available

-----

2

Engine

Part# -----

Not available

672605MA

4

Adjuster, Left Rear Height

Part# 672605MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $17.38

028X49MA

5

Push Retainer

Part# 028X49MA

Note: (Included with Ref. No. 25)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.92

1101239E700

6

Bracket, Left Handle

Part# 1101239E700

OEM Warranty Repair Part for Murray

Not available

672601MA

7

Adjuster, Left Front Height

Part# 672601MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $64.28

015X68MA

8

Nut, Flange

Part# 015X68MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.87

26X245MA

9

Screw

Part# 26X245MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $3.15

672915E700

10

Baffle, Front

Part# 672915E700

OEM Warranty Repair Part for Murray

Currently unavailable

672916E700

11

Baffle, Rear

Part# 672916E700

OEM Warranty Repair Part for Murray

Currently unavailable

017X91MA

12

Washer

Part# 017X91MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.91

015X84MA

13

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

17X137MA

14

Washer, Belleville

Part# 17X137MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.73

17X124MA

15

Washer

Part# 17X124MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

01X153MA

16

Bolt

Part# 01X153MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.03

1101120E701MA

17

Blade

Part# 1101120E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $21.70

672503MA

18

Adapter, Blade

Part# 672503MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $8.69

672600MA

19

Adjuster, Right Front Height

Part# 672600MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $64.34

0025X6MA

20

Bolt, Engine

Part# 0025X6MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $3.97

001X45MA

22

Bolt

Part# 001X45MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.02

015X79MA

23

Nut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

215X21MA

24

Rod, Pivot

Part# 215X21MA

Note: (Included with Ref. No. 25)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $7.18

1101070MA

25

Door, Rear (Black)

Part# 1101070MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $35.76

166X44MA

26

Spring

Part# 166X44MA

Note: (Included with Ref. No. 25)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $10.21

1101105MA

27

Guard, Rear

Part# 1101105MA (Superseded to 7103347YP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $13.94

1101681MA

28

Wheel & Tire

Part# 1101681MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $15.87

1101238E700

29

Bracket, Right Handle

Part# 1101238E700

OEM Warranty Repair Part for Murray

Not available

672604MA

30

Adjuster, Right Rear Height

Part# 672604MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $17.62

1101098MA

35

Cover, Mulch (Black)

Part# 1101098MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $25.73

215X19  Z

36

Rod, Pivot

Part# 215X19 Z

OEM Warranty Repair Part for Murray

Currently unavailable

166X38MA

37

Spring, Torsion

Part# 166X38MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.33

1101097MA

38

Deflector, Chute (Black)

Part# 1101097MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $28.88

028X42MA

39

Push On Cap

Part# 028X42MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.74

44X6259MA

--

Decal, Customer Care

Part# 44X6259MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $11.90

48X695

--

Decal, 3n1 Mulch/Bag/Mow

Part# 48X695

OEM Warranty Repair Part for Murray

Currently unavailable

48X407MA

--

Decal, Warning/Cut Finger

Part# 48X407MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $8.87

F-020422L

--

Instruction Book

Part# F-020422L

OEM Warranty Repair Part for Murray

Currently unavailable
