22270 - Lawn-Boy 21" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) HANDLE ASSEMBLY Parts Diagram

21" Walk-Behind Mower

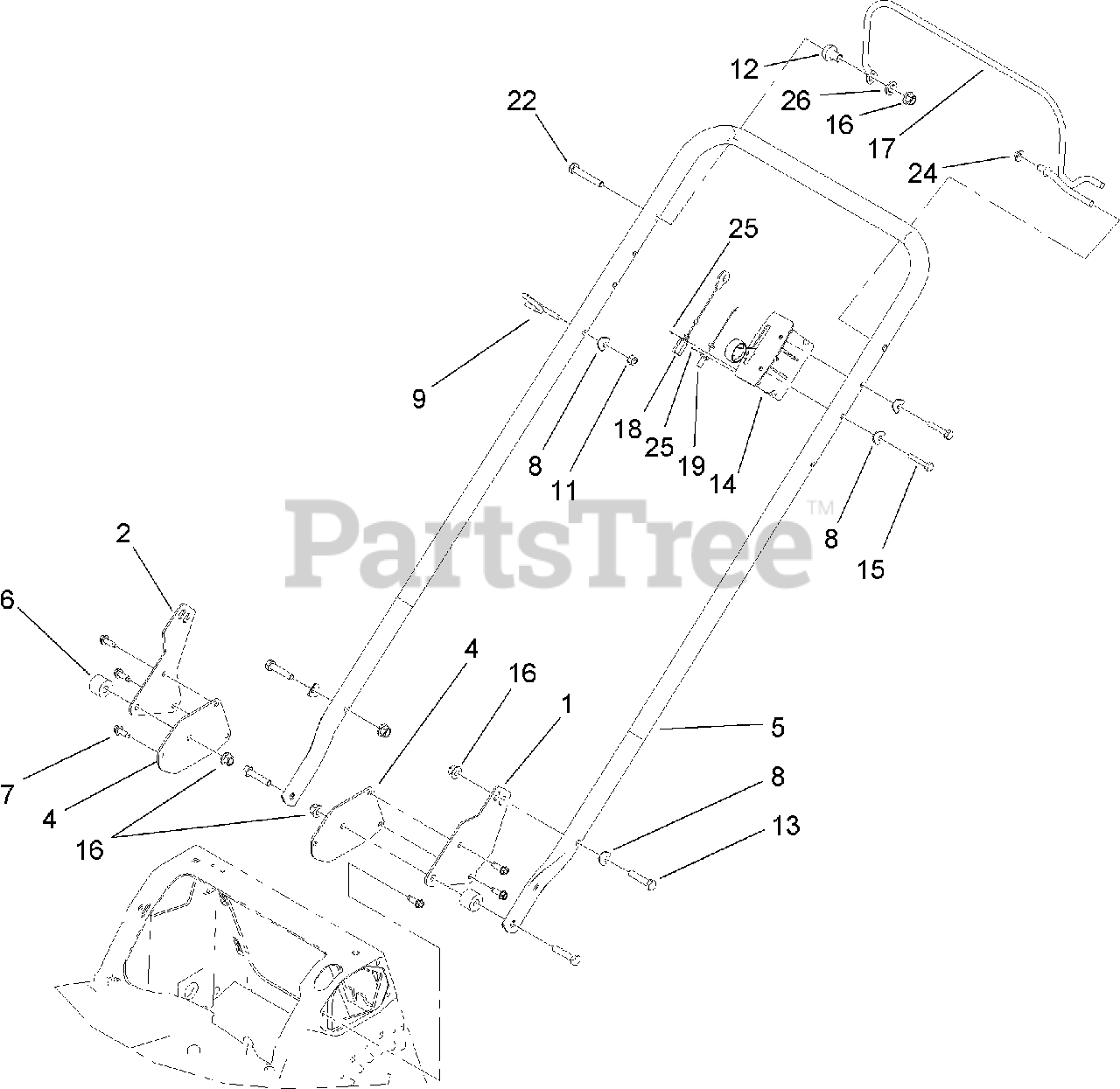

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 110-9494-03

SUPPORT-STRUT, LH

$26.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 110-9495-03

SUPPORT-STRUT, RH

$26.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 110-9471-03

PLATE-HANDLE

$12.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 107-4162-03

HANDLE
(Superseded to 119-7892-03)

$136.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 112-8797-03

SPACER

$4.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 3-7501

WASHER

$6.49

$

In Stock, Qty 15

0

9

Lawn-Boy 114-2775

GUIDE-ROPE

$10.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 49-1630

SPACER-SUPPORT

$8.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 108-2645

CONTROL-HEAD, THROTTLE

$109.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 321-13

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 114-2768-03

BAIL-BRAKE

$69.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 114-2771

CABLE-BRAKE

$64.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 110-4923

THROTTLE CABLE ASM

$37.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

24

Lawn-Boy 109-0917

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, Qty 16

0

25

Lawn-Boy 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 55-9670

WASHER

$2.49

$

Usually ships in 3-6 days

0
