22270 - Toro 21" Walk-Behind Mower (SN: 280000001 - 280999999) (2008) FRONT END AND TUNNEL ASSEMBLY Parts Diagram

21" Walk-Behind Mower

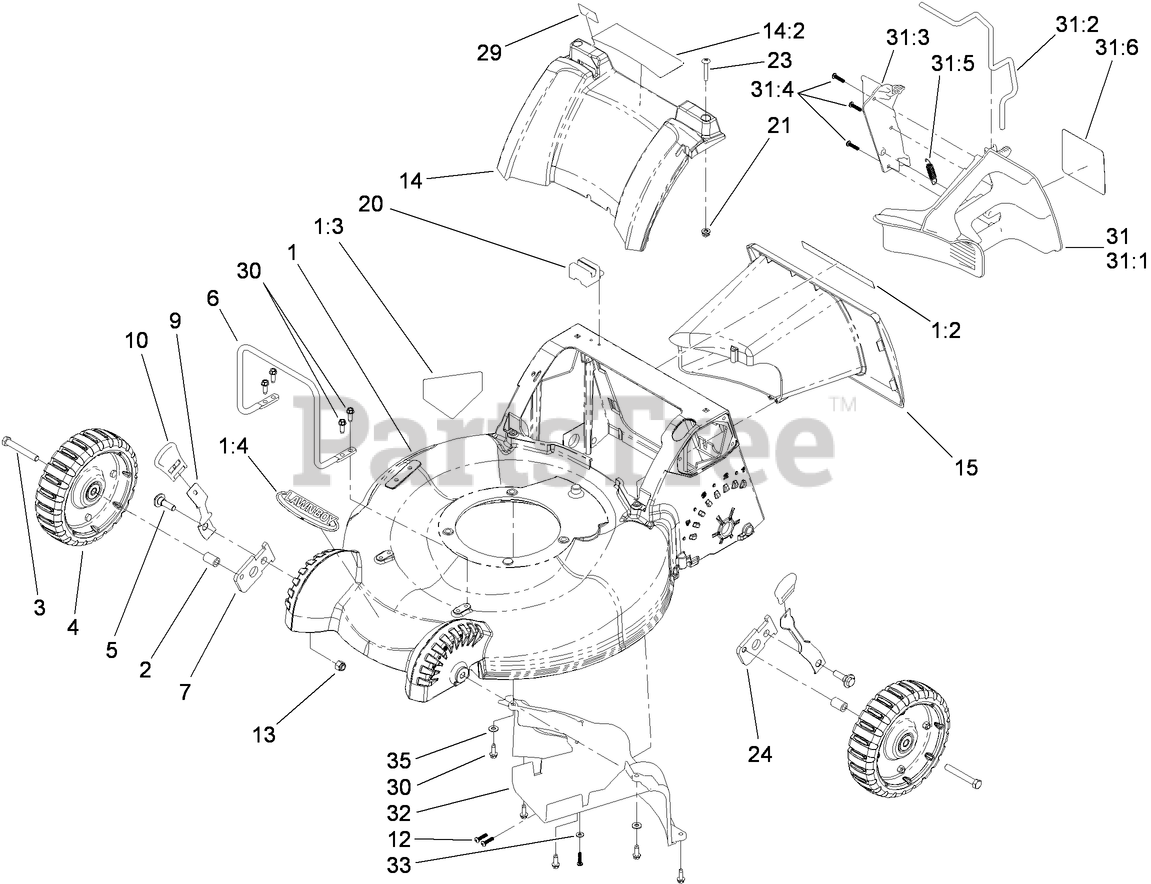

FRONT END AND TUNNEL ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5960

HOUSING

$258.99

$

Usually ships in 3-6 days

0

1:2

Toro 107-3889

DECAL-SAFETY
(Superseded to 114-2820)

$6.99

$

Usually ships in 3-6 days

0

1:3

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 18

0

1:4

Toro 117-5961

DECAL

$

$

Not available

2

Toro 114-2754

SPACER

$10.99

$

In Stock, only 4 left!

0

3

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 16

0

4

Toro 114-2752

8 INCH WHEEL ASM

$68.99

$

Usually ships in 3-6 days

0

5

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 9

0

6

Toro 110-9475-03

GUARD-ENGINE

$29.99

$

Usually ships in 3-6 days

0

7

Toro 110-9421

ARM-PIVOT, RH

$17.99

$

In Stock, only 2 left!

0

9

Toro 110-9434

ARM-SPRING, FRONT

$10.99

$

In Stock, Qty 6

0

10

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

12

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 108-9349

COVER-REAR

$

$

Not available

14:2

Toro 107-3888

DECAL-SAFETY
(Superseded to 114-2820)

$6.99

$

Usually ships in 3-6 days

0

15

Toro 110-9455

TUNNEL

$43.99

$

Usually ships in 3-6 days

0

20

Toro 110-1786

MODULE-SWITCH

$62.99

$

Usually ships in 3-6 days

0

21

Toro 94-1610

NUT-CLIP

$0.99

$

In Stock, Qty 20+

0

23

Toro 108-0965

SCREW-PTH

$1.49

$

In Stock, Qty 11

0

24

Toro 110-9420

ARM-PIVOT, LH

$17.99

$

Usually ships in 3-6 days

0

29

Toro 107-1938

DECAL-BAG ATTACHMENT

$3.99

$

Usually ships in 3-6 days

0

30

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

31

Toro 110-9468

MULCH PLUG ASM

$62.99

$

In Stock, only 2 left!

0

31:1

Toro 110-9446

PLUG-MULCH, LH

$23.99

$

In Stock, only 2 left!

0

31:2

Toro 110-9448

LATCH-PLUG, MULCH

$24.99

$

In Stock, only 2 left!

0

31:3

Toro 110-9447

PLUG-MULCH, RH

$10.99

$

In Stock, only 4 left!

0

31:4

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

31:5

Toro 110-9458

SPRING-EXTENSION

$3.49

$

In Stock, Qty 7

0

31:6

Toro 110-9457

DECAL-PLUG, MULCH

$8.99

$

Usually ships in 3-6 days

0

32

Toro 110-9413

BAFFLE-REAR

$31.99

$

In Stock, only 2 left!

0

33

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
