22271 - Lawn-Boy 21" Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CHOKE LEVER ASSEMBLY HONDA GSV190LA S3A Parts Diagram

21" Walk-Behind Mower

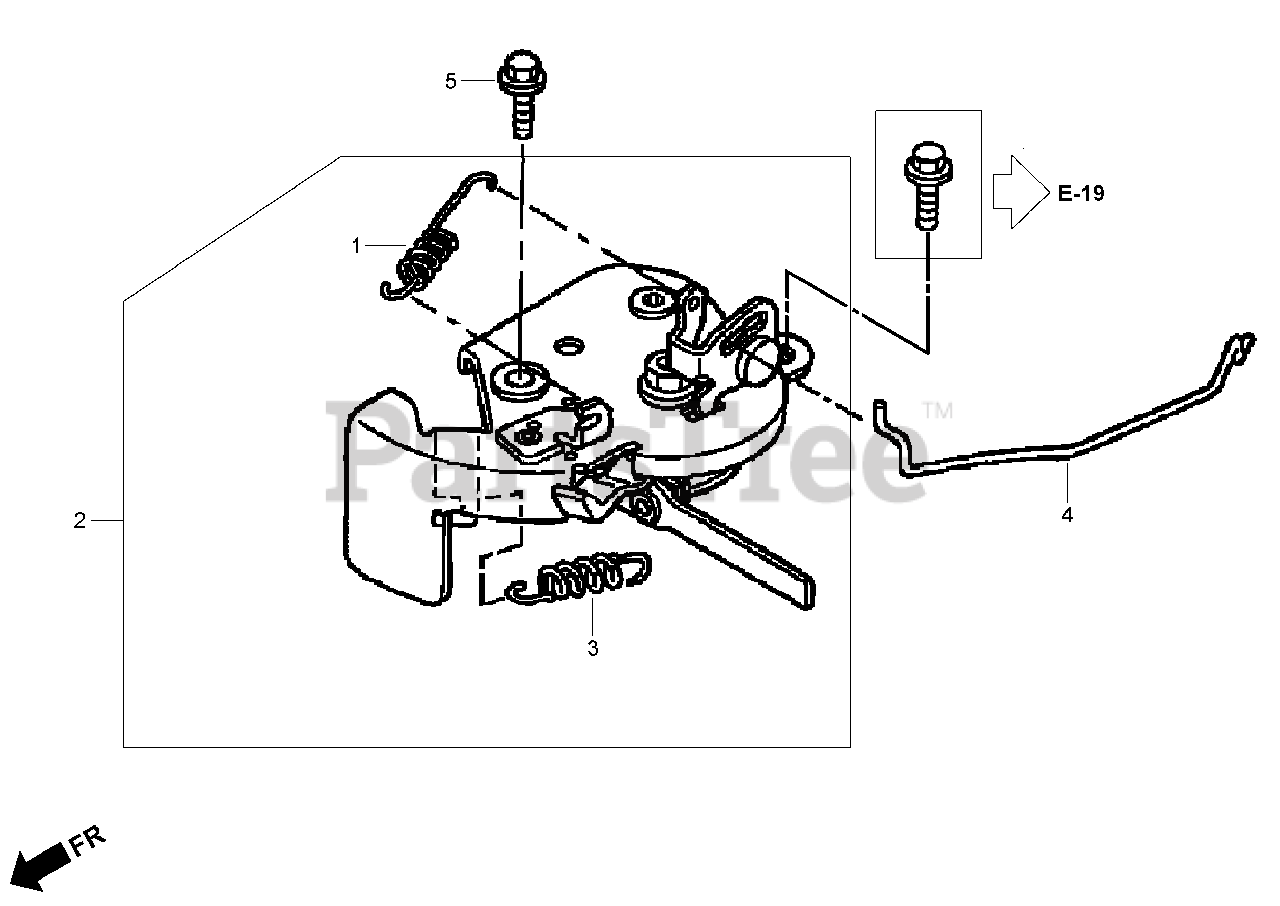

CHOKE LEVER ASSEMBLY HONDA GSV190LA S3A Parts Diagram

  • Title

1

Lawn-Boy 16592-Z2D-800

SPRING-RETURN

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 16610-Z2D-801

CHOKE LEVER ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 16614-Z2D-800

SPRING-LEVER, CHOKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 16632-Z0L-800

ROD-STOP

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 90029-888-000

BOLT-FLANGE (6X16) (C T200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
