22280 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 400000000 - 405399999) Handle Assembly Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

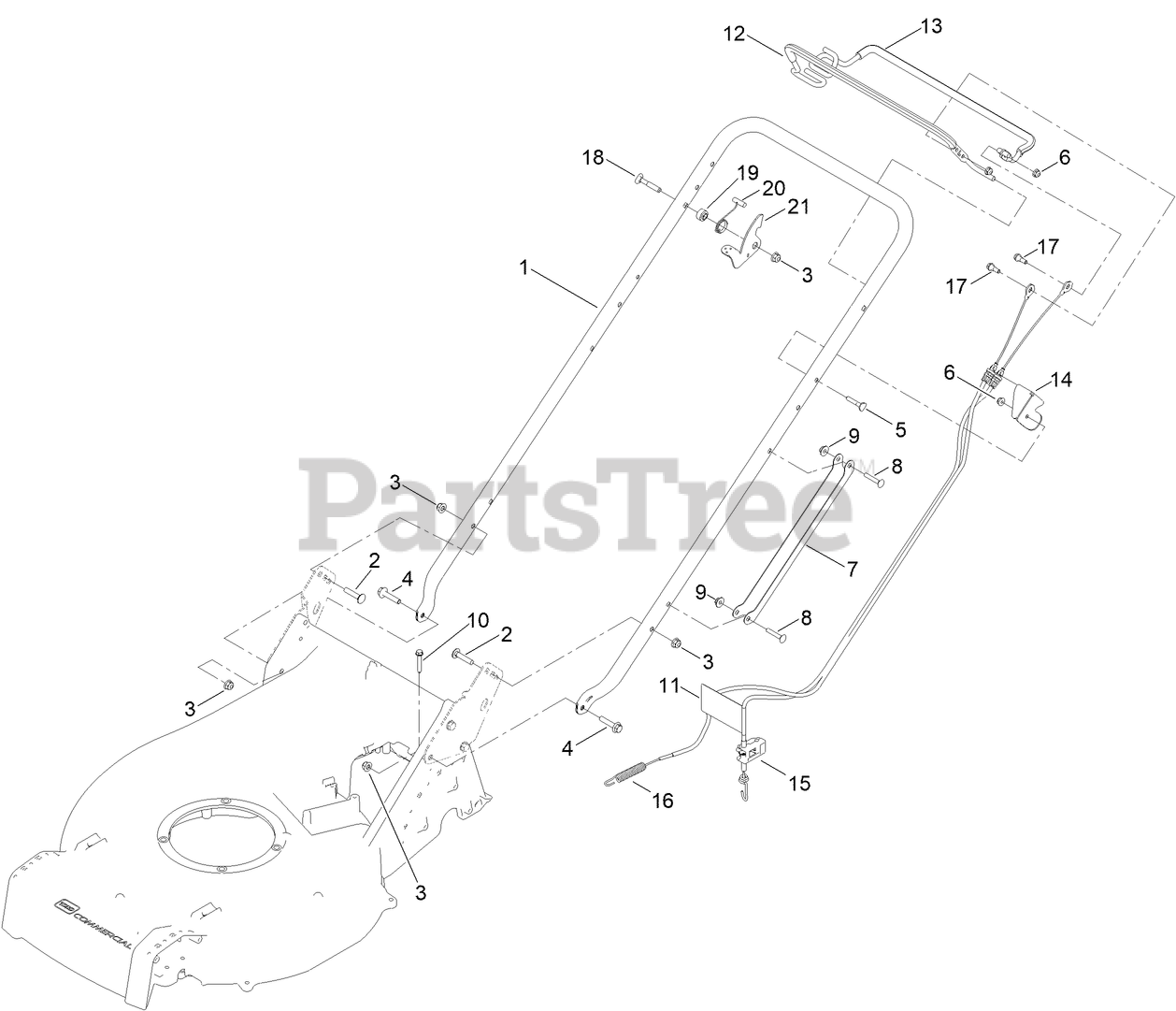

Handle Assembly Parts Diagram

  • Title

1

Toro 137-4817-03

HANDLE

$108.99

$

Usually ships in 3-6 days

0

2

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 9

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 115-1794

SCREW-HHF

$1.99

$

In Stock, Qty 16

0

5

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 13

0

6

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 127-6897-03

GUARD-CABLE, HANDLE

$8.99

$

Usually ships in 3-6 days

0

8

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, Qty 11

0

9

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 94-2691

SCREW-HWH

$1.49

$

In Stock, only 1 left!

0

11

Toro 130-6722

DECAL

$4.49

$

Usually ships in 3-6 days

0

12

Toro 137-4810

BAIL-BBC, COATED

$38.99

$

In Stock, Qty 11

0

13

Toro 139-1815

BAIL-TRACTION, COATED

$37.99

$

In Stock, Qty 8

0

14

Toro 137-4766-03

BRACKET-CABLE

$28.99

$

Usually ships in 3-6 days

0

15

Toro 137-4768

CABLE-TRACTION

$45.99

$

In Stock, Qty 12

0

16

Toro 137-4769

CABLE-BBC

$32.99

$

In Stock, only 3 left!

0

17

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 18

0

18

Toro 112-8876

See Supercession: 92-2260
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

19

Toro 116-2690

BUSHING-STEPPED

$13.99

$

In Stock, only 1 left!

0

20

Toro 109-9318

SPRING-LEVER, BBC

$6.49

$

In Stock, only 1 left!

0

21

Toro 116-2998

LEVER-BBC

$18.99

$

In Stock, only 2 left!

0
