22282 T - Toro 21" Heavy-Duty 60V Recycler Walk-Behind Mower (SN: 408000000 - 999999999) Handle Assembly Parts Diagram

21" Heavy-Duty 60V Recycler Walk-Behind Mower

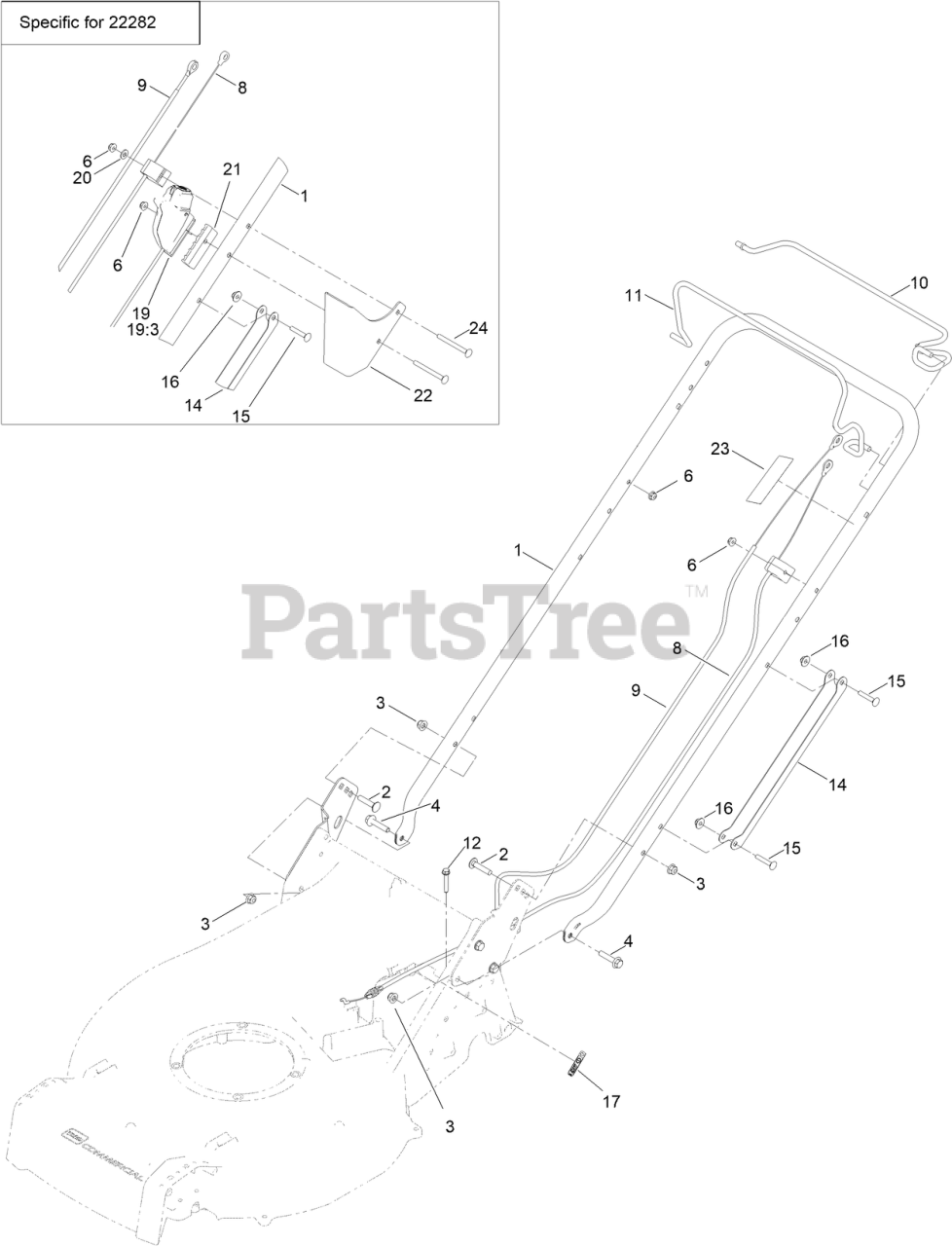

Handle Assembly Parts Diagram

  • Title

1

Toro 137-4817-03

HANDLE

$121.99

$

Usually ships in 3-6 days

0

2

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, only 2 left!

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 5

0

6

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 140-4093

CABLE-BRAKE, 60V

$46.99

$

Usually ships in 3-6 days

0

9

Toro 140-4112

CABLE-TRACTION
(Superseded to 145-1483)

$54.99

$

Usually ships in 3-6 days

0

10

Toro 125-8437-03

BAIL-TRACTION

$25.99

$

In Stock, only 2 left!

0

11

Toro 125-8436-03

BAIL-BRAKE

$29.99

$

Usually ships in 3-6 days

0

12

Toro 94-2691

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 127-6897-03

GUARD-CABLE, HANDLE

$10.99

$

Usually ships in 3-6 days

0

15

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, Qty 10

0

16

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 9

0

17

Toro 131-0822

DECAL

$5.99

$

Usually ships in 3-6 days

0

19

Toro 140-3891

STARTER SWITCH ASM

$43.99

$

Usually ships in 3-6 days

0

19:3

Toro 140-4231

STARTER BUTTON SERVICE ASM

$6.49

$

Usually ships in 3-6 days

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

21

Toro 140-4148

SPACER-HOUSING, SWITCH

$5.99

$

Usually ships in 3-6 days

0

22

Toro 140-4168-03

GUARD-HOUSING, SWITCH

$19.99

$

Usually ships in 3-6 days

0

23

Toro 144-3175

DECAL-CONTROLS (60V START)

$7.49

$

Usually ships in 3-6 days

0

24

Toro 144-6387

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0
