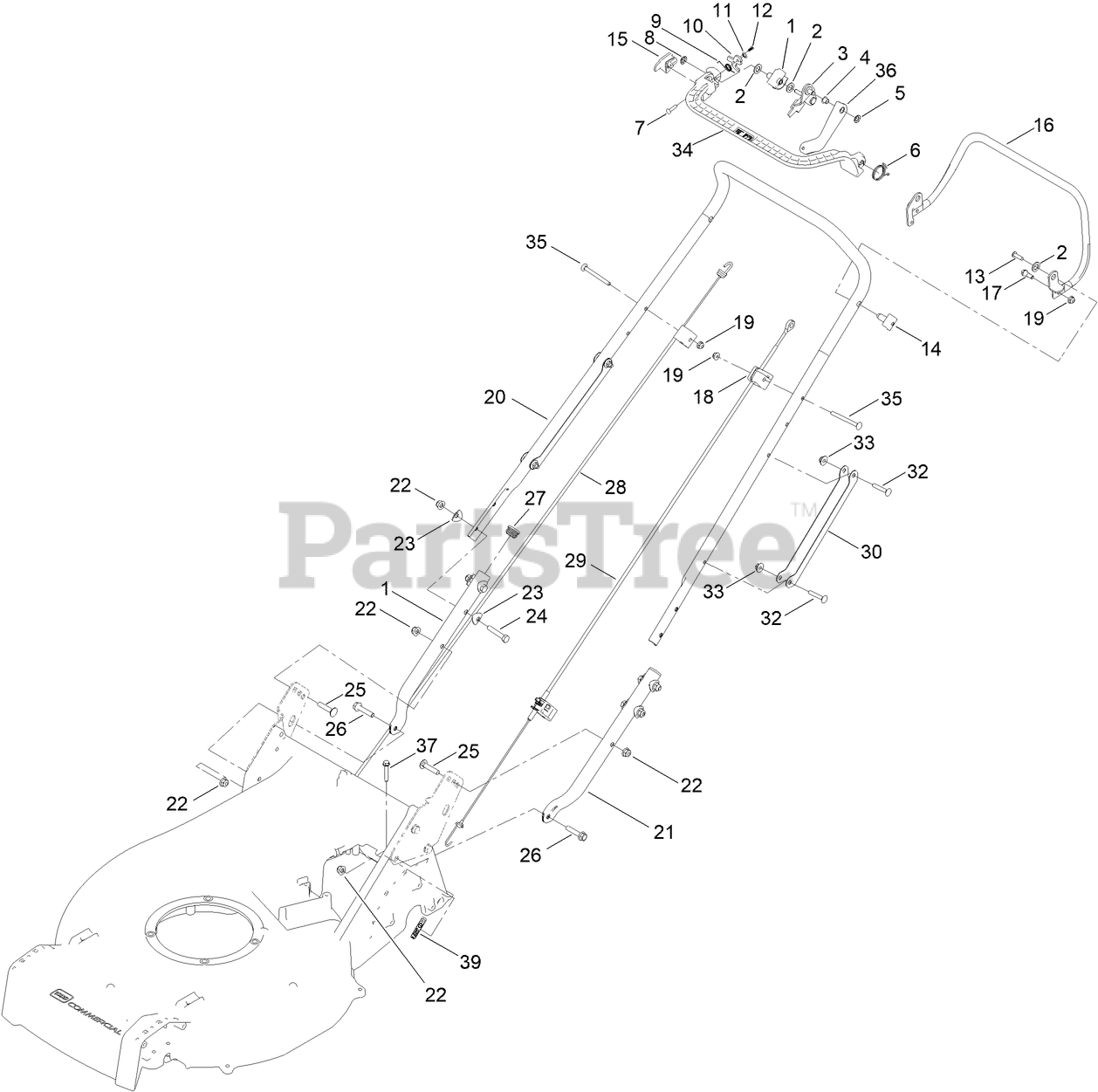

22285 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 400000000 - 415399999) Handle Assembly Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Toro 111-8990

CLAMP-BAR

$

$

Currently unavailable

2

Toro 09688

WASHER-NYLON

$

$

Currently unavailable

3

Toro 134-2660

ANCHOR PLATE WELDED

$

$

Currently unavailable

4

Toro 134-1761

BUSH, IGUS (8 X 9 X 8)

$

$

Currently unavailable

5

Toro 0201086

WASHER-STARLOCK

$

$

Not available

6

Toro 134-2284

LEVER-BAIL ARM, SPRING

$

$

Currently unavailable

7

Toro 111-8908

LATCH-PIN

$

$

Currently unavailable

8

Toro 134-3208

STARLOCK-DOMED

$

$

Currently unavailable

9

Toro 111-8906

LEVER-BAIL, SPRING

$

$

Currently unavailable

10

Toro 111-8903

LEVER-CATCH

$

$

Currently unavailable

11

Toro 111-0718

FASTENER-STARLOCK, PUSH-ON

$

$

Currently unavailable

12

Toro 134-2027

CLIP-TREE

$

$

Currently unavailable

13

Toro 09687

SCREW

$

$

Currently unavailable

14

Toro 340182

PIN-PIVOT

$

$

Currently unavailable

15

Toro 145-4027

BUTTON-LATCH, BBC

$1.49

$

Usually ships in 0 days

0

16

Toro 111-9381-03

LEVER-CLUTCH, GEARBOX

$

$

Currently unavailable

17

Toro 42-3560

BOLT-SHOULDER

$6.49

$

In Stock, Qty 5

0

18

Toro 133-8199

ANCHOR-CABLE

$6.49

$

Usually ships in 3-6 days

0

19

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 145-4022-03

HANDLE-UPPER

$118.99

$

Usually ships in 0 days

0

21

Toro 134-5087-03

LOWER HANDLE

$38.99

$

Usually ships in 3-6 days

0

22

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 137-3009

WASHER-CUP

$0.99

$

In Stock, Qty 19

0

24

Toro 322-39

SCREW-HH
(Superseded to 322-13)

$3.99

$

In Stock, Qty 20+

0

25

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 8

0

26

Toro 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 7

0

27

Toro 144-6379

PLUG-ROUND TUBE, 1 IN.

$4.49

$

Usually ships in 3-6 days

0

28

Toro 145-5850

CABLE-BBC

$38.99

$

Usually ships in 0 days

0

29

Toro 145-1483

CABLE-TRACTION, 60V

$52.99

$

Usually ships in 3-6 days

0

30

Toro 134-5187-03

GUARD-CABLE, HANDLE

$18.99

$

Usually ships in 3-6 days

0

32

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, only 2 left!

0

33

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 14

0

34

Toro 134-2608

ARM-BAIL

$

$

Currently unavailable

35

Toro 92-2270

SCREW-HANDLE

$8.99

$

In Stock, only 1 left!

0

36

Toro 134-2662

BBC LINKAGE ASSEMBLY

$

$

Currently unavailable

37

Toro 94-2691

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

39

Toro 131-0822

DECAL

$5.99

$

Usually ships in 3-6 days

0
