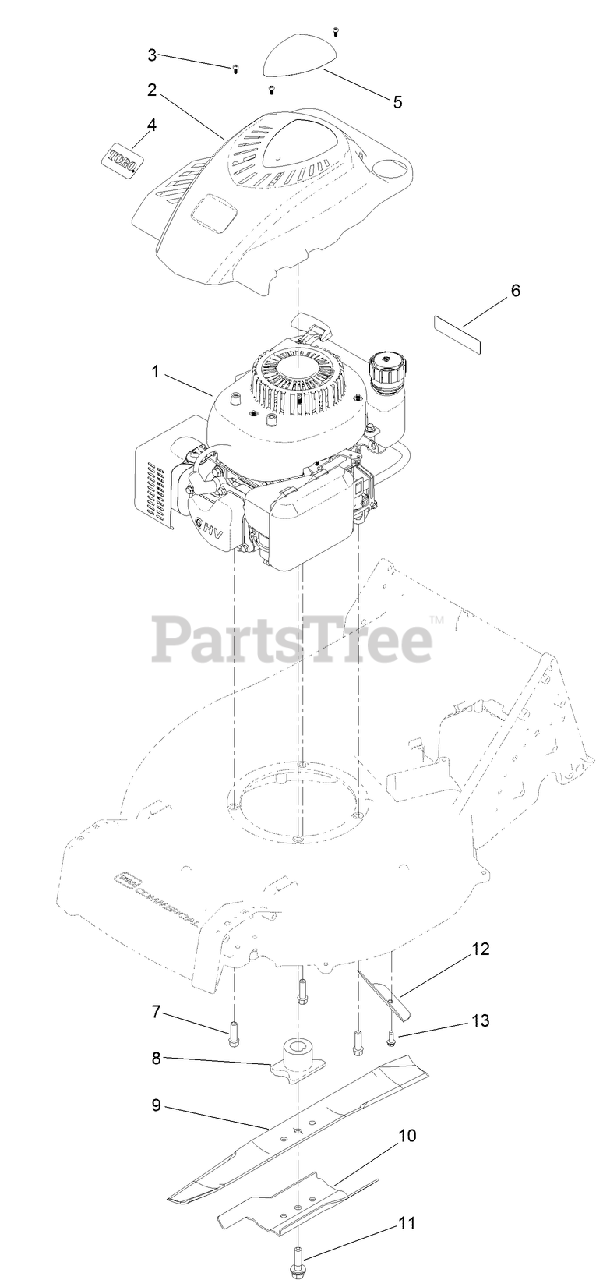

22289 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 402100000 - 404339999) ENGINE AND BLADE ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 120-4411

ENGINE-1P65FC
(Superseded to 139-0607)

$543.99

$

Usually ships in 3-6 days

0

2

Toro 130-9743

SHROUD

$30.99

$

Usually ships in 3-6 days

0

3

Toro 121-4155

SCREW-PPH

$0.99

$

In Stock, Qty 15

0

4

Toro 125-2505

DECAL

$1.99

$

Usually ships in 3-6 days

0

5

Toro 130-9732

DECAL-ENGINE

$12.99

$

Usually ships in 3-6 days

0

6

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

7

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

8

Toro 125-1004

DRIVER-BLADE

$33.99

$

In Stock, Qty 11

0

9

Toro 108-3762-03

BLADE-RECYCLING
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 20+

0

10

Toro 125-1069-03

ACCELERATOR-BLADE

$17.99

$

In Stock, Qty 20+

0

11

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

12

Toro 130-9728-03

SHIELD-GRASS

$9.49

$

Usually ships in 3-6 days

0

13

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0
