22291 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 405400000 - 407869999) Handle Assembly Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

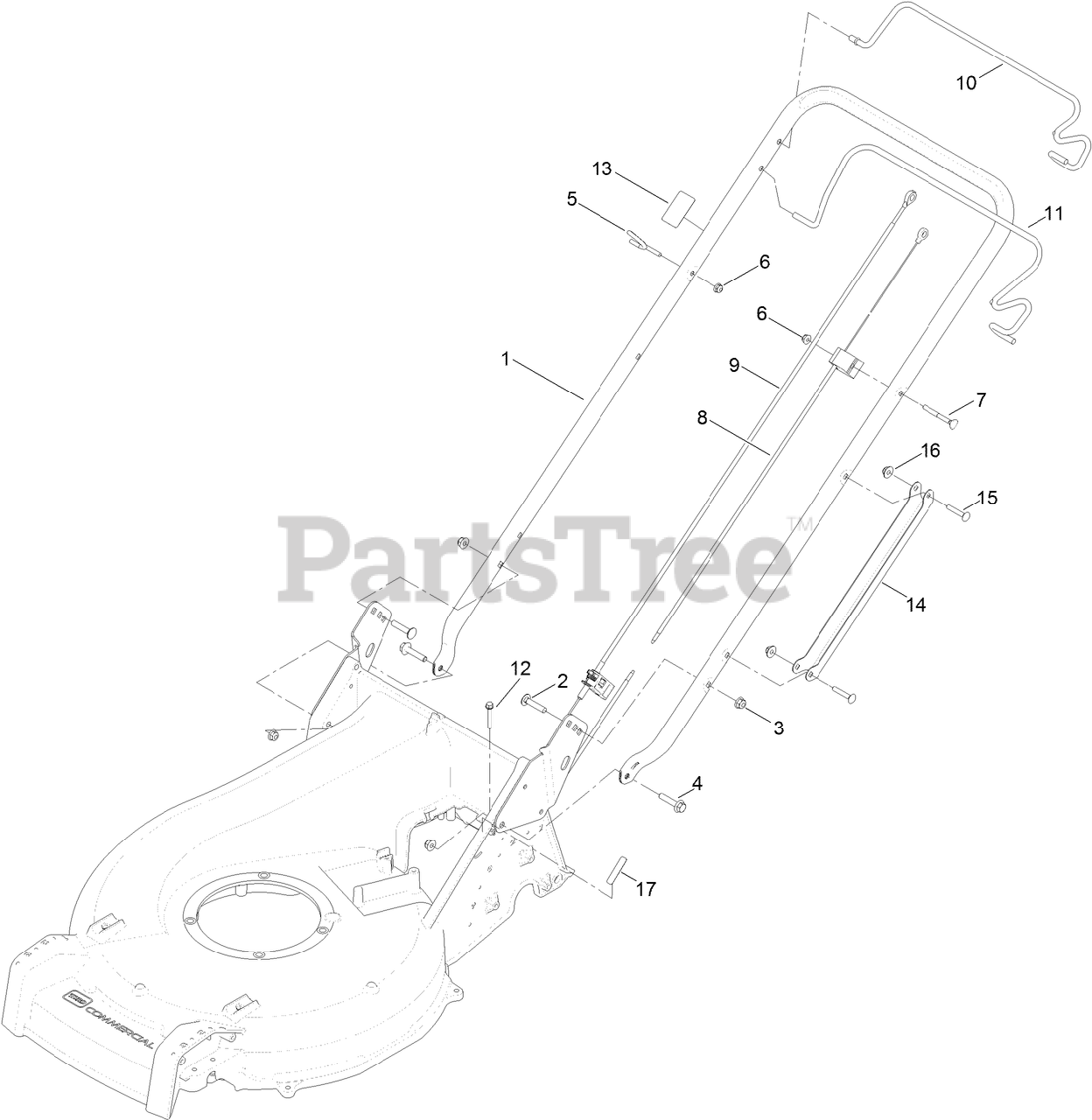

Handle Assembly Parts Diagram

  • Title

1

Toro 125-1015-03

See Supercession: 136-5860-03
(Superseded to 136-5860-03)

$109.99

$

Usually ships in 3-6 days

0

2

Toro 3230-4

BOLT-CARR

$4.49

$

Usually ships in 3-6 days

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 3 left!

0

4

Toro 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 5

0

5

Toro 114-2775

GUIDE-ROPE

$11.99

$

In Stock, only 2 left!

0

6

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 92-2270

SCREW-HANDLE

$9.49

$

In Stock, only 2 left!

0

8

Toro 125-8371

CABLE-BRAKE

$42.99

$

In Stock, only 4 left!

0

9

Toro 125-8372

CABLE-TRACTION

$62.99

$

In Stock, Qty 20+

0

10

Toro 125-8437-03

BAIL-TRACTION

$25.99

$

In Stock, only 2 left!

0

11

Toro 125-8436-03

BAIL-BRAKE

$29.99

$

Usually ships in 3-6 days

0

12

Toro 94-2691

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

13

Toro 125-8404

DECAL-PRIMER

$

$

Currently unavailable

14

Toro 127-6897-03

GUARD-CABLE, HANDLE

$10.99

$

Usually ships in 3-6 days

0

15

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, Qty 10

0

16

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 9

0

17

Toro 131-0822

DECAL

$5.99

$

Usually ships in 3-6 days

0
