22293 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 400000000 - 402019999)

53cm Heavy-Duty Recycler Walk-Behind Mower

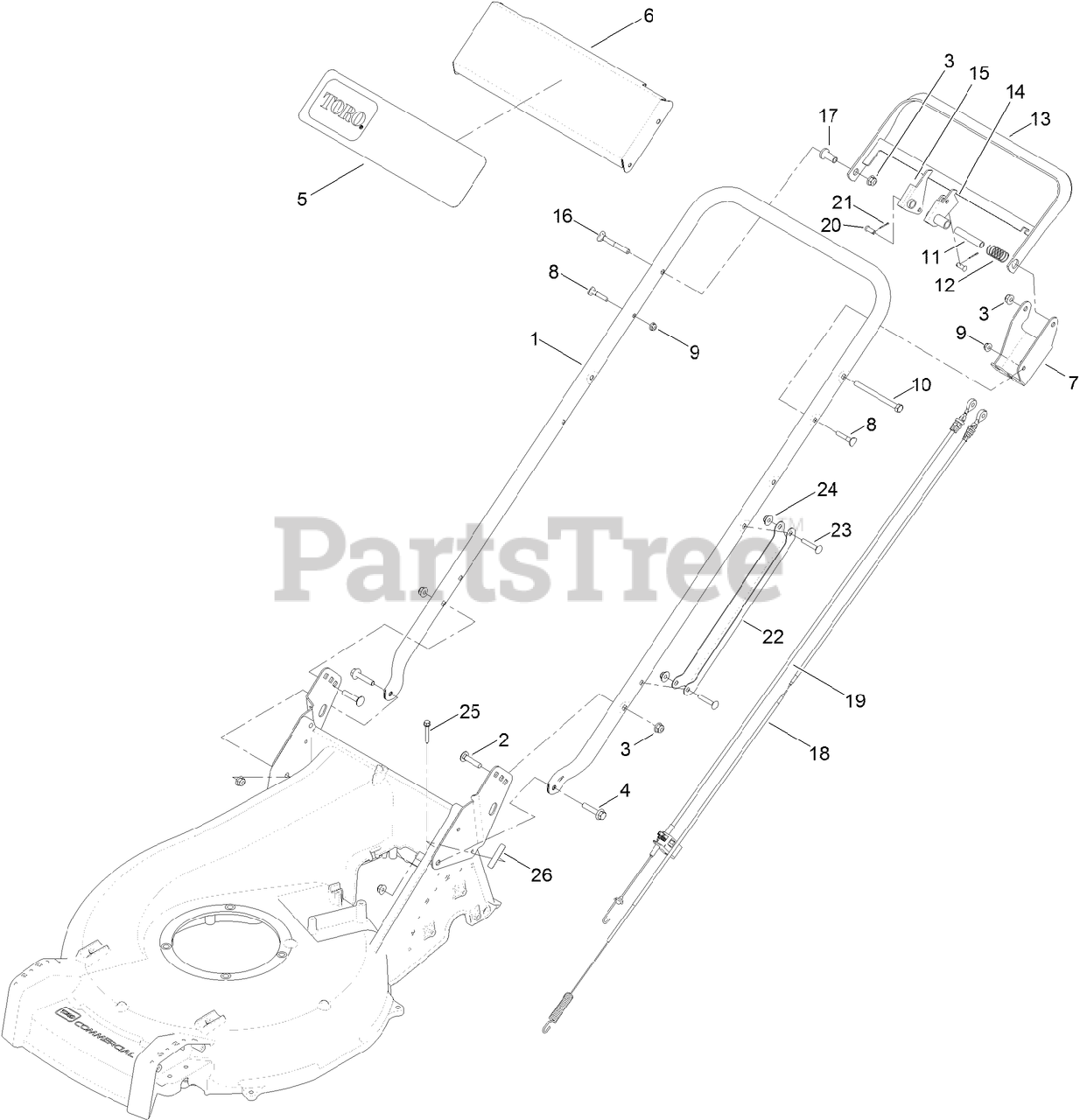

22293 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 400000000 - 402019999) > Parts Diagrams (7) > HANDLE ASSEMBLY

  • Title
125-1016-03

1

HANDLE

Part# 125-1016-03 (Superseded to 136-5861-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $73.02

3230-4

2

BOLT-CARR

Part# 3230-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.93

104-8300

3

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.79

115-1794

4

SCREW-HHF

Part# 115-1794

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.86

125-8422

5

DECAL-TORO, PROLINE

Part# 125-8422

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.08

125-8350-01

6

PANEL-CONTROL

Part# 125-8350-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.33

125-8358-03

7

BRACKET-CONTROL

Part# 125-8358-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.44

117-7737

8

SCREW-HANDLE

Part# 117-7737

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.47

104-7201

9

NUT-HF

Part# 104-7201

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.08

322-19

10

SCREW-HH

Part# 322-19

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.47

125-8424

11

SPACER

Part# 125-8424

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.79

85-6750

12

SPRING-CONTROL

Part# 85-6750

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.82

125-8357-03

13

BAR-CONTROL

Part# 125-8357-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $38.01

125-8352

14

LEVER-CONTROL

Part# 125-8352

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.33

125-8354

15

LEVER-TRACTION

Part# 125-8354

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.33

125-8408

16

SCREW-HANDLE

Part# 125-8408

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.49

125-8359

17

SPACER-FLANGE

Part# 125-8359

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.03

130-9702

18

CABLE-BBC

Part# 130-9702

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.33

130-9703

19

CABLE-TRACTION, BBC

Part# 130-9703

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $36.49

84-9040

20

PIN-CABLE

Part# 84-9040

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.93

3272-1

21

PIN-COTTER

Part# 3272-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.26

127-6897-03

22

GUARD-CABLE, HANDLE

Part# 127-6897-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.04

108-0988

23

SCREW-CARR

Part# 108-0988

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.63

114-3778

24

NUT-HF

Part# 114-3778

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

94-2691

25

SCREW-HWH

Part# 94-2691

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.26

131-0822

26

DECAL

Part# 131-0822

OEM Warranty Repair Part for Toro

Currently unavailable
