22295 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 413000000 - 415299999) Engine and Blade Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

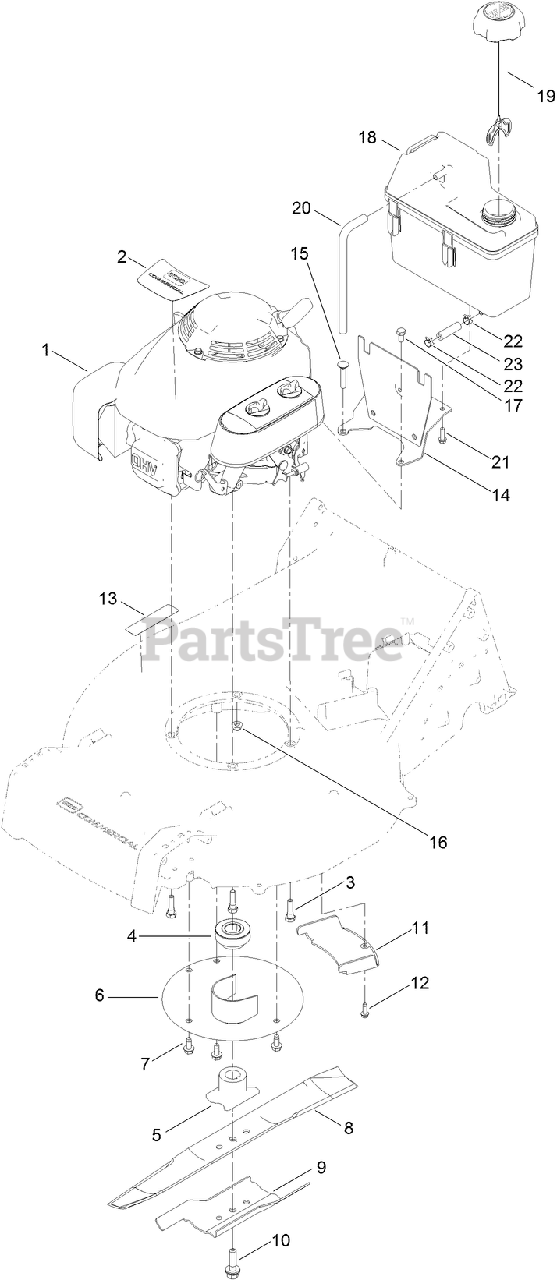

Engine and Blade Assembly Parts Diagram

  • Title

1

ENGINE-HONDA, GXV160UH2 A1TT

Note: Not serviced separately

$

$

Not available

1

ENGINE-HONDA, GXV160UH2 A1TT

Note: This is a Honda part. Please use the Honda Engines catalog.

$

$

Not available

2

Toro 125-8405

DECAL-ENGINE, HONDA

$7.99

$

In Stock, Qty 6

0

3

Toro 125-1074

SCREW-HHSH

$3.99

$

In Stock, only 4 left!

0

4

Toro 125-8396

PULLEY-DRIVER

$53.99

$

In Stock, only 1 left!

0

5

Toro 125-1004

DRIVER-BLADE

$37.99

$

In Stock, only 2 left!

0

6

Toro 125-8370

PROTECTOR-CRANKSHAFT

$115.99

$

In Stock, only 2 left!

0

7

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

8

Toro 133-8183-03

BLADE-21IN, RECYCLING

$23.99

$

In Stock, Qty 20+

0

9

Toro 125-1069-03

ACCELERATOR-BLADE

$18.99

$

In Stock, only 2 left!

0

10

Toro 125-2466

BOLT-BLADE

$3.99

$

In Stock, Qty 20+

0

11

Toro 125-1024

COVER-BELT

$12.99

$

Usually ships in 3-6 days

0

12

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Toro 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

14

Toro 119-7837-03

MOUNT-TANK

$79.99

$

Usually ships in 3-6 days

0

15

Toro 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 3210-2

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

18

Toro 114-0280

TANK-FUEL

$158.99

$

In Stock, only 2 left!

0

19

Toro 137-4127

CAP-FUEL

$25.99

$

In Stock, Qty 14

0

20

Toro 115-0962

HOSE-VENT, CANISTER

$10.99

$

In Stock, Qty 5

0

21

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

22

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

23

Toro 119-7856

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0
