22296 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 410200000 - 412799999) Handle and Control Assembly Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

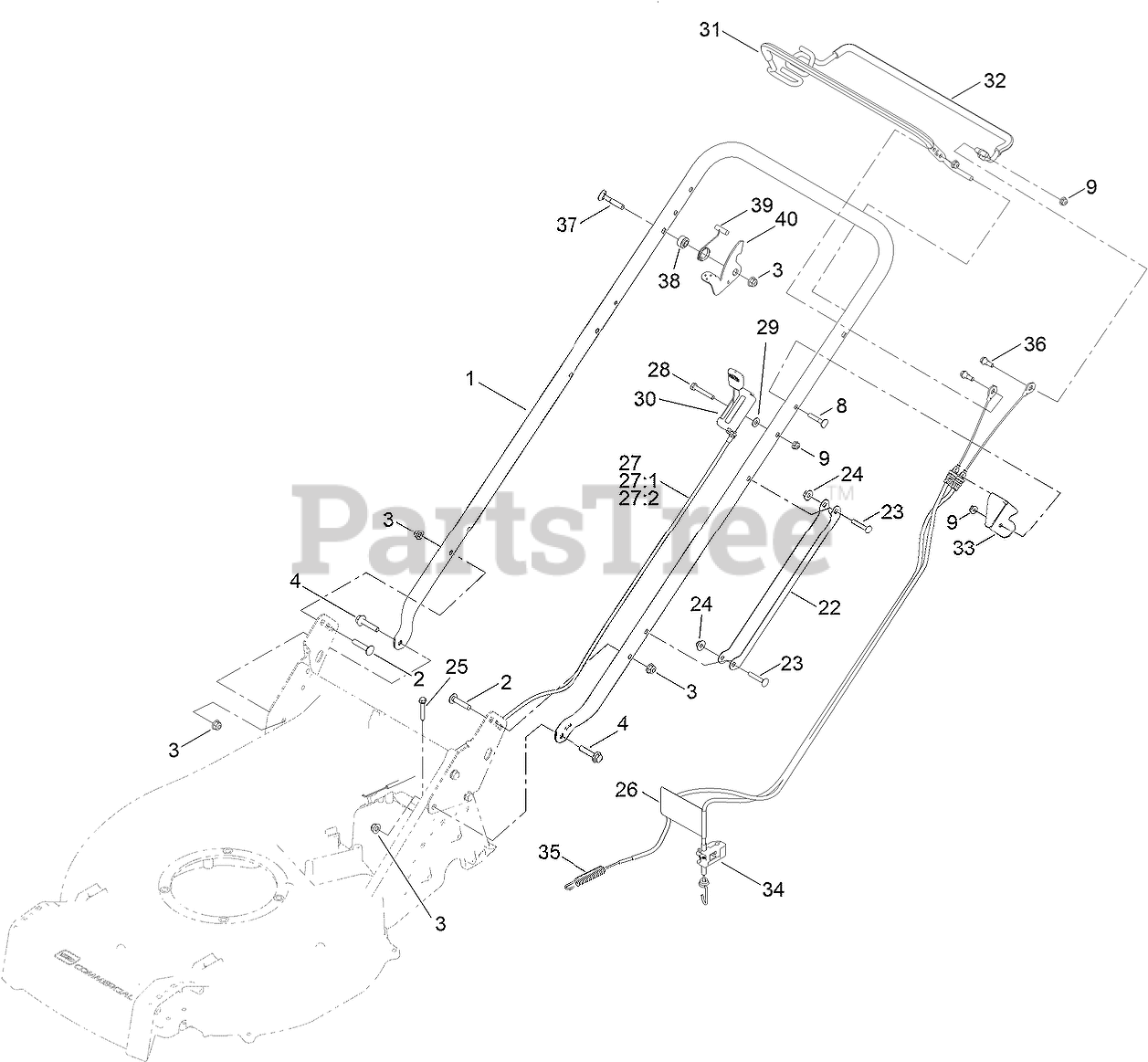

Handle and Control Assembly Parts Diagram

  • Title

1

Toro 137-4817-03

HANDLE

$118.99

$

Usually ships in 3-6 days

0

2

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 10

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 7

0

8

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 10

0

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 127-6897-03

GUARD-CABLE, HANDLE

$10.99

$

Usually ships in 3-6 days

0

23

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

24

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 14

0

25

Toro 94-2691

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

26

Toro 130-6722

DECAL

$5.49

$

Usually ships in 3-6 days

0

27

Toro 125-8374

CONTROL-THROTTLE/CHOKE

$60.99

$

In Stock, Qty 20+

0

27:1

Toro 130-6400

CABLE-THROTTLE

$37.99

$

In Stock, Qty 12

0

27:2

Toro 130-6401

CONTROL-THROTTLE

$54.99

$

Usually ships in 3-6 days

0

28

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 130-9656

DECAL-THROTTLE, CHOKE

$3.49

$

In Stock, only 3 left!

0

31

Toro 137-4810

BAIL-BBC, COATED

$42.99

$

In Stock, Qty 20+

0

32

Toro 139-1815

BAIL-TRACTION, COATED

$41.99

$

In Stock, Qty 20+

0

33

Toro 137-4766-03

BRACKET-CABLE

$29.99

$

Usually ships in 3-6 days

0

34

Toro 137-4768

CABLE-TRACTION

$51.99

$

In Stock, Qty 15

0

35

Toro 137-4769

CABLE-BBC

$36.99

$

In Stock, Qty 20+

0

36

Toro 42-3560

BOLT-SHOULDER

$6.49

$

In Stock, Qty 8

0

37

Toro 112-8876

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

38

Toro 116-2690

BUSHING-STEPPED

$14.99

$

In Stock, only 3 left!

0

39

Toro 109-9318

SPRING-LEVER, BBC

$6.99

$

In Stock, Qty 16

0

40

Toro 116-2998

LEVER-BBC

$19.99

$

In Stock, only 2 left!

0
