22300 (222) - Toro Dingo Compact Utility Loader (SN: 089000001 - 089999999) (1998) FRAME AND LOADER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

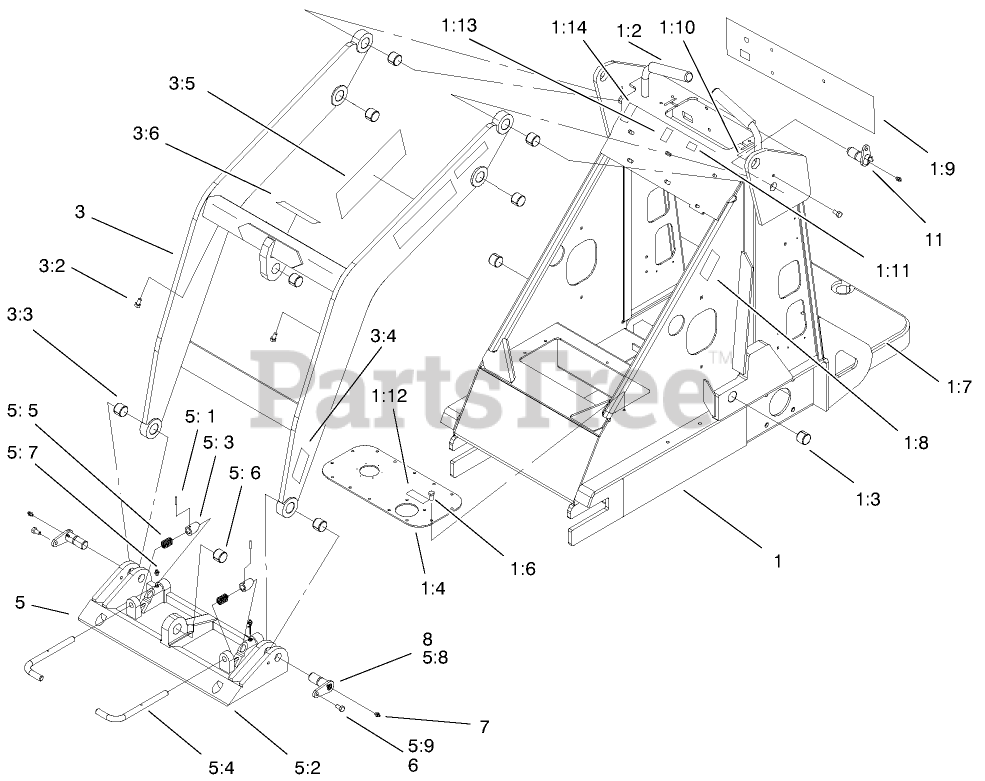

FRAME AND LOADER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 99-3252

FRAME-ASM

$

$

Not available

1:2

Toro 99-3251

GRIP-CUSHION

$

$

Not available

1:3

Toro 98-4871

BUSHING-TENSION

$22.99

$

In Stock, only 2 left!

0

1:4

Toro 99-3253

COVER HYD

$

$

Not available

1:6

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 11

0

1:7

Toro 98-9947

TREAD-FOOT

$34.99

$

Usually ships in 3-6 days

0

1:8

Toro 80-8010

DECAL-WARNING, KEEP HANDS AWAY

$21.99

$

Usually ships in 3-6 days

0

1:9

Toro 99-1385

DECAL-PANEL, INSTRUMENT

$66.99

$

Usually ships in 3-6 days

0

1:10

Toro 98-8219

DECAL-THROTTLE

$17.99

$

In Stock, only 1 left!

0

1:11

Toro 98-8220

DECAL-LIMITER, SPEED

$18.99

$

Usually ships in 3-6 days

0

1:12

Toro 85-4730

DECAL-ONLY, HYD OIL

$2.99

$

Usually ships in 3-6 days

0

1:13

Toro 98-8235

DECAL-SELECTOR

$17.99

$

Usually ships in 3-6 days

0

1:14

Toro 98-4677

DECAL-POWER, AUXILIARY

$7.49

$

Usually ships in 3-6 days

0

3

Toro 99-1354

Loader ASM
(Superseded to 106-8155)

$2282.99

$

Usually ships in 3-6 days

0

3:2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3:3

Toro 98-4871

BUSHING-TENSION

$22.99

$

In Stock, only 2 left!

0

3:4

Toro 80-8010

DECAL-WARNING, KEEP HANDS AWAY

$21.99

$

Usually ships in 3-6 days

0

3:5

Toro 98-9051

DECAL-DANGER

$33.99

$

In Stock, only 1 left!

0

3:6

Toro 98-4682

DECAL-CAUTION

$22.99

$

Usually ships in 3-6 days

0

5

Toro 98-4690

QUICK ATTACH ASM
(Superseded to 132-8418)

$1402.99

$

Usually ships in 3-6 days

0

5:1

Toro 32121-94

PIN-SPECIAL

$

$

Not available

5:2

Toro 98-4691

Mount-Quick Attach
(Superseded to 130-7708-03)

$1232.99

$

Usually ships in 3-6 days

0

5:3

Toro 98-4692

CAM-ATTACH, QUICK

$

$

Not available

5:4

Toro 98-4693

Pin-Quick Attach
(Superseded to 100-3373)

$50.99

$

Usually ships in 3-6 days

0

5:5

Toro 98-4694

SPRING-COMPRESSION

$11.99

$

In Stock, only 2 left!

0

5:6

Toro 98-4871

BUSHING-TENSION

$22.99

$

In Stock, only 2 left!

0

5:7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 11

0

5:8

Toro 99-1414

PIN-PIVOT
(Superseded to 112-2609)

$105.99

$

In Stock, only 2 left!

0

5:9

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, only 3 left!

0

6

Toro 48-7700

SCREW-HH
(Superseded to 33114-016)

$0.99

$

In Stock, Qty 8

0

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 11

0

8

Toro 99-3045

ASM - PIVOT PIN, AU

$

$

Not available

11

Toro 98-4716

PIN-PIVOT

$

$

Not available
