22300 (222) - Toro Dingo Compact Utility Loader (SN: 089000001 - 089999999) (1998) HYDRAULIC VALVE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

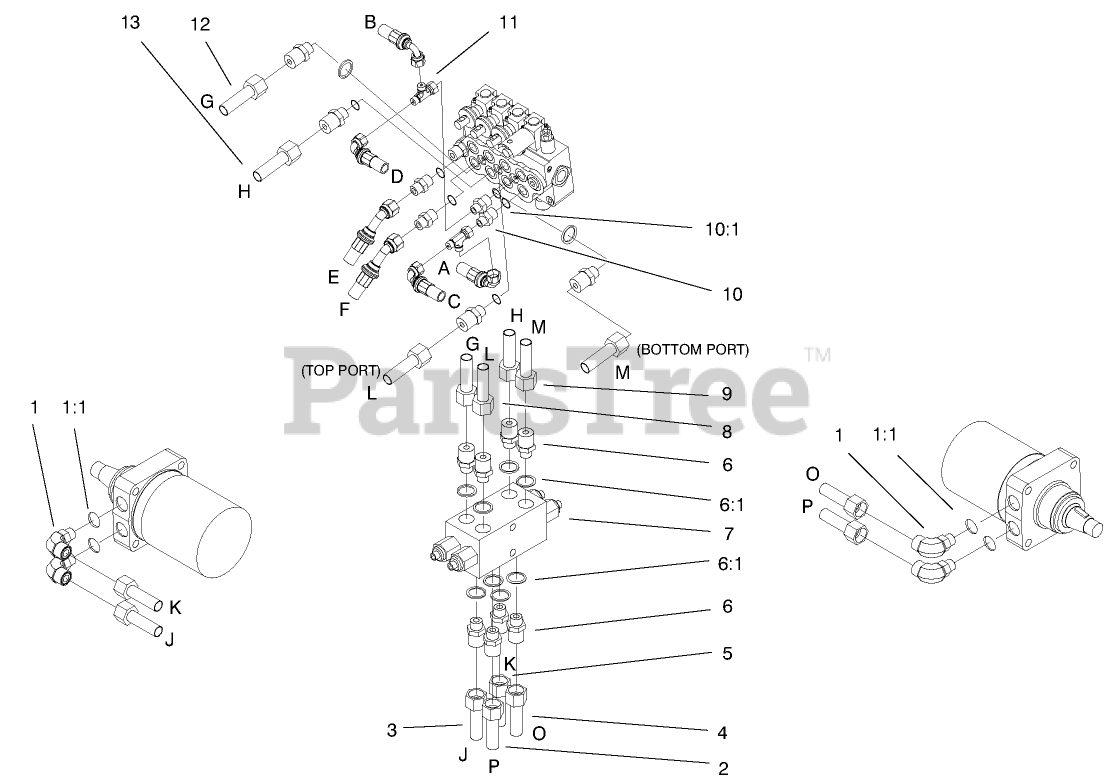

HYDRAULIC VALVE ASSEMBLY Parts Diagram

  • Title

1

Toro 353-370

FITTING-ELBOW, 90 DEG

$75.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

2

Toro 99-5054

TUBE-HYD

$

$

Not available

3

Toro 99-5053

TUBE-HYD

$

$

Not available

4

Toro 99-5050

TUBE-HYD

$

$

Not available

5

Toro 99-5056

TUBE-HYD

$

$

Not available

6

Toro 353-388

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

7

Toro 99-3279

VALVE-COUNTERBALANCE

$

$

Not available

7:1

Toro 98-2712

SEAL KIT
(Superseded to 105-4099)

Note: Not illustrated

$66.99

$

Usually ships in 3-6 days

0

8

Toro 99-5055

TUBE-HYD

$

$

Not available

9

Toro 99-5051

TUBE-HYD

$

$

Not available

10

Toro 99-5074

FITTING

$33.99

$

Usually ships in 3-6 days

0

10:1

Toro 99-5075

O-RING

$1.99

$

Usually ships in 3-6 days

0

11

Toro 99-5076

CONNECTOR-SWIVEL

$

$

Not available

12

Toro 99-5052

TUBE-HYD

$213.99

$

Usually ships in 3-6 days

0

13

Toro 99-5057

TUBE-HYD

$178.99

$

Usually ships in 3-6 days

0
