22302 (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) ELECTRICAL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

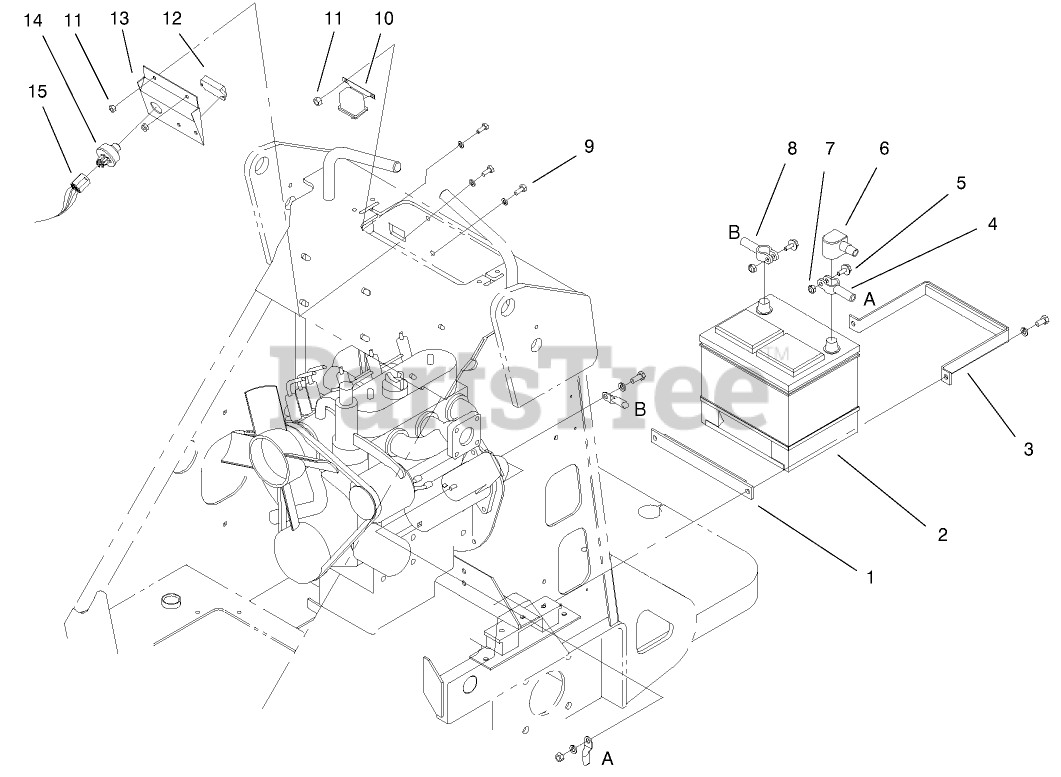

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 99-3153

PLATE-BATTERY MOUNT

$

$

Not available

2

Battery

Note: Obtain Locally

$

$

Not available

3

Toro 99-3159

BRACKET-BATTERY

$

$

Not available

4

Toro 100-2081

CABLE-POS

$219.99

$

Usually ships in 3-6 days

0

5

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

6

Toro 77-0981

BOOT-TERMINAL, RED

$16.99

$

Usually ships in 3-6 days

0

7

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

8

Toro 100-2082

CABLE-NEG

$

$

Not available

9

Toro 48-7630

SCREW
(Superseded to 33113-020)

$0.99

$

In Stock, Qty 11

0

10

Toro 100-2078

BUZZER

$

$

Not available

11

Toro 48-7890

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

12

Toro 99-3143

Tachometer

$

$

Not available

13

Toro 99-3142

Bracket

$

$

Currently unavailable

14

Toro 100-1985

ASSY SWITCH, STARTER

$

$

Not available

15

Toro 100-4698

HARNESS-ELECTRICAL

$

$

Not available
