22302 (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) HEAD COVER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

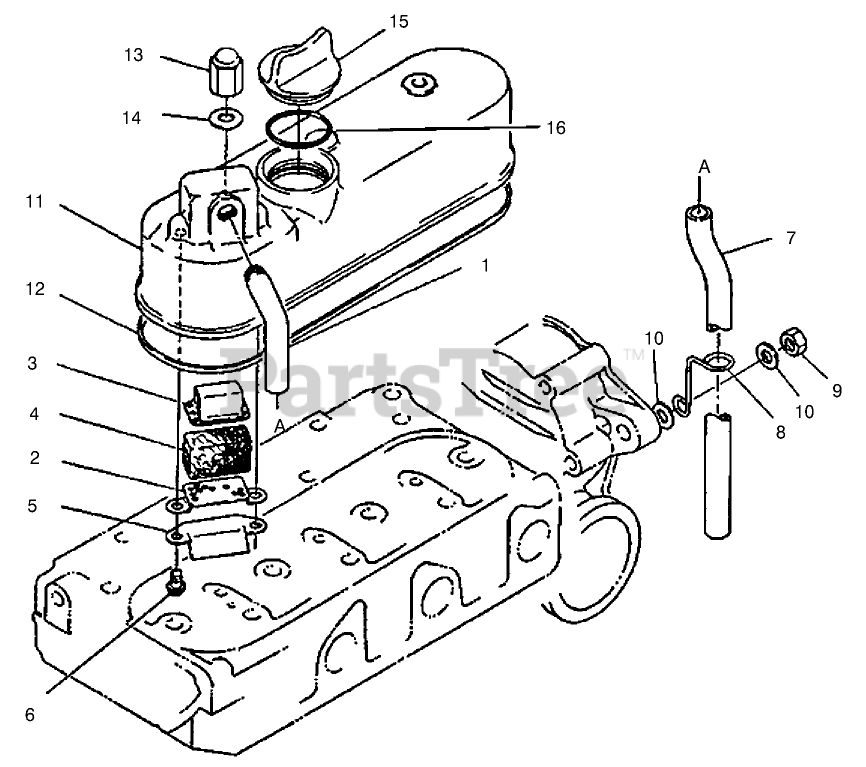

HEAD COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1972

JOINT-PIPE, BREATHER

$

$

Not available

2

Toro 100-1877

PLATE-ELEMENT

$

$

Not available

3

Toro 100-1878

PLATE-ELEMENT

$

$

Not available

4

Toro 100-1881

ELEMENT-BREATHER

$

$

Not available

5

Toro 100-1879

BREATHER-SHIELD, OIL

$

$

Not available

6

Toro 100-2040

SCREW

$8.99

$

Usually ships in 3-6 days

0

6

Toro 98-9364

SCREW (WITH WASHER)

$0.99

$

Usually ships in 3-6 days

0

7

Toro 100-1880

PIPE-BREATHER

$

$

Not available

8

Toro 100-1973

CLAMP-PIPE

$

$

Not available

9

Toro 98-7739

NUT

$1.99

$

Usually ships in 3-6 days

0

10

Toro 98-7660

WASHER-PLAIN

$0.99

$

In Stock, only 4 left!

0

11

Toro 100-2028

COVER, CYL. HEAD (S/N 384779)

$

$

Not available

11

Toro 100-2029

COVER-HEAD, CYLINDER

$

$

Not available

12

Toro 100-2030

GASKET-COVER, HEAD

$19.99

$

Usually ships in 3-6 days

0

13

Toro 98-7655

NUT-CAP

$8.49

$

Usually ships in 3-6 days

0

14

Toro 98-7654

GASKET

$14.99

$

Usually ships in 3-6 days

0

15

Toro 98-9449

PLUG-FILLER, OIL
(Superseded to 107-9075)

$10.99

$

In Stock, Qty 6

0

16

Toro 98-7430

O-RING

$3.49

$

Usually ships in 3-6 days

0
