22302 (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) HYDRAULIC ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

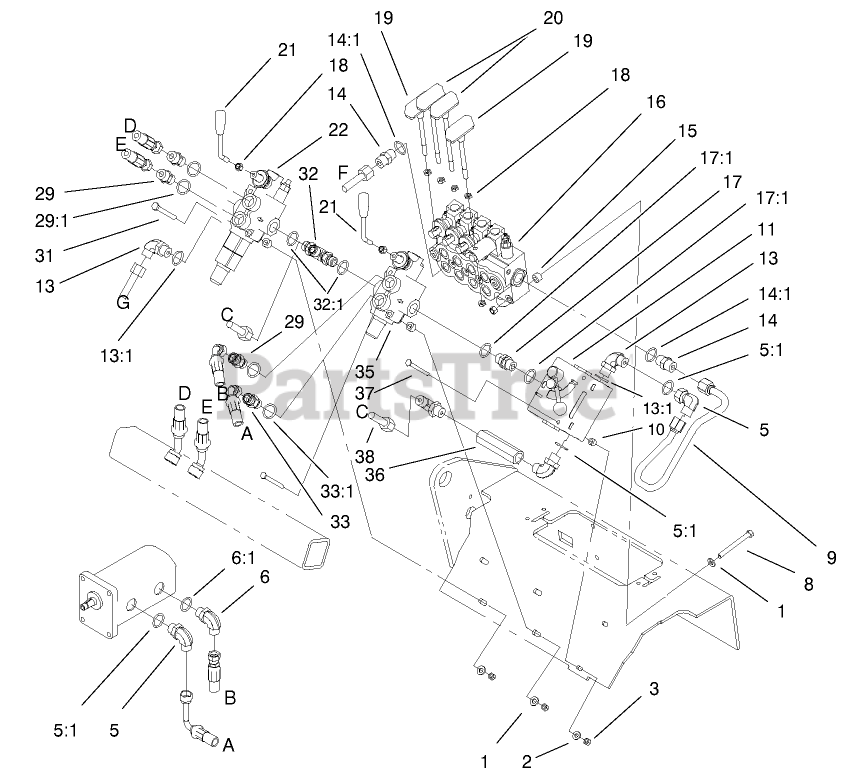

HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 99-3291

ADAPTER

$

$

Not available

5:1

Toro 99-5078

O-RING

$1.99

$

In Stock, only 3 left!

0

6

Toro 99-5072

ADAPTOR - 90 DEG

$

$

Not available

6:1

Toro 99-5075

O-RING

$1.99

$

Usually ships in 3-6 days

0

8

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

9

Toro 99-5059

TUBE-HYD

$163.99

$

Usually ships in 3-6 days

0

10

Toro 98-4799

SPACER

$7.49

$

In Stock, only 2 left!

0

11

Toro 99-3277

VALVE - HYD, FLOW

$

$

Not available

11:1

Toro 99-3298

SEAL KIT - VALVE

Note: Not illustrated

$

$

Not available

11:2

Toro 98-9098

HANDLE HARDWARE KIT

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0

13

Toro 99-5079

ADAPTOR - 90 DEG

$

$

Not available

13:1

Toro 99-5078

O-RING

$1.99

$

In Stock, only 3 left!

0

14

Toro 99-5081

FITTING-STRAIGHT

$

$

Not available

14:1

Toro 99-5078

O-RING

$1.99

$

In Stock, only 3 left!

0

15

Toro 98-4695

SPACER

$7.99

$

Usually ships in 3-6 days

0

16

Toro 99-3275

VALVE - HYD, 4-SPOOL

$5996.99

$

Usually ships in 3-6 days

0

16:1

Toro 98-4720

SEAL KIT

Note: Not illustrated

$

$

Not available

17

Toro 99-5080

CONNECTOR-STRAIGHT ADJ.

$

$

Not available

17:1

Toro 99-5078

O-RING

$1.99

$

In Stock, only 3 left!

0

18

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

19

Toro 98-4671

CYLINDER HANDLE ASM

$31.99

$

In Stock, only 1 left!

0

19

Toro 98-4722

LEVER - VALVE

Note: Not illustrated

$42.99

$

Usually ships in 3-6 days

0

20

Toro 98-4670

DRIVE HANDLE ASM

$

$

Not available

20

Toro 98-4723

LEVER - VALVE

Note: Not illustrated

$

$

Not available

21

Toro 98-4729

LEVER-VALVE

$80.99

$

In Stock, only 1 left!

0

22

Toro 99-3274

VALVE-HYD, AUX.

$

$

Not available

22:1

Toro 98-4721

SEAL KIT
(Superseded to 99-4390)

Note: Not illustrated

$142.99

$

Usually ships in 3-6 days

0

29

Toro 99-5082

FITTING-STRAIGHT

$

$

Not available

29:1

Toro 99-5075

O-RING

$1.99

$

Usually ships in 3-6 days

0

30

Toro 99-3098

BRACKET-AUX.

$138.99

$

Usually ships in 3-6 days

0

31

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 17

0

32

Toro 99-5090

ADAPTER-TEE ADJUSTABLE

$

$

Not available

32:1

Toro 99-5078

O-RING

$1.99

$

In Stock, only 3 left!

0

33

Toro 99-5073

FITTING

$

$

Not available

33:1

Toro 99-5075

O-RING

$1.99

$

Usually ships in 3-6 days

0

35

Toro 99-3276

VALVE - HYD, SELECTOR

$

$

Not available

35:1

Toro 98-4721

SEAL KIT
(Superseded to 99-4390)

Note: Not illustrated

$142.99

$

Usually ships in 3-6 days

0

36

Toro 99-5077

VALVE-INLINE CHECK

$

$

Not available

37

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

38

Toro 99-5058

TUBE-HYD

$248.99

$

Usually ships in 3-6 days

0
