22302 TE (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) PISTON AND CRANKSHAFT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

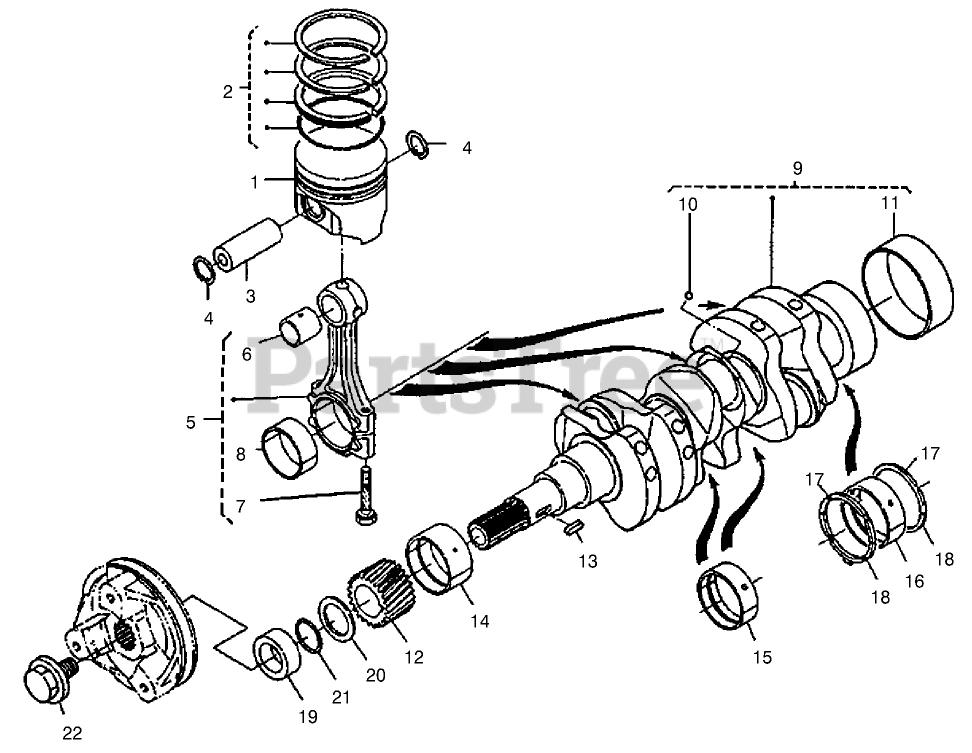

PISTON AND CRANKSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1994

PISTON (STD)

$115.99

$

Usually ships in 3-6 days

0

1

Toro 100-1996

PISTON (+0.25MM)

$71.99

$

Usually ships in 3-6 days

0

2

Toro 100-1992

Assy Piston Ring (STD.)
(Superseded to 100-2158)

$98.99

$

Usually ships in 3-6 days

0

2

Toro 100-1993

ASSY PISTON RING (+0.25 MM)
(Superseded to 100-2159)

$105.99

$

Usually ships in 3-6 days

0

3

Toro 100-1995

PIN-PISTON
(Superseded to 110-3734)

$29.99

$

Usually ships in 3-6 days

0

4

Toro 100-1835

CIRCLIP-INTERNAL

$3.49

$

Usually ships in 3-6 days

0

5

Toro 100-1998

CONNECTING ROD ASM
(Superseded to 125-9070)

$618.99

$

Usually ships in 3-6 days

0

6

Toro 100-1997

BUSH-PIN, PISTON

$5.99

$

Usually ships in 3-6 days

0

7

Toro 100-1999

BOLT-ROD, CONNECTING

$20.99

$

Usually ships in 3-6 days

0

8

Toro 100-1942

METAL-CRANKPIN (-0.20mm)
(Superseded to 121-3849)

$60.99

$

Usually ships in 3-6 days

0

8

Toro 100-1943

METAL-CRANKPIN (-0.40mm)
(Superseded to 121-2420)

$56.99

$

Usually ships in 3-6 days

0

8

Toro 100-2000

METAL-CRANKPIN (STD)

$54.99

$

Usually ships in 3-6 days

0

9

Toro 100-2042

COMP. CRANKSHAFT

$

$

Not available

10

Toro 100-1791

BALL

$2.49

$

Usually ships in 3-6 days

0

11

Toro 100-2054

SLEEVE-CRANKSHAFT

$33.99

$

Usually ships in 3-6 days

0

12

Toro 100-1891

GEAR-CRANKSHAFT

$108.99

$

Usually ships in 3-6 days

0

13

Toro 100-1752

KEY-FEATHER

$4.49

$

Usually ships in 3-6 days

0

14

Toro 100-1944

CRANKSHAFT-METAL (STD)

$14.99

$

Usually ships in 3-6 days

0

14

Toro 100-1947

CRANKSHAFT-METAL (-0.2MM)

$15.99

$

Usually ships in 3-6 days

0

14

Toro 100-1948

CRANKSHAFT-METAL (-0.4MM)

$15.99

$

Usually ships in 3-6 days

0

15

Toro 100-1870

CRANKSHAFT-METAL (-0.2MM SET)

$15.99

$

Usually ships in 3-6 days

0

15

Toro 100-1871

CRANKSHAFT-METAL (-0.4MM SET)

$15.99

$

Usually ships in 3-6 days

0

15

Toro 100-2032

CRANKSHAFT-METAL (STD SET)

$49.99

$

Usually ships in 3-6 days

0

16

Toro 100-1945

CRANKSHAFT-METAL (-0.2MM SET)

$32.99

$

Usually ships in 3-6 days

0

16

Toro 100-1946

CRANKSHAFT-METAL (-0.4MM SET)

$16.99

$

Usually ships in 3-6 days

0

16

Toro 100-2033

CRANKSHAFT-METAL (STD SET)

$22.99

$

Usually ships in 3-6 days

0

17

Toro 100-1836

METAL-SIDE (STD)

$17.99

$

Usually ships in 3-6 days

0

17

Toro 100-1838

METAL-SIDE (+0.20MM)

$

$

Not available

17

Toro 100-1839

METAL-SIDE (+0.40MM)

$7.49

$

Usually ships in 3-6 days

0

18

Toro 100-1837

METAL-SIDE (STD)
(Superseded to 117-0309)

$25.99

$

Usually ships in 3-6 days

0

18

Toro 100-1840

METAL-SIDE (+0.2MM)

$

$

Not available

18

Toro 100-1841

METAL-SIDE (+0.4MM)

$11.99

$

Usually ships in 3-6 days

0

19

Toro 100-1890

COLLAR-CRANKSHAFT

$80.99

$

Usually ships in 3-6 days

0

20

Toro 100-1974

SLINGER-OIL

$3.99

$

Usually ships in 3-6 days

0

21

Toro 100-1788

O-RING

$

$

Not available

22

Toro 100-1978

BOLT

$22.99

$

Usually ships in 3-6 days

0
