22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 200000501 - 200999999) (2000) HYDRAULIC VALVE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

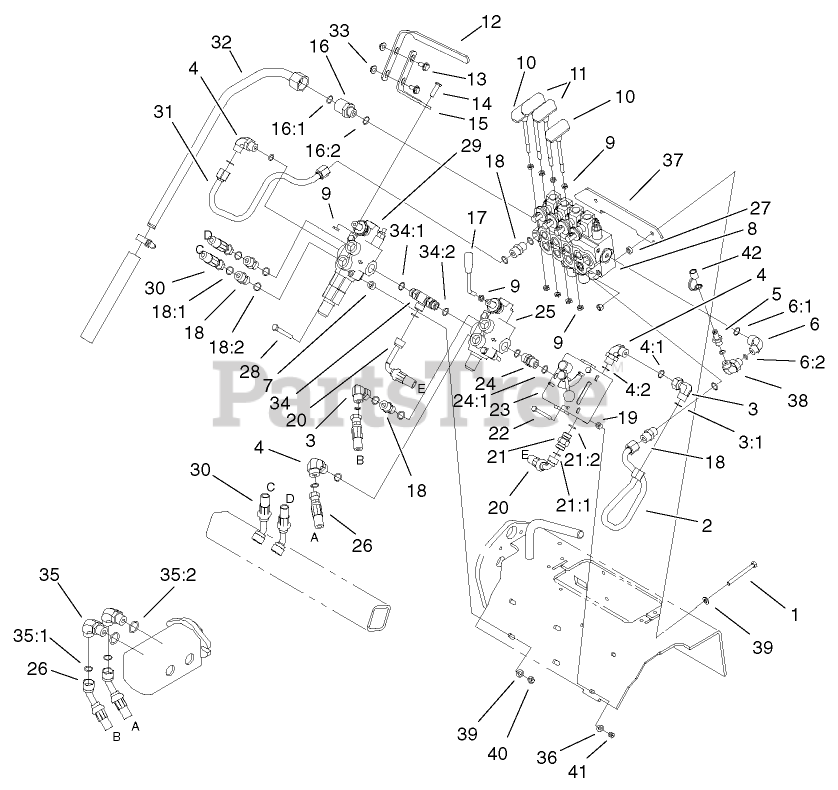

HYDRAULIC VALVE ASSEMBLY Parts Diagram

  • Title

1

Toro 322-20

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

2

Toro 99-3030

HYD TUBE ASM

$

$

Not available

3

Toro 94-6031

FITTING-HYD

$86.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

4

Toro 340-98

FITTING-ELBOW-90 DEG

$36.99

$

In Stock, only 2 left!

0

4:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

4:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

5

Toro 86-5480

NIPPLE-TEST

$84.99

$

Usually ships in 3-6 days

0

6

Toro 340-18

FITTING-HYD, 90 DEG

$45.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

6:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

7

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0

8

Toro 99-3070

VALVE-HYD, 4-SPOOL

$

$

Not available

9

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

10

Toro 98-4671

CYLINDER HANDLE ASM

$34.99

$

In Stock, only 1 left!

0

11

Toro 98-4670

DRIVE HANDLE ASM

$

$

Not available

12

Toro 98-9090

GRIP-CONTROL

$120.99

$

Usually ships in 3-6 days

0

13

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

14

Toro 33104-030

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

15

Toro 99-1376

MOUNT-CONTROL

$

$

Not available

16

Toro 98-9921

FITTING-STR

$61.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-145

O-RING
(Superseded to 237-58)

$2.99

$

Usually ships in 3-6 days

0

16:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

17

Toro 98-4729

LEVER-VALVE

$87.99

$

In Stock, only 1 left!

0

18

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

18:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

18:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

19

Toro 98-4799

SPACER

$8.49

$

In Stock, Qty 20+

0

20

Toro 100-2245

HOSE-HYD

$255.99

$

Usually ships in 3-6 days

0

21

Toro 98-4735

VALVE-CHECK, HYD

$313.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

21:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

22

Toro 321-14

SCREW-HH

$5.49

$

In Stock, Qty 12

0

23

Toro 99-3073

Valve-Hyd
(Superseded to 104-4221)

$997.99

$

Usually ships in 3-6 days

0

24

Toro 95-3209

FITTING-THREAD, STRAIGHT

$28.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

25

Toro 99-3072

VALVE-SELECTOR, HYD

$1088.99

$

Usually ships in 3-6 days

0

26

Toro 100-1730

HOSE-PUMP, HYD

$309.99

$

Usually ships in 3-6 days

0

27

Toro 99-3078

SPACER

$

$

Not available

28

Toro 322-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

29

Toro 99-3077

VALVE-HYD, AUXILIARY

$2008.99

$

Usually ships in 3-6 days

0

30

Toro 100-8817

HOSE-HYD

$427.99

$

Usually ships in 3-6 days

0

31

Toro 98-4724

HYD TUBE ASM

$123.99

$

In Stock, only 1 left!

0

32

Toro 99-3021

HYD TUBE ASM

$

$

Not available

33

Toro 32128-44

NUT

$3.49

$

Usually ships in 3-6 days

0

34

Toro 98-9079

ADAPTER-TEE, ADJUSTABLE

$265.99

$

Usually ships in 3-6 days

0

34:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

34:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

35

Toro 340-105

FITTING-ELBOW 90

$46.99

$

In Stock, only 1 left!

0

35:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

35:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

36

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 99-3079-03

Bracket-Mount, Cover
(Superseded to 104-4222-03)

$298.99

$

Usually ships in 3-6 days

0

38

Toro 340-159

FITTING-HYD, 90 DEG

$70.99

$

Usually ships in 3-6 days

0

39

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

40

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

41

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

42

Toro 354-79

CAP-DUST

$10.99

$

Usually ships in 3-6 days

0

99

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

99

Toro 3296-27

NUT-LOCK, NI

$1.99

$

In Stock, Qty 10

0
