22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 200000501 - 200999999) (2000) NOZZLE HOLDER AND GLOW PLUGS ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

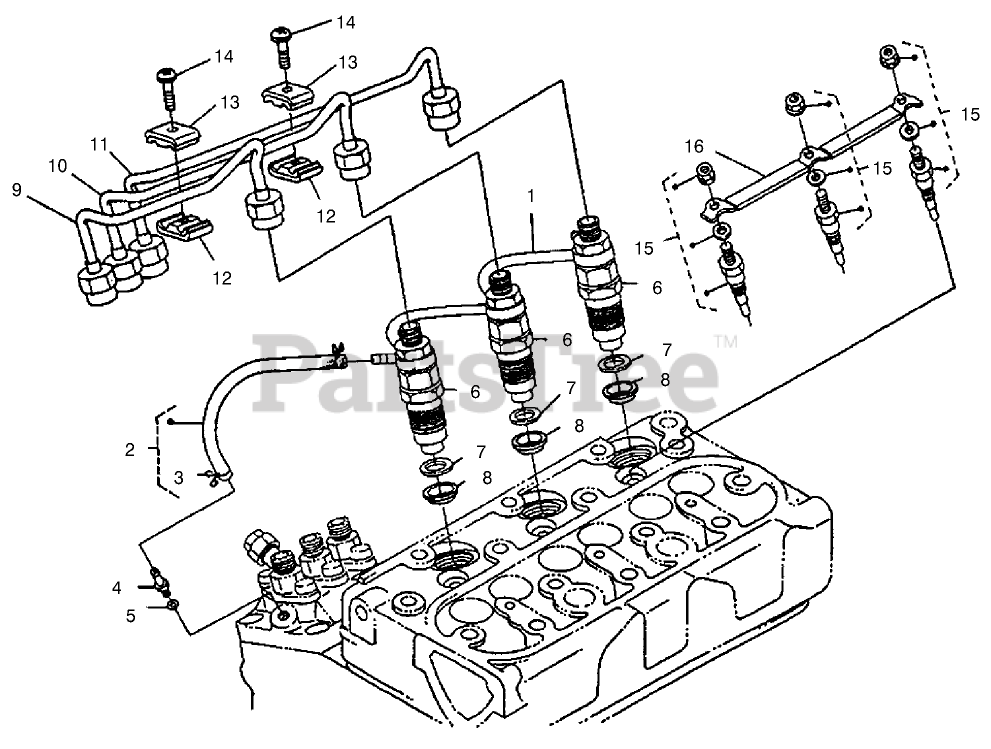

NOZZLE HOLDER AND GLOW PLUGS ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1960

OVER FLOW PIPE ASM

$94.99

$

Usually ships in 3-6 days

0

2

Toro 98-9420

OVERFLOW PIPE ASM

$6.99

$

Usually ships in 3-6 days

0

3

Toro 98-7671

CLIP-PIPE

$3.49

$

Usually ships in 3-6 days

0

4

Toro 98-9431

SCREW-BLEEDER, AIR

$24.99

$

Usually ships in 3-6 days

0

5

Toro 98-7654

GASKET

$14.99

$

Usually ships in 3-6 days

0

6

Toro 100-1758

NOZZLE HOLDER ASM

$479.99

$

Usually ships in 3-6 days

0

7

Toro 98-7676

GASKET

$4.49

$

In Stock, Qty 5

0

8

Toro 98-7677

SEAL-HEAT

$14.99

$

In Stock, Qty 5

0

9

Toro 100-2011

PIPE-INJECTION
(Superseded to 112-2828)

$

$

Not available

10

Toro 100-2013

PIPE-INJECTION
(Superseded to 112-2829)

$

$

Not available

11

Toro 100-2036

PIPE-INJECTION
(Superseded to 112-2830)

$

$

Not available

12

Toro 98-7682

CLAMP-PIPE

$10.99

$

Usually ships in 3-6 days

0

13

Toro 98-7683

CLAMP-PIPE

$5.99

$

In Stock, only 2 left!

0

14

Toro 98-7684

SCREW (W/WASHER)

$0.99

$

Usually ships in 3-6 days

0

15

Toro 100-1854

PLUG-GLOW

$

$

Not available

16

Toro 100-2037

CORD-PLUG, GLOW

$15.99

$

Usually ships in 3-6 days

0
