22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) MAIN BEARING CASE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

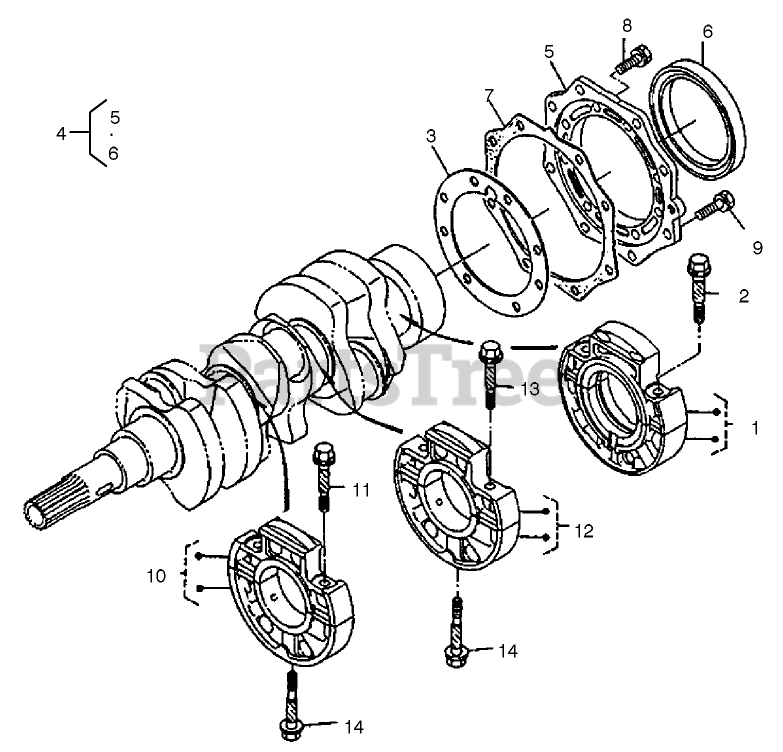

MAIN BEARING CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1988

MAIN BEARING CASE ASM

$

$

Not available

2

Toro 100-1757

BOLT-CASE, BEARING

$4.99

$

Usually ships in 3-6 days

0

3

Toro 100-1929

GASKET-CASE, BEARING
(Superseded to 100-1873)

$10.99

$

Usually ships in 3-6 days

0

4

Toro 100-2233

BEARING CASE COVER ASM

$

$

Not available

5

Toro 100-1875

COVER-CASE, BEARING
(Superseded to 112-8334)

$165.99

$

Usually ships in 3-6 days

0

6

Toro 100-2055

SEAL-OIL

$46.99

$

Usually ships in 3-6 days

0

7

Toro 100-1876

GASKET-COVER, CASE

$20.99

$

Usually ships in 3-6 days

0

8

Toro 98-7568

BOLT

$1.49

$

Usually ships in 3-6 days

0

9

Toro 100-1750

BOLT

$2.49

$

Usually ships in 3-6 days

0

10

Toro 100-1987

MAIN BEARING CASE ASM

$63.99

$

Usually ships in 3-6 days

0

11

Toro 100-1757

BOLT-CASE, BEARING

$4.99

$

Usually ships in 3-6 days

0

12

Toro 100-2027

MAIN BEARING CASE ASM

$95.99

$

Usually ships in 3-6 days

0

13

Toro 100-1757

BOLT-CASE, BEARING

$4.99

$

Usually ships in 3-6 days

0

14

Toro 100-1874

BOLT-CASE, BEARING

$14.99

$

Usually ships in 3-6 days

0
