22303 (320-D) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) RADIATOR MOUNT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

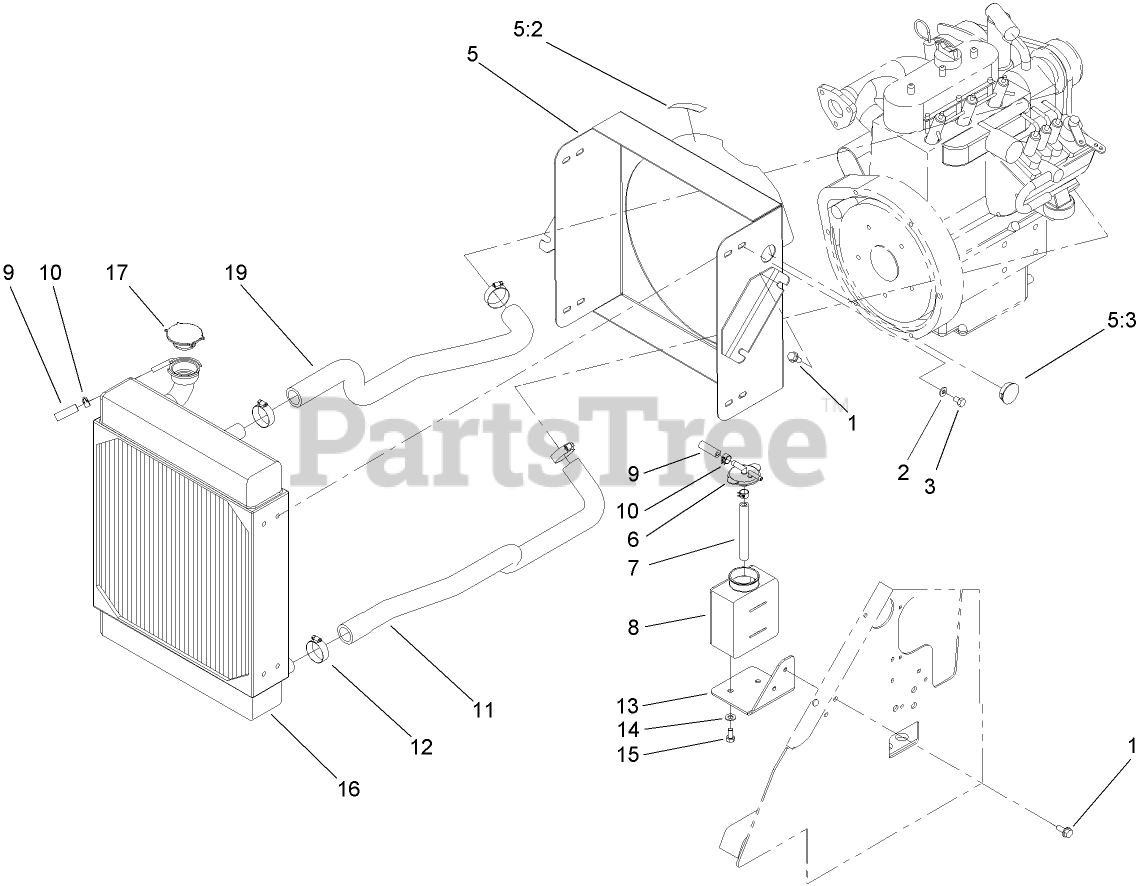

RADIATOR MOUNT ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

3

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

5

Toro 104-4648

MOUNT-RADIATOR

$532.99

$

Usually ships in 3-6 days

0

5:2

Toro 93-6681

DECAL-WARNING, FAN

$16.99

$

Usually ships in 3-6 days

0

5:3

Toro 94-1402

PLUG-HOLE

$2.49

$

Usually ships in 3-6 days

0

6

Toro 93-2048

CAP-TANK, OVERFLOW

$

$

Not available

7

Toro 94-1348

HOSE-FUEL
(Superseded to 108-3283)

$5.49

$

Usually ships in 3-6 days

0

8

Toro 93-2049

TANK-OVERFLOW

$114.99

$

Usually ships in 3-6 days

0

9

Toro 71-3383

HOSE-FUEL
(Superseded to 110-6186)

$19.99

$

Usually ships in 3-6 days

0

10

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

11

Toro 99-5042

HOSE-RADIATOR, LOWER

$145.99

$

Usually ships in 3-6 days

0

12

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

0

13

Toro 99-1446-01

MOUNT-TANK, OVERFLOW

$37.99

$

Usually ships in 3-6 days

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

16

Toro 99-5125

RADIATOR
(Superseded to 139-0771)

$1694.99

$

In Stock, only 1 left!

0

17

Toro 66-3240

CAP-RADIATOR

$28.99

$

Usually ships in 3-6 days

0

19

Toro 99-5043

HOSE-RADIATOR, UPPER

$145.99

$

Usually ships in 3-6 days

0
