22303 TE (320-D) - Toro Dingo Compact Utility Loader (SN: 220000001 - 220999999) (2002) CRANKCASE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

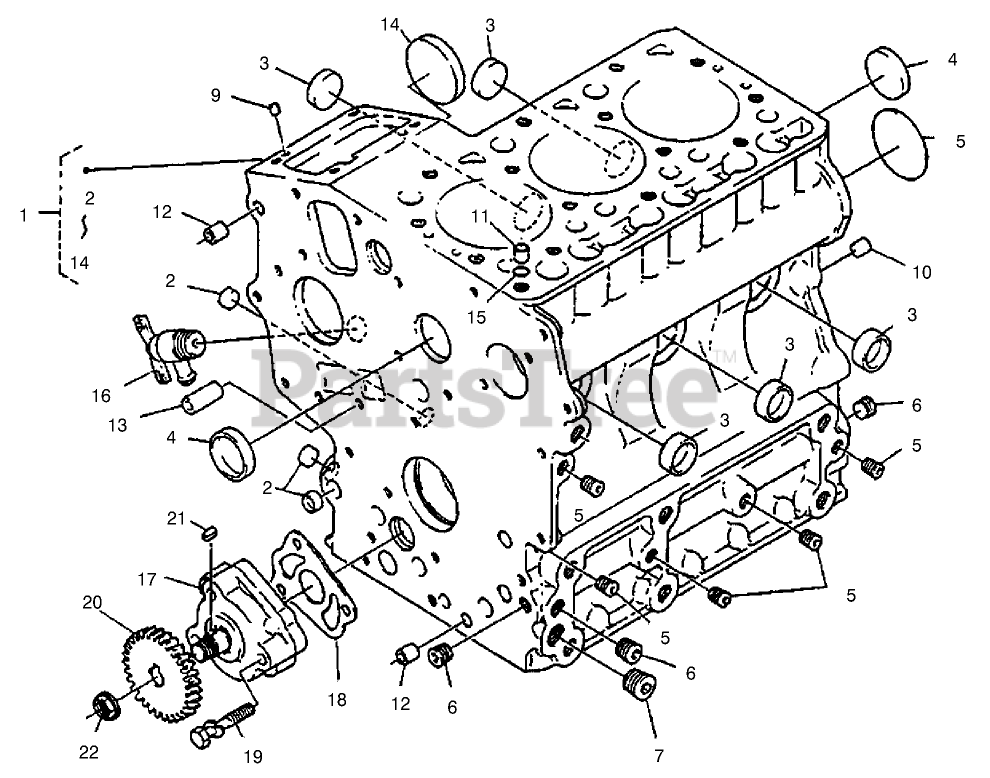

CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Toro 100-2167

CRANKCASE-COMP.

$6292.99

$

Usually ships in 3-6 days

0

2

Toro 100-2019

CAP-SEALING

$11.99

$

Usually ships in 3-6 days

0

3

Toro 100-2020

CAP-SEALING

$11.99

$

Usually ships in 3-6 days

0

4

Toro 98-9398

CAP-SEALING

$9.99

$

Usually ships in 3-6 days

0

5

Toro 98-7540

PLUG
(Superseded to 98-9687)

$4.99

$

Usually ships in 3-6 days

0

6

Toro 98-7487

PLUG

$5.49

$

Usually ships in 3-6 days

0

7

Toro 98-7488

PLUG

$4.49

$

Usually ships in 3-6 days

0

8

Toro 100-1851

PLUG-EXPANSION

$2.99

$

Usually ships in 3-6 days

0

9

Toro 98-9375

PIN-STRAIGHT

$0.99

$

Usually ships in 3-6 days

0

10

Toro 98-9377

PIN-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

11

Toro 98-7506

PIN-PIPE

$5.99

$

Usually ships in 3-6 days

0

12

Toro 98-9387

PIN-PIPE

$4.99

$

Usually ships in 3-6 days

0

13

Toro 100-2051

PIN-PIPE

$11.99

$

Usually ships in 3-6 days

0

14

Toro 100-1991

COVER-FUEL, CAMSHAFT

$22.99

$

Usually ships in 3-6 days

0

15

Toro 98-7509

O-RING

$5.99

$

Usually ships in 3-6 days

0

16

Toro 98-9436

DRAIN COCK ASM
(Superseded to 120-3121)

$26.99

$

Usually ships in 3-6 days

0

17

Toro 100-2002

OIL PUMP ASM

$258.99

$

Usually ships in 3-6 days

0

18

Toro 100-2003

GASKET-PUMP, OIL

$8.49

$

Usually ships in 3-6 days

0

19

Toro 100-1923

BOLT

$13.99

$

Usually ships in 3-6 days

0

20

Toro 100-1893

GEAR-DRIVE, OIL PUMP
(Superseded to 130-1419)

$38.99

$

Usually ships in 3-6 days

0

21

Toro 98-7658

KEY-FEATHER

$1.99

$

Usually ships in 3-6 days

0

22

Toro 100-1779

NUT-FLANGE

$11.99

$

Usually ships in 3-6 days

0
