22304 (222) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099000001) (1999) FRAME AND LOADER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

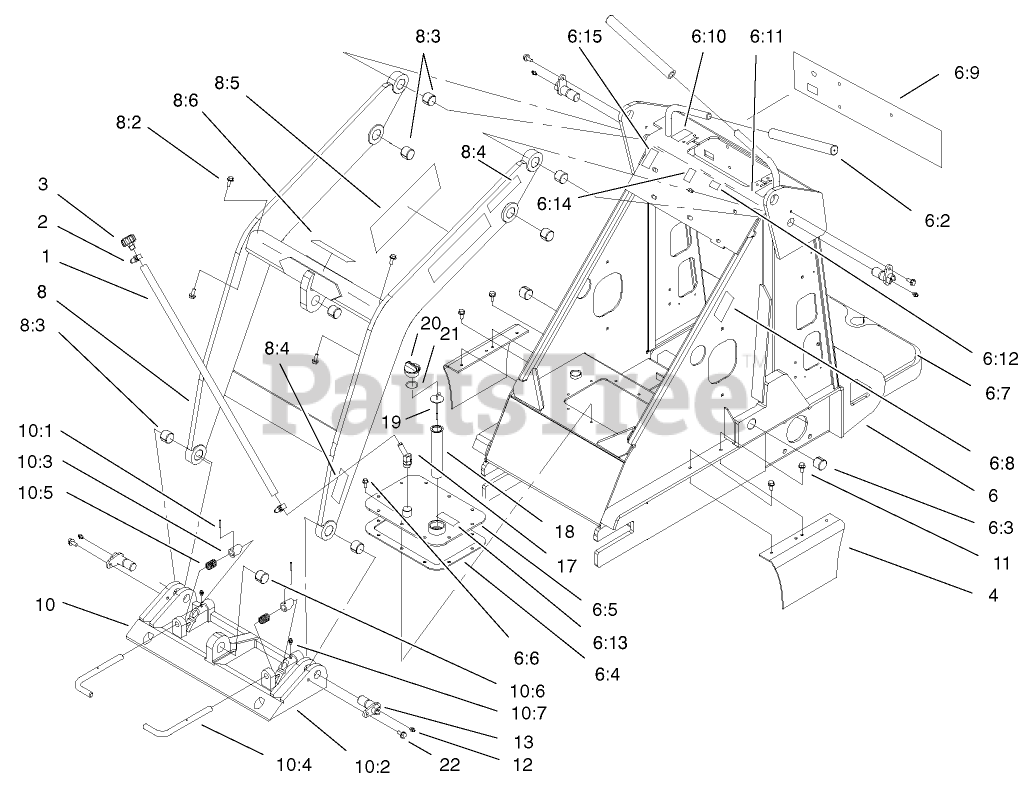

FRAME AND LOADER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 98-2708

HOSE-VENT

$58.99

$

Usually ships in 3-6 days

0

2

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

3

Toro 68-6150

BREATHER

$30.99

$

In Stock, only 2 left!

0

4

Toro 98-4669

Cover-Chain
(Superseded to 98-4669-01)

$93.99

$

Usually ships in 3-6 days

0

6

Toro 99-1355

FRAME ASM

$

$

Not available

6:2

Toro 98-4845

GRIP-CUSHION

$17.99

$

Usually ships in 3-6 days

0

6:3

Toro 98-4871

BUSHING-TENSION

$25.99

$

In Stock, only 2 left!

0

6:4

Toro 98-9927

GASKET-COVER

$74.99

$

Usually ships in 3-6 days

0

6:5

Toro 98-2709

COVER

$221.99

$

Usually ships in 3-6 days

0

6:6

Toro 98-9940

SCREW

$2.49

$

Usually ships in 3-6 days

0

6:7

Toro 98-9947

TREAD-FOOT

$37.99

$

Usually ships in 3-6 days

0

6:8

Toro 80-8010

DECAL-WARNING, KEEP HANDS AWAY

$

$

Not available

6:9

Toro 99-1385

DECAL-PANEL, INSTRUMENT

$

$

Not available

6:10

Toro 94-2551

DECAL-CHOKE

$42.99

$

Usually ships in 3-6 days

0

6:11

Toro 98-8219

DECAL-THROTTLE

$19.99

$

In Stock, only 1 left!

0

6:12

Toro 98-8220

DECAL-LIMITER, SPEED

$20.99

$

Usually ships in 3-6 days

0

6:13

Toro 85-4730

DECAL-ONLY, HYD OIL

$2.99

$

Usually ships in 3-6 days

0

6:14

Toro 98-8235

DECAL-SELECTOR

$19.99

$

Usually ships in 3-6 days

0

6:15

Toro 98-4677

DECAL-POWER, AUXILIARY

$7.99

$

Usually ships in 3-6 days

0

8

Toro 99-1354

Loader ASM
(Superseded to 106-8155)

$2490.99

$

Usually ships in 3-6 days

0

8:2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8:3

Toro 98-4871

BUSHING-TENSION

$25.99

$

In Stock, only 2 left!

0

8:4

Toro 80-8010

DECAL-WARNING, KEEP HANDS AWAY

$

$

Not available

8:5

Toro 98-9051

DECAL-DANGER

$36.99

$

In Stock, only 1 left!

0

8:6

Toro 98-4682

DECAL-CAUTION

$24.99

$

Usually ships in 3-6 days

0

10

Toro 98-4690

QUICK ATTACH ASM
(Superseded to 132-8418)

$1529.99

$

Usually ships in 3-6 days

0

10:1

Toro 32121-94

PIN-SPECIAL

$

$

Not available

10:2

Toro 98-4691

Mount-Quick Attach
(Superseded to 130-7708-03)

$1343.99

$

Usually ships in 3-6 days

0

10:3

Toro 98-4692

CAM-ATTACH, QUICK

$

$

Not available

10:4

Toro 98-4693

Pin-Quick Attach
(Superseded to 100-3373)

$55.99

$

Usually ships in 3-6 days

0

10:5

Toro 98-4694

SPRING-COMPRESSION

$12.99

$

In Stock, only 2 left!

0

10:6

Toro 98-4871

BUSHING-TENSION

$25.99

$

In Stock, only 2 left!

0

10:7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

11

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

13

Toro 99-1414

PIN-PIVOT
(Superseded to 112-2609)

$114.99

$

In Stock, only 2 left!

0

17

Toro 354-126

FITTING-HYD, 45 DEG

$62.99

$

Usually ships in 3-6 days

0

18

Toro 61-2790

FILTER-SCREEN

$

$

Not available

19

Toro 99-1351

DIPSTICK

$

$

Not available

20

Toro 93-7498

PLUG-PLASTIC

$28.99

$

In Stock, only 3 left!

0

21

Toro 237-123

O-RING
(Superseded to 237-101)

$3.49

$

In Stock, only 1 left!

0

22

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, only 4 left!

0
