22305 (322) - Toro Dingo Compact Utility Loader (SN: 220000201 - 220999999) (2002) FRAME AND LOADER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

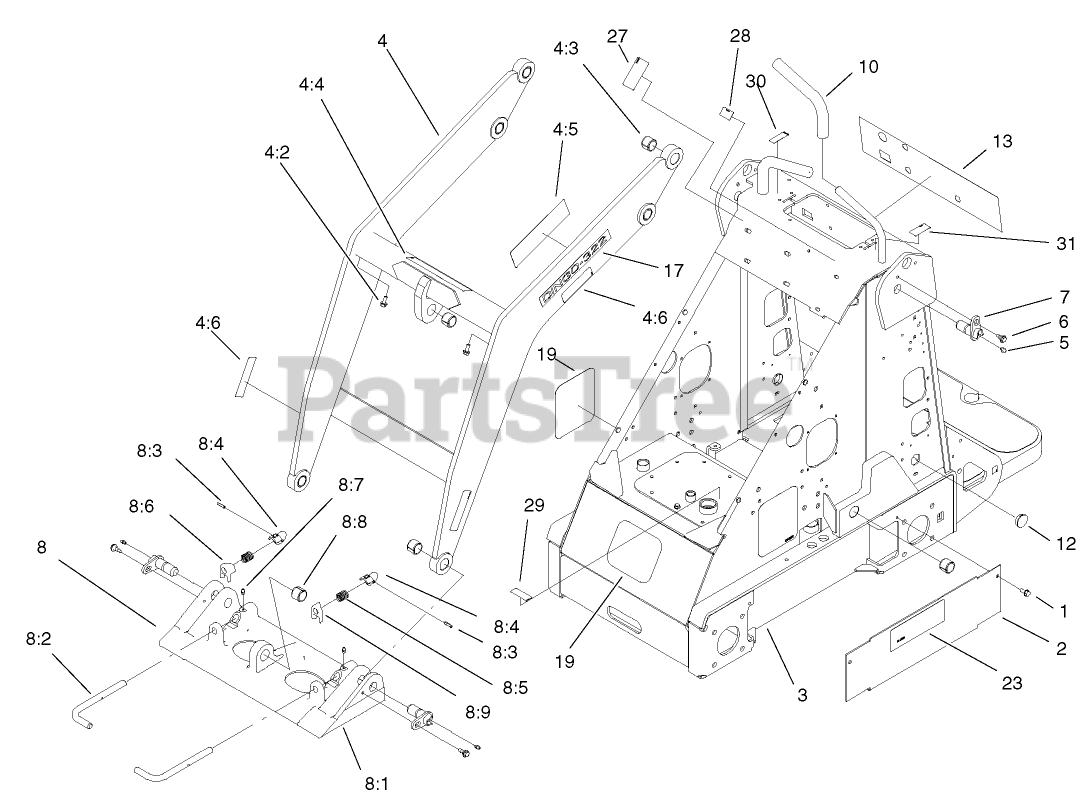

FRAME AND LOADER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

2

Toro 99-3020-01

COVER-HOSE

$

$

Not available

3

Toro 104-7416

FRAME ASM
(Superseded to 105-8375)

$

$

Not available

4

Toro 105-8366

LOADER ASM
(Superseded to 106-8155)

$2614.99

$

Usually ships in 3-6 days

0

4:2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

4:3

Toro 98-4871

BUSHING-TENSION

$25.99

$

In Stock, only 2 left!

0

4:4

Toro 98-4682

DECAL-CAUTION

$21.99

$

Usually ships in 3-6 days

0

4:5

Toro 98-9051

DECAL-DANGER

$33.99

$

In Stock, only 1 left!

0

4:6

Toro 100-6141

DECAL-PINCH

$38.99

$

Usually ships in 3-6 days

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, Qty 5

0

7

Toro 99-1414

PIN-PIVOT
(Superseded to 112-2609)

$118.99

$

In Stock, only 2 left!

0

8

Toro 105-8364

QUICK ATTACH ASM
(Superseded to 132-8418)

$1606.99

$

Usually ships in 3-6 days

0

8:1

Toro 105-0245-03

MOUNT-ATTACH, QUICK
(Superseded to 130-7708-03)

$1411.99

$

Usually ships in 3-6 days

0

8:2

Toro 105-8367

PIN-LOCKING
(Superseded to 132-8419)

$36.99

$

In Stock, only 2 left!

0

8:3

Toro 3285-1

PIN-GROOVED

$2.49

$

In Stock, only 1 left!

0

8:4

Toro 105-0246

CAM

$79.99

$

In Stock, only 2 left!

0

8:5

Toro 98-4694

SPRING-COMPRESSION

$13.99

$

In Stock, only 2 left!

0

8:6

Toro 104-5909

STOP-RH

$65.99

$

Usually ships in 3-6 days

0

8:7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8:8

Toro 98-4871

BUSHING-TENSION

$25.99

$

In Stock, only 2 left!

0

8:9

Toro 104-5903

STOP-LH

$65.99

$

In Stock, only 2 left!

0

10

Toro 98-4845

GRIP-CUSHION

$15.99

$

Usually ships in 3-6 days

0

12

Toro 94-1402

PLUG-HOLE

$2.49

$

Usually ships in 3-6 days

0

13

Toro 99-3157

DECAL-PANEL, CONTROL

$64.99

$

Usually ships in 3-6 days

0

17

Toro 99-3166

DECAL - DINGO 322

$

$

Not available

19

Toro 62-5550

DECAL

$11.99

$

In Stock, only 2 left!

0

23

Toro 99-3068

DECAL-4-PAW

$

$

Not available

27

Toro 98-4677

DECAL-POWER, AUXILIARY

$7.49

$

Usually ships in 3-6 days

0

28

Toro 98-8220

DECAL-LIMITER, SPEED

$18.99

$

Usually ships in 3-6 days

0

29

Toro 105-8404

DECAL-OIL, HYD
(Superseded to 105-8432)

$6.49

$

Usually ships in 3-6 days

0

30

Toro 94-2551

DECAL-CHOKE

$37.99

$

Usually ships in 3-6 days

0

31

Toro 98-8219

DECAL-THROTTLE

$17.99

$

In Stock, only 1 left!

0
