22305 (322) - Toro Dingo Compact Utility Loader (SN: 220000201 - 220999999) (2002) HYDRAULIC CYLINDER INSTALLATION ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

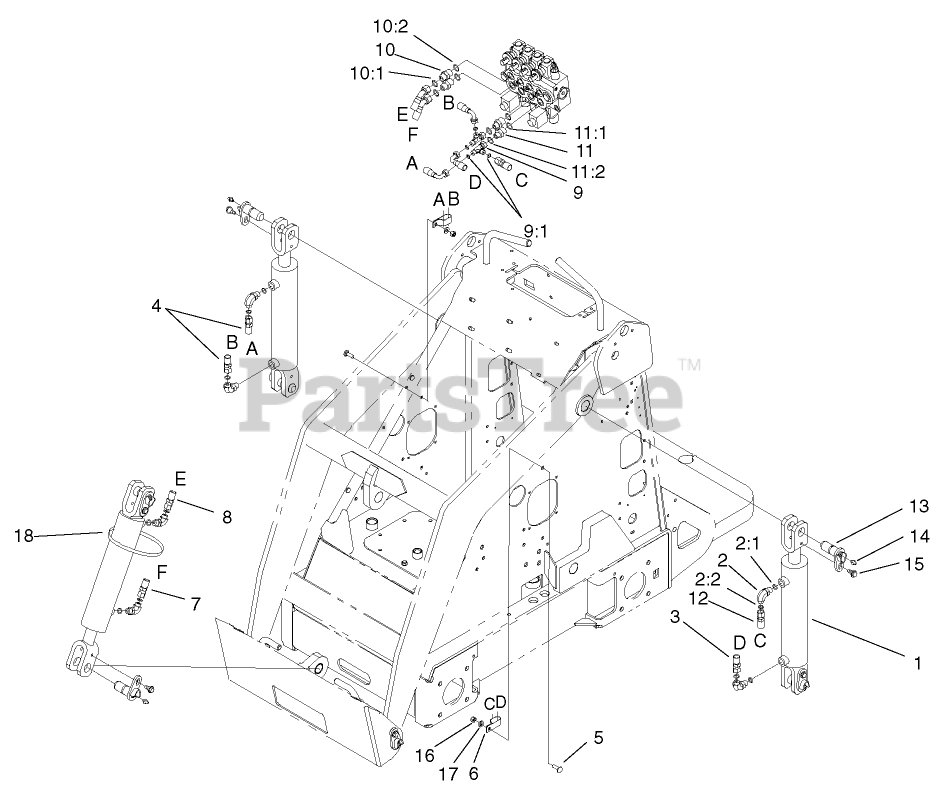

HYDRAULIC CYLINDER INSTALLATION ASSEMBLY Parts Diagram

  • Title

1

Toro 100-4163

CYLINDER KIT

$2128.99

$

Usually ships in 3-6 days

0

2

Toro 340-82

FITTING-ELBOW 90

$23.99

$

In Stock, only 2 left!

0

2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

2:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 6

0

3

Toro 98-4748

HYD HOSE ASM

$185.99

$

Usually ships in 3-6 days

0

4

Toro 98-4725

HOSE-HYD

$192.99

$

Usually ships in 3-6 days

0

5

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 1 left!

0

6

Toro 2412-137

CLAMP-R, DOUBLE

$6.99

$

Usually ships in 3-6 days

0

7

Toro 98-4726

HOSE-HYD

$283.99

$

Usually ships in 3-6 days

0

8

Toro 98-4727

HOSE-HYD

$235.99

$

Usually ships in 3-6 days

0

9

Toro 340-151

FITTING-HYD

$101.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 6

0

10

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 2 left!

0

10:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 3 left!

0

11

Toro 340-133

FITTING-STR

$45.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 3 left!

0

11:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 6

0

12

Toro 99-3109

HYD HOSE ASM

$

$

Not available

13

Toro 99-1414

PIN-PIVOT
(Superseded to 112-2609)

$118.99

$

In Stock, only 2 left!

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, Qty 5

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
