22305 (322) - Toro Dingo Compact Utility Loader (SN: 220000201 - 220999999) (2002) HYDRAULIC TANK AND FILTER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

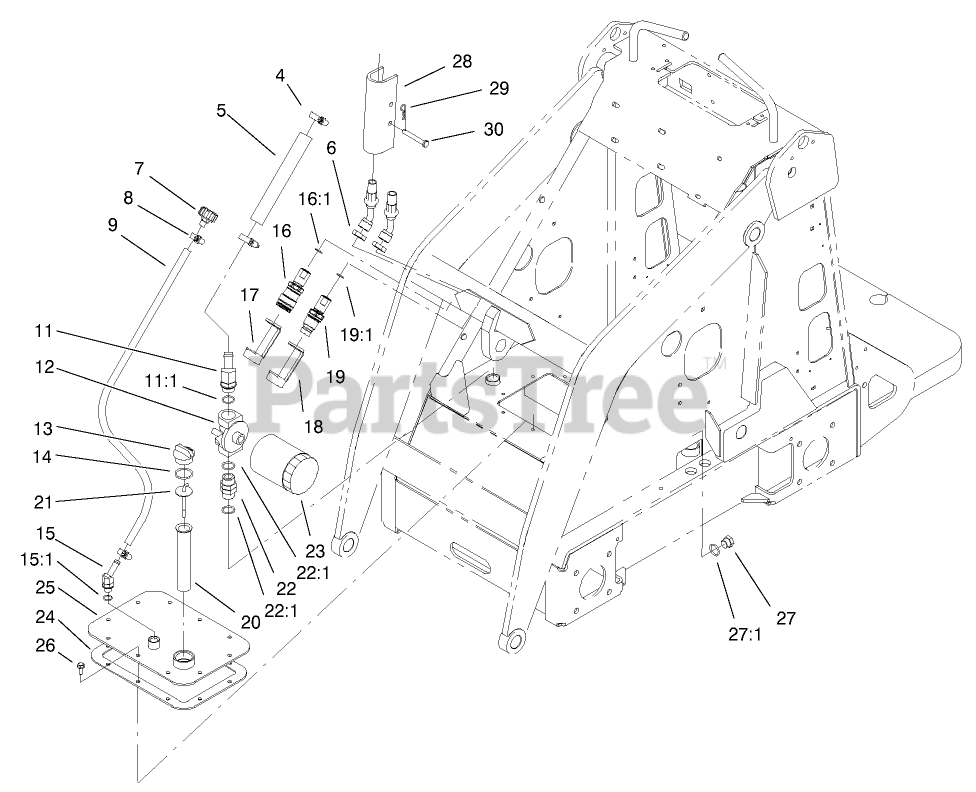

HYDRAULIC TANK AND FILTER ASSEMBLY Parts Diagram

  • Title

4

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

5

Toro 98-2713

HOSE-SUCTION, HYD

$30.99

$

In Stock, only 2 left!

0

6

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

Usually ships in 3-6 days

0

7

Toro 68-6150

BREATHER

$31.99

$

In Stock, only 2 left!

0

8

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 8

0

9

Toro 98-2708

HOSE-VENT

$52.99

$

Usually ships in 3-6 days

0

11

Toro 354-127

ELBOW-45 DEG

$86.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 3 left!

0

12

Toro 92-5821

HEAD-FILTER

$211.99

$

Usually ships in 3-6 days

0

13

Toro 93-7498

PLUG-PLASTIC

$28.99

$

In Stock, only 3 left!

0

14

Toro 237-123

O-RING
(Superseded to 237-101)

$3.49

$

Usually ships in 3-6 days

0

15

Toro 354-126

FITTING-HYD, 45 DEG

$56.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 3 left!

0

16

Toro 105-8394

BULKHEAD COUPLER ASM

$328.99

$

In Stock, only 1 left!

0

16:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 12

0

16:2

Toro 105-8396

SEAL KIT
(Superseded to 106-7692)

Note: Not illustrated

$270.99

$

Usually ships in 3-6 days

0

17

Toro 100-8816

CAP-DUST, COUPLER

$16.99

$

Usually ships in 3-6 days

0

18

Toro 100-8815

CAP-DUST, NIPPLE

$14.99

$

Usually ships in 3-6 days

0

19

Toro 105-8395

BULKHEAD NIPPLE ASM

$263.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 12

0

19:2

Toro 100-6120

SEAL KIT

Note: Not illustrated

$114.99

$

Usually ships in 3-6 days

0

20

Toro 61-2790

FILTER-SCREEN

$

$

Not available

21

Toro 100-2097

DIPSTICK-OIL

$60.99

$

Usually ships in 3-6 days

0

22

Toro 98-9906

FITTING-THREAD, STRAIGHT

$71.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 3 left!

0

23

Toro 54-0110

FILTER-OIL, TRANSMISSION

$16.99

$

In Stock, Qty 8

0

24

Toro 98-9927

GASKET-COVER

$76.99

$

Usually ships in 3-6 days

0

25

Toro 100-1713-01

COVER

$203.99

$

Usually ships in 3-6 days

0

26

Toro 98-9940

SCREW

$2.49

$

In Stock, only 2 left!

0

27

Toro 353-988

PLUG-HEX

$13.99

$

In Stock, only 1 left!

0

27:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 3 left!

0

28

Toro 98-4675-01

LOCK-CYLINDER

$40.99

$

Usually ships in 3-6 days

0

29

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, only 4 left!

0

30

Toro 283-52

PIN-CLEVIS

$13.99

$

Usually ships in 3-6 days

0
