22305 A (322) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

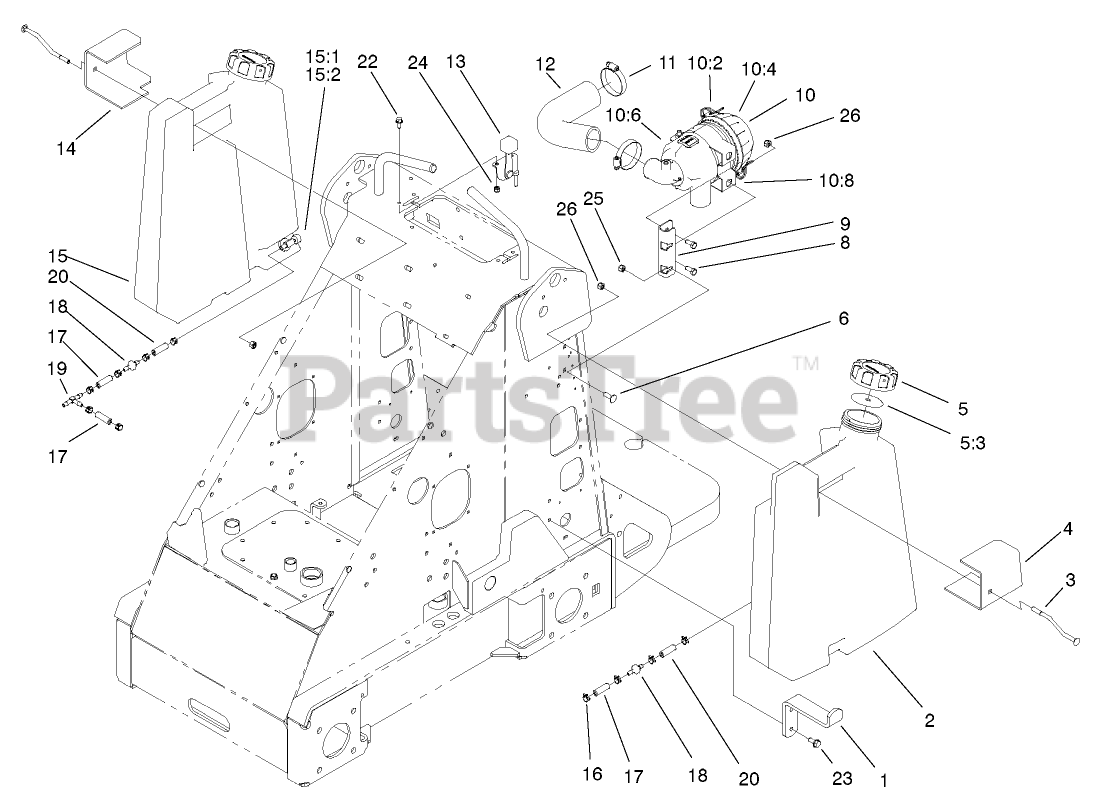

FUEL TANK AND AIR FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 98-4656-03

MOUNT-BOTTOM, TANK

$36.99

$

Usually ships in 3-6 days

0

2

Toro 99-5003

Fuel Tank ASM
(Superseded to 105-4051)

$

$

Not available

2:1

Toro 104047

BUSHING
(Superseded to 46-6560)

Note: Not illustrated

$5.99

$

In Stock, Qty 20+

0

2:2

Toro 104048

VALVE-FUEL

Note: Not illustrated

$31.99

$

In Stock, Qty 9

0

2:3

Toro 99-1420

PLUG - TANK, FUEL

Note: Not illustrated

$

$

Not available

3

Toro 98-4657

BOLT-MOUNT

$40.99

$

Usually ships in 3-6 days

0

4

Toro 99-1444-03

PLATE-MOUNT, LEFT

$75.99

$

In Stock, only 1 left!

0

5

Toro 104-7418

CAP-FUEL, GAS

$50.99

$

In Stock, only 2 left!

0

5:3

Toro 104-7420

GASKET-VENTED

$33.99

$

Usually ships in 3-6 days

0

6

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 8

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 99-3080-03

MOUNT-CLEANER, AIR

$82.99

$

Usually ships in 3-6 days

0

10

Toro 99-3160

AIR CLEANER ASM

$331.99

$

Usually ships in 3-6 days

0

10:2

Toro 99-3174

CLIP-CLEANER, AIR

$17.99

$

In Stock, Qty 11

0

10:4

Toro 99-3176

COVER

$86.99

$

In Stock, only 1 left!

0

10:6

Toro 99-3184

HOUSING
(Superseded to 117-1727)

$189.99

$

In Stock, only 2 left!

0

10:8

Toro 99-3197

MOUNTING BRACKET ASM

$105.99

$

Usually ships in 3-6 days

0

10:1

Toro 99-3173

ELEMENT-FILTER, AIR

Note: Not illustrated

$64.99

$

Usually ships in 3-6 days

0

10:3

Toro 99-3175

VALVE-EJECTOR, DUST

Note: Not illustrated

$35.99

$

Usually ships in 3-6 days

0

10:5

Toro 99-3183

TUBE ASM
(Superseded to 99-3160)

Note: Not illustrated

$331.99

$

Usually ships in 3-6 days

0

10:7

Toro 99-3198

FILTER-SAFETY

Note: Not illustrated

$64.99

$

In Stock, only 1 left!

0

11

Toro 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0

12

Toro 99-3148

HOSE-AIR

$154.99

$

Usually ships in 3-6 days

0

13

Toro 85-9310

CONTROL-CHOKE / THROTTLE

$98.99

$

In Stock, only 1 left!

0

14

Toro 98-4655-03

PLATE-MOUNT

$68.99

$

Usually ships in 3-6 days

0

15

Toro 98-4654

Fuel Tank ASM
(Superseded to 105-4052)

$472.99

$

Usually ships in 3-6 days

0

15:1

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

15:2

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, Qty 9

0

16

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

17

Toro 99-3185

HOSE-FUEL
(Superseded to 110-5701)

$17.99

$

Usually ships in 3-6 days

0

18

Toro 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, Qty 13

0

19

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 3 left!

0

20

Toro 99-5101

HOSE-FUEL
(Superseded to 114-3765)

$4.99

$

In Stock, only 1 left!

0

22

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
