22305 TE (322) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) HYDRAULIC TANK ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

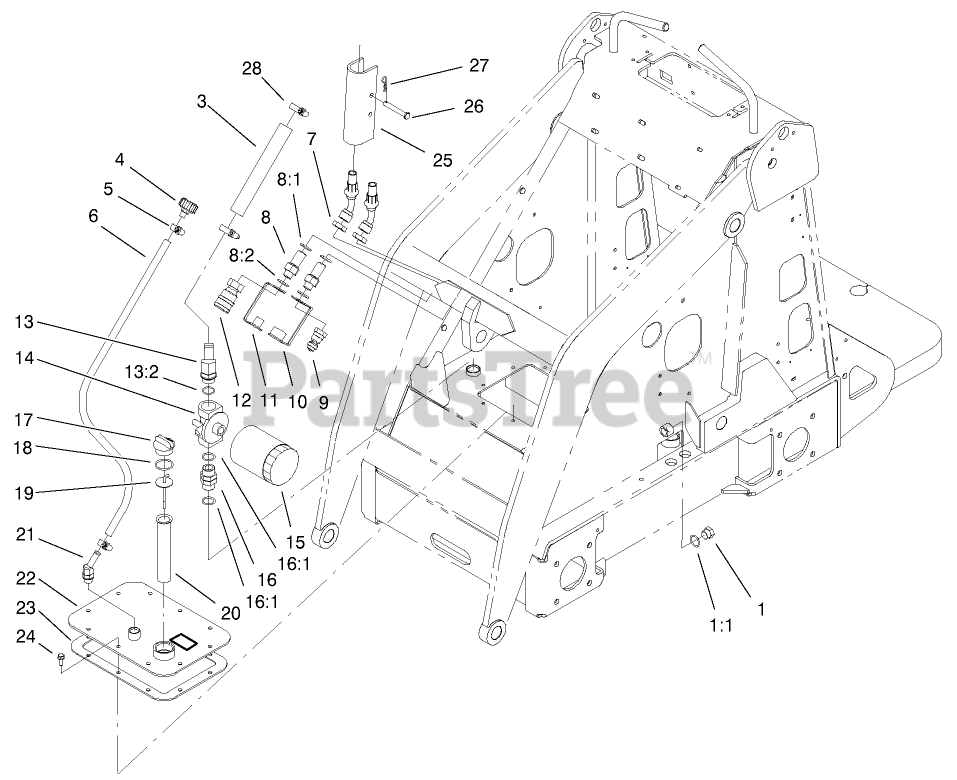

HYDRAULIC TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 353-988

PLUG-HEX

$13.99

$

In Stock, only 1 left!

0

1:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 3 left!

0

3

Toro 98-2713

HOSE-SUCTION, HYD

$30.99

$

In Stock, only 2 left!

0

4

Toro 68-6150

BREATHER

$31.99

$

In Stock, only 2 left!

0

5

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 8

0

6

Toro 98-2708

HOSE-VENT

$52.99

$

Usually ships in 3-6 days

0

7

Toro 340-127

NUT-BULKHEAD

$7.99

$

Usually ships in 3-6 days

0

8

Toro 98-9907

UNION-BULKHEAD

$88.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

0

8:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 3 left!

0

9

Toro 98-4698

MALE-DISCONNECT, QUICK

$72.99

$

In Stock, only 1 left!

0

10

Toro 98-9912

Cap-Dust
(Superseded to 104-1282)

$

$

Not available

11

Toro 98-9913

Dust Plug
(Superseded to 104-1281)

$26.99

$

Usually ships in 3-6 days

0

12

Toro 98-4699

FEMALE-DISCONNECT, QUICK

$176.99

$

In Stock, only 2 left!

0

12:1

Toro 100-4165

SEAL KIT

Note: Not illustrated

$

$

Not available

13

Toro 99-3016

FITTING-45 DEG

$

$

Not available

13:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 3 left!

0

14

Toro 92-5821

HEAD-FILTER

$211.99

$

Usually ships in 3-6 days

0

15

Toro 54-0110

FILTER-OIL, TRANSMISSION

$16.99

$

In Stock, Qty 8

0

16

Toro 98-9906

FITTING-THREAD, STRAIGHT

$71.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 3 left!

0

17

Toro 93-7498

PLUG-PLASTIC

$28.99

$

In Stock, only 3 left!

0

18

Toro 237-123

O-RING
(Superseded to 237-101)

$3.49

$

Usually ships in 3-6 days

0

19

Toro 99-1351

DIPSTICK

$

$

Not available

20

Toro 61-2790

FILTER-SCREEN

$

$

Not available

21

Toro 354-126

FITTING-HYD, 45 DEG

$56.99

$

Usually ships in 3-6 days

0

22

Toro 99-3128-03

Cover
(Superseded to 100-1713-01)

$203.99

$

Usually ships in 3-6 days

0

23

Toro 98-9927

GASKET-COVER

$76.99

$

Usually ships in 3-6 days

0

24

Toro 98-9940

SCREW

$2.49

$

In Stock, only 2 left!

0

25

Toro 98-4675-01

LOCK-CYLINDER

$40.99

$

Usually ships in 3-6 days

0

26

Toro 283-52

PIN-CLEVIS

$13.99

$

Usually ships in 3-6 days

0

27

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, only 4 left!

0

28

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, only 3 left!

0
