22305 TE (322) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) HYDRAULIC VALVE ASSEMBLY NO. 99-3069 Parts Diagram

Dingo Compact Utility Loader

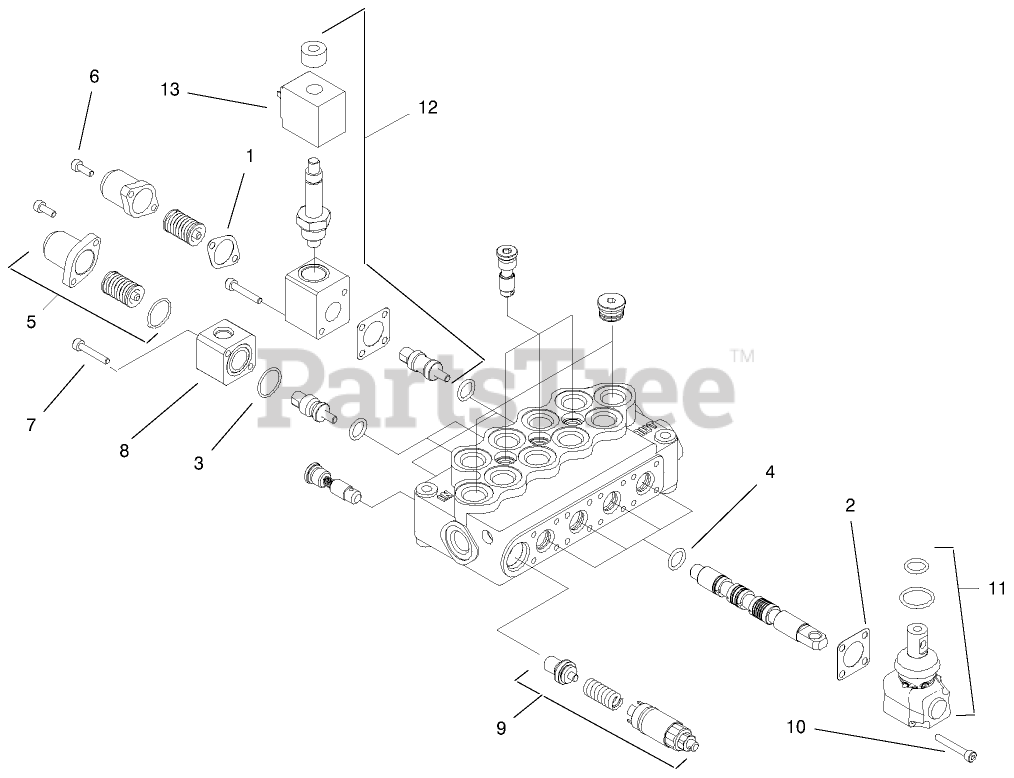

HYDRAULIC VALVE ASSEMBLY NO. 99-3069 Parts Diagram

  • Title

1

Toro 99-3074

GASKET

$19.99

$

Usually ships in 3-6 days

0

2

Toro 99-3075

GASKET

$19.99

$

Usually ships in 3-6 days

0

5

Toro 100-8800

STANDARD SPRING KIT

$87.99

$

Usually ships in 3-6 days

0

Toro 100-8801

HIGH FORCE SPRING KIT

Note: Not illustrated

$193.99

$

Usually ships in 3-6 days

0

6

Toro 100-8802

SCREW-CAP, END

$14.99

$

Usually ships in 3-6 days

0

7

Toro 100-8803

SCREW

$14.99

$

Usually ships in 3-6 days

0

8

Toro 100-8804

BLOCK-MOUNT, SWITCH

$549.99

$

Usually ships in 3-6 days

0

9

Toro 100-8805

VALVE-RELIEF

$509.99

$

Usually ships in 3-6 days

0

10

Toro 100-8806

SCREW

$14.99

$

Usually ships in 3-6 days

0

11

Toro 100-8807

OPERATOR ASM

$196.99

$

Usually ships in 3-6 days

0

12

Toro 100-8808

SPOOL LOCK ASM

$

$

Not available

13

Toro 100-8809

COIL WITH CONNECTOR

$502.99

$

Usually ships in 3-6 days

0

Toro 99-4390

Seal Kit (Incl. Ref. #3 & 4)

Note: Not illustrated

$142.99

$

Usually ships in 3-6 days

0
