22305x31B - Scotts 22" Walk-Behind Mower (2001)

22" Walk-Behind Mower

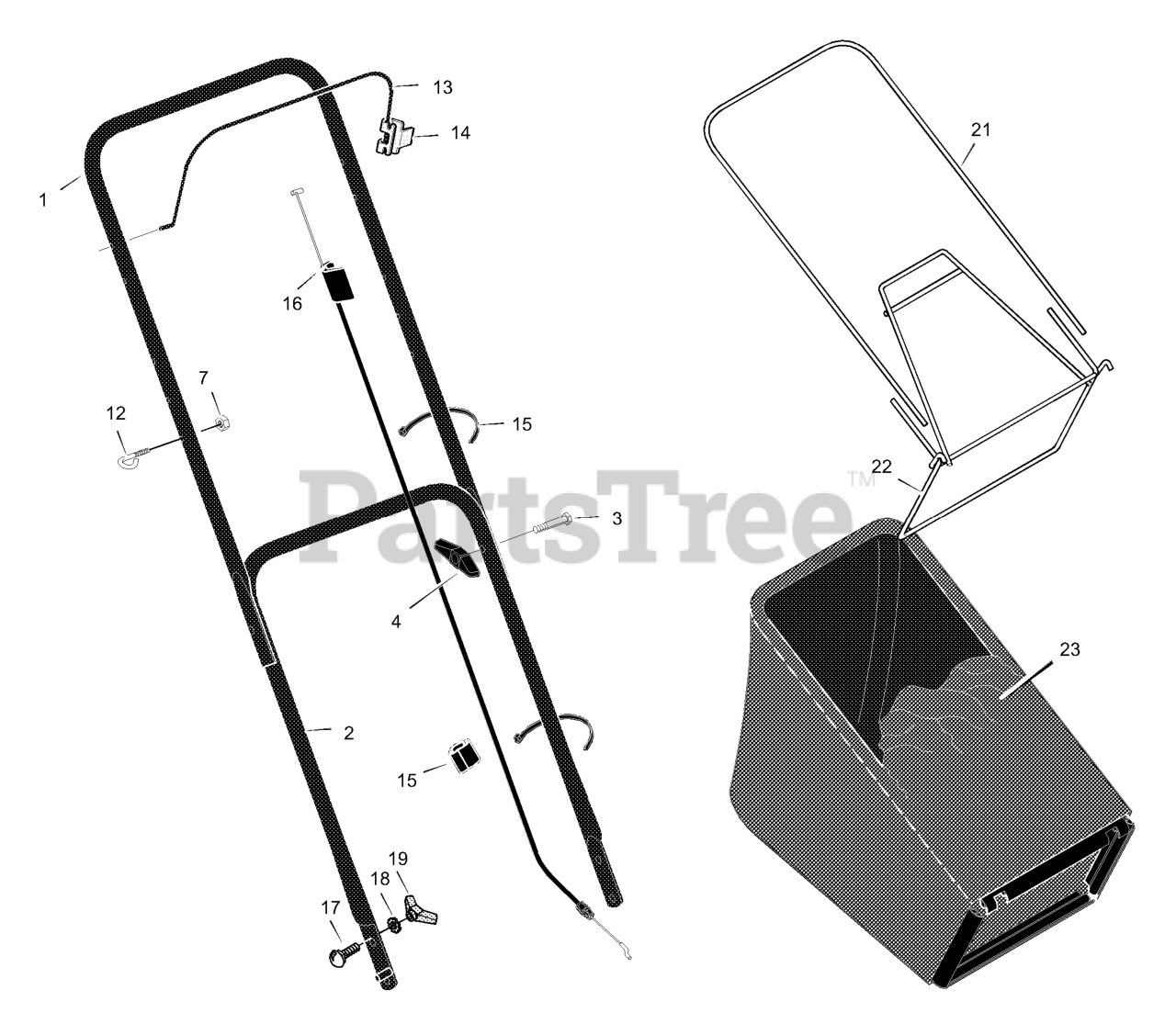

22305x31B - Scotts 22" Walk-Behind Mower (2001) > Parts Diagrams (2) > Handle & Bag Assembly

  • Title
071581E701MA

1

Handle, Upper (Black)

Part# 071581E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $143.68

672906E701MA

2

Handle, Lower (Black)

Part# 672906E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $99.58

002X77MA

3

Bolt

Part# 002X77MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

071294

4

Knob, Plastic

Part# 071294 (Superseded to 703065)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.09

15X116MA

7

Locknut

Part# 15X116MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.19

071530MA

12

Guide, Rope

Part# 071530MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.03

043653E701MA

13

Engine Stop Lever

Part# 043653E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $24.73

43628 BC

14

Bracket, Stop Lever

Part# 43628 BC

OEM Warranty Repair Part for Murray

Currently unavailable

1101352

15

Clip, Cable

Part# 1101352

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

1101363MA

16

Engine Stop Cable

Part# 1101363MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $13.77

002X81MA

17

Bolt, Carriage

Part# 002X81MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

17X168ZMA

18

Washer

Part# 17X168ZMA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.73

071495MA

19

Knob, Plastic

Part# 071495MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.44

26X268MA

19

Screw

Part# 26X268MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.15

042294

20

Clamp

Part# 042294

OEM Warranty Repair Part for Murray

Not available

1101075MA

21

Frame, Top

Part# 1101075MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $90.42

1101074MA

22

Frame Assembly

Part# 1101074MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $44.68

1101035MA

23

Bag, Cloth

Part# 1101035MA

OEM Warranty Repair Part for Murray

Not available
