22305x31B - Scotts 22" Walk-Behind Mower (2001)

22" Walk-Behind Mower

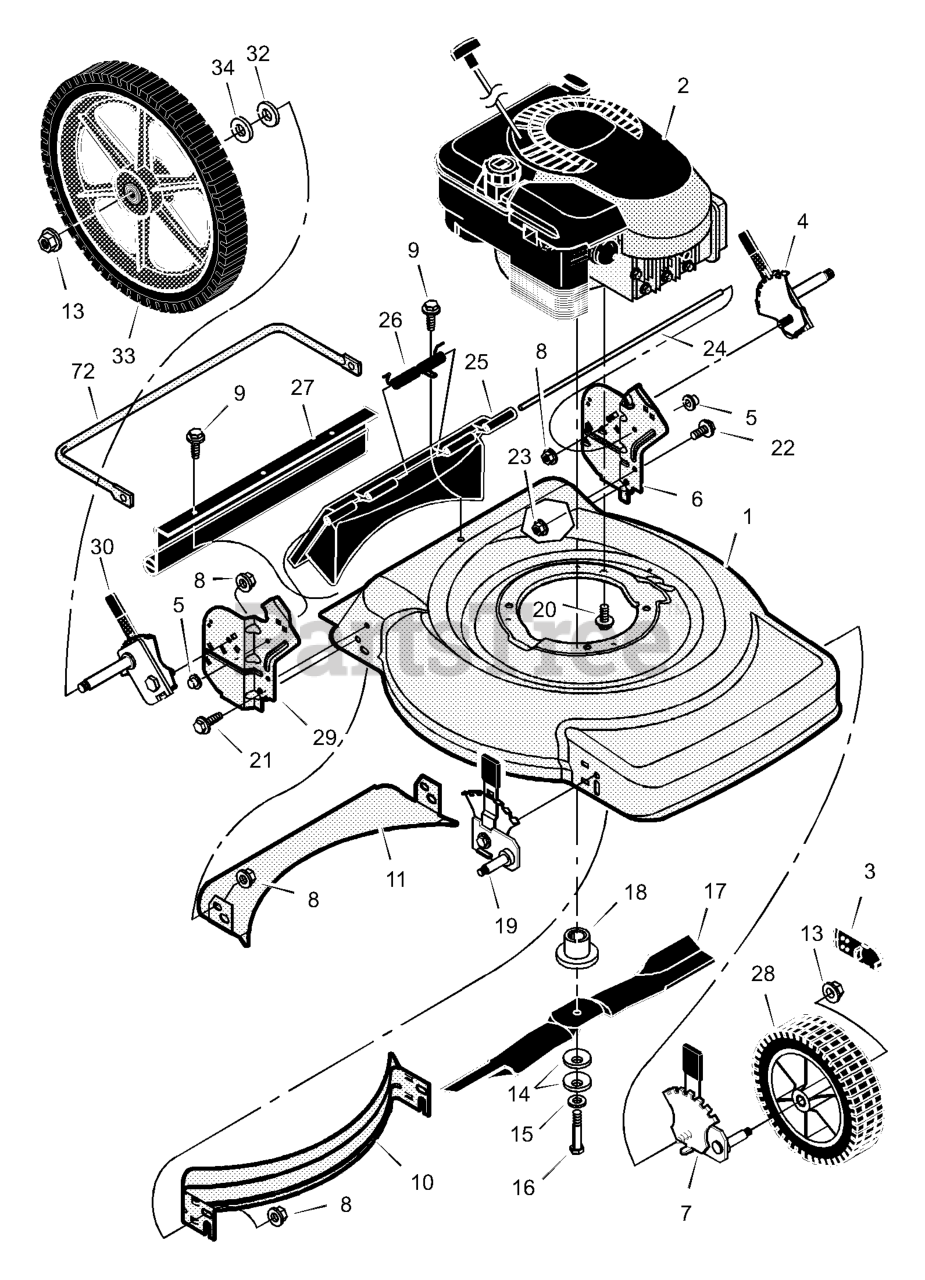

22305x31B - Scotts 22" Walk-Behind Mower (2001) > Parts Diagrams (2) > Mower Housing Assembly

  • Title
7501001

1

Housing

Part# 7501001

OEM Warranty Repair Part for Murray

Currently unavailable

-----

2

Engine

Part# -----

Not available

043615MA

3

Cap, Hub

Part# 043615MA

Note: (Optional)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.33

672919MA

4

Adjuster, Left Rear Height

Part# 672919MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.44

028X49MA

5

Push On Cap

Part# 028X49MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.92

1101245E700

6

Bracket, Left Handle

Part# 1101245E700

OEM Warranty Repair Part for Murray

Not available

672601MA

7

Adjuster, Left Front Height

Part# 672601MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $64.28

015X68MA

8

Nut, Flange

Part# 015X68MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.87

26X245MA

9

Screw

Part# 26X245MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.15

672915E700

10

Baffle, Front

Part# 672915E700

OEM Warranty Repair Part for Murray

Currently unavailable

672916E700

11

Baffle, Rear

Part# 672916E700

OEM Warranty Repair Part for Murray

Currently unavailable

015X84MA

13

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

17X137MA

14

Washer, Belleville

Part# 17X137MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.73

17X124MA

15

Washer

Part# 17X124MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

01X153MA

16

Bolt

Part# 01X153MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.03

1101120E701MA

17

Blade

Part# 1101120E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $21.70

672503MA

18

Adapter, Blade

Part# 672503MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $8.69

672600MA

19

Adjuster, Right Front Height

Part# 672600MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $64.34

0025X6MA

20

Bolt, Engine

Part# 0025X6MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.97

001X85MA

21

Bolt

Part# 001X85MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

001X45MA

22

Bolt

Part# 001X45MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.02

015X79MA

23

Nut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

215X21MA

24

Rod, Pivot

Part# 215X21MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $7.18

1101130

25

Door, Rear (Black)

Part# 1101130

OEM Warranty Repair Part for Murray

Not available

166X44MA

26

Spring

Part# 166X44MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.21

1101105MA

27

Guard, Rear

Part# 1101105MA (Superseded to 7103347YP)

OEM Warranty Repair Part for Murray

Not available

071132MA

28

Wheel & Tire, Front

Part# 071132MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $26.60

1101244E700

29

Bracket, Right Handle

Part# 1101244E700

OEM Warranty Repair Part for Murray

Not available

672918MA

30

Adjuster, Right Rear Height

Part# 672918MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.62

017X91MA

32

Washer

Part# 017X91MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.91

672745

33

Wheel & Tire, Rear

Part# 672745

OEM Warranty Repair Part for Murray

Currently unavailable

0020X3MA

34

Washer

Part# 0020X3MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

1101008E701

72

Brace

Part# 1101008E701

OEM Warranty Repair Part for Murray

Not available

F-010445J

--

Instruction Book

Part# F-010445J

OEM Warranty Repair Part for Murray

Currently unavailable
