22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 200000001 - 200000150) (2000) TRACTION HYDRAULICS ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

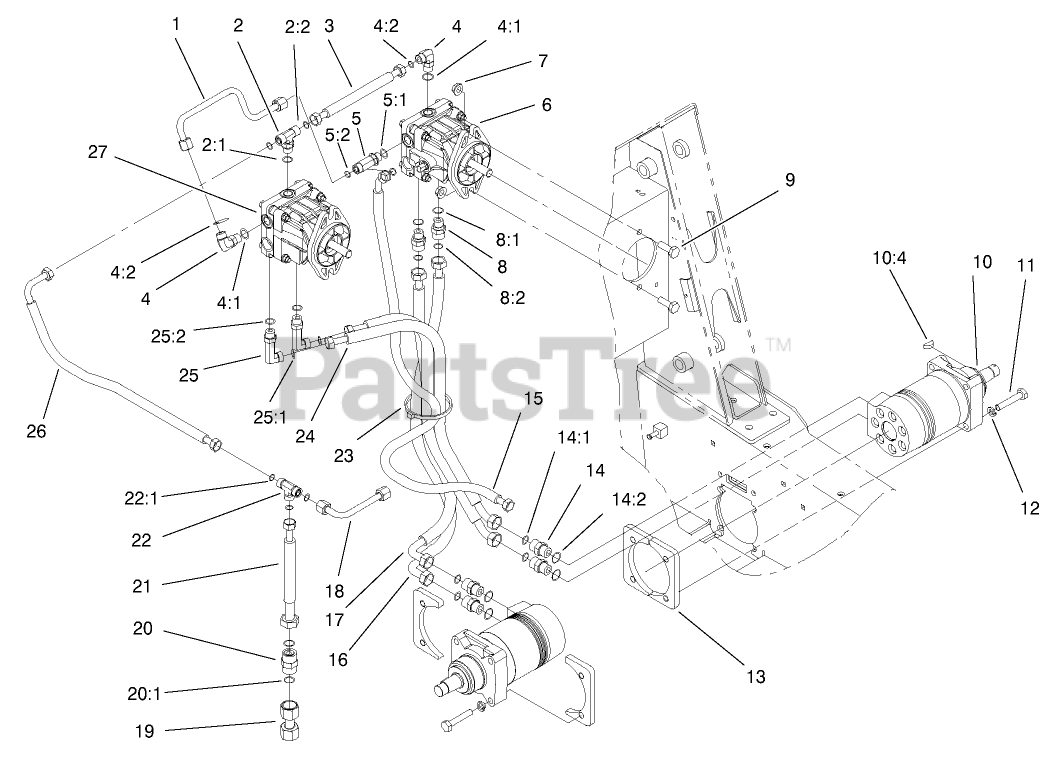

TRACTION HYDRAULICS ASSEMBLY Parts Diagram

  • Title

1

Toro 98-0200

TUBE-HYD

$300.99

$

Usually ships in 3-6 days

0

2

Toro 340-157

FITTING-HYD, TEE

$64.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

2:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

3

Toro 95-3664

HYD HOSE ASM

$168.99

$

Usually ships in 3-6 days

0

4

Toro 340-98

FITTING-ELBOW-90 DEG

$32.99

$

In Stock, only 1 left!

0

4:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

4:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

5

Toro 340-109

FITTING-TEE

$68.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

5:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

6

Toro 98-8432

PUMP-HYD, LH

$3816.99

$

Usually ships in 3-6 days

0

6:1

Toro 100-6110

OVERHAUL SEAL KIT

Note: Not illustrated

$86.99

$

Usually ships in 3-6 days

0

6:2

Toro 100-6111

KIT-BLOCK, CYLINDER
(Superseded to 127-3867)

Note: Not illustrated

$220.99

$

Usually ships in 3-6 days

0

6:3

Toro 100-6112

PLATE-VALVE

Note: Not illustrated

$266.99

$

In Stock, only 1 left!

0

7

Toro 32128-23

NUT-HF

$1.99

$

In Stock, Qty 20+

0

8

Toro 340-155

FITTING-STR

$29.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

8:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

9

Toro 325-6

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

10

Toro 98-2767

MOTOR-WHEEL, HYD

$2571.99

$

Usually ships in 3-6 days

0

10:4

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 20+

0

10:1

Toro 100-6131

SEAL KIT

Note: Not illustrated

$108.99

$

In Stock, Qty 6

0

10:2

Toro 99-3090

SHAFT-COUPLING

Note: Not illustrated

$559.99

$

Usually ships in 3-6 days

0

10:3

Toro 100-4241

SCREW-HH

Note: Not illustrated

$50.99

$

Usually ships in 3-6 days

0

11

Toro 325-11

SCREW-HH

$2.99

$

In Stock, Qty 12

0

12

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

13

Toro 98-2763-03

PLATE-MOUNTING

$110.99

$

Usually ships in 3-6 days

0

14

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

14:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 16

0

14:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

15

Toro 98-0201

HOSE-HYD

$236.99

$

Usually ships in 3-6 days

0

16

Toro 98-0177

HYD HOSE ASM

$182.99

$

Usually ships in 3-6 days

0

17

Toro 98-0235

HYD HOSE ASM

$

$

Not available

18

Toro 95-3517

HYD TUBE ASM

$123.99

$

Usually ships in 3-6 days

0

19

Toro 100-4239

HYD TUBE ASM

$

$

Not available

20

Toro 99-6161

HYD CHECK VALVE ASM

$299.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

21

Toro 95-3551

HYD HOSE ASM

$

$

Not available

22

Toro 340-102

ADAPTER

$77.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

23

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

24

Toro 98-0233

HOSE-HYD

$293.99

$

Usually ships in 3-6 days

0

25

Toro 99-6160

FITTING-ELBOW, 90 DEG

$145.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

25:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

26

Toro 100-6130

HYD HOSE ASM

$

$

Not available

27

Toro 98-8431

PUMP-HYD, RH

$3816.99

$

Usually ships in 3-6 days

0

27:1

Toro 100-6110

OVERHAUL SEAL KIT

Note: Not illustrated

$86.99

$

Usually ships in 3-6 days

0

27:2

Toro 100-6111

KIT-BLOCK, CYLINDER
(Superseded to 127-3867)

Note: Not illustrated

$220.99

$

Usually ships in 3-6 days

0

27:3

Toro 100-6112

PLATE-VALVE

Note: Not illustrated

$266.99

$

In Stock, only 1 left!

0
