22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 200000301 - 200999999) (2000) GROUP 7-STARTING SYSTEM (CH20S 64637 KOHLER) Parts Diagram

Dingo Compact Utility Loader

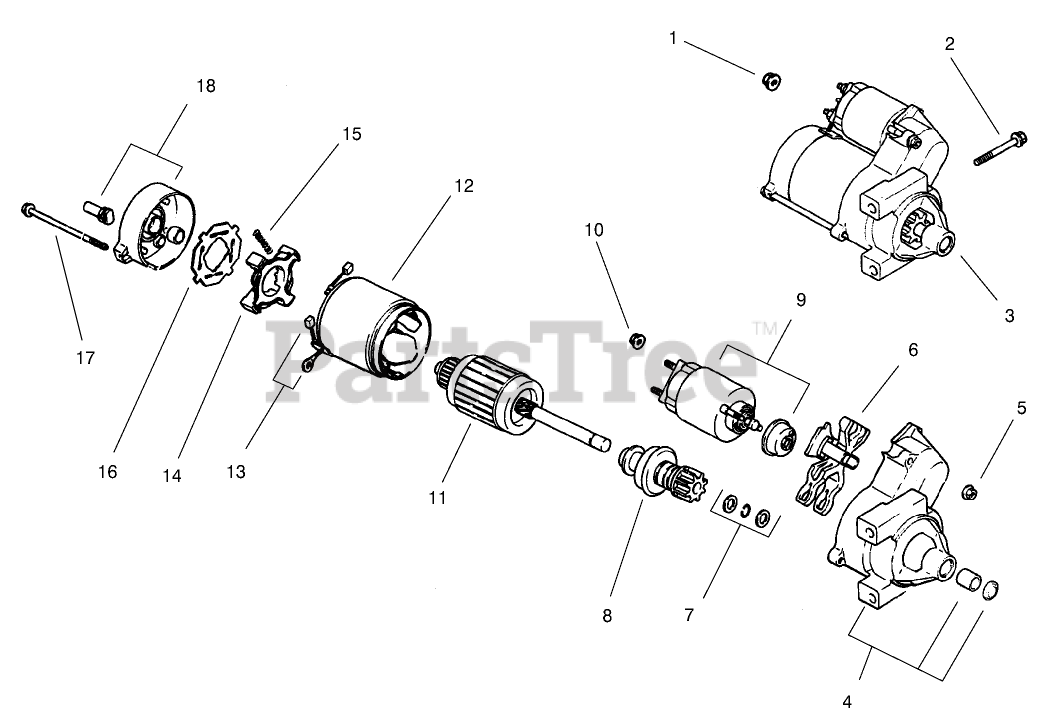

GROUP 7-STARTING SYSTEM (CH20S 64637 KOHLER) Parts Diagram

  • Title

1

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

2

Kohler M-839080-S

SCREW-FLG (M8X1.25X80)
(Superseded to M-851080-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 2 left!

0

3

Kohler 24 098 01-S

Starter, solenoid shift assembly (Incl. 4-18)
(Superseded to 25 098 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$264.99

$

Usually ships in 2-5 days

0

4

Kohler 24 081 04-S

Cap-End, Drive

Note: Call PartsTree Customer Service for more information on Kohler Parts

$365.99

$

Usually ships in 2-5 days

0

5

Kohler 52 100 10-S

Nut-Starter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

Usually ships in 2-5 days

0

6

Kohler 12 090 10-S

LEVER-DRIVE, STARTER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$91.99

$

Usually ships in 2-5 days

0

7

Kohler 24 755 84-S

STARTER REPAIR KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$62.99

$

Usually ships in 2-5 days

0

8

Kohler 12 239 01-S

Drive-Pinion

Note: Call PartsTree Customer Service for more information on Kohler Parts

$361.99

$

Usually ships in 2-5 days

0

9

Kohler 52 435 02-S

Solenoid

Note: Call PartsTree Customer Service for more information on Kohler Parts

$566.99

$

Usually ships in 2-5 days

0

10

Kohler 52 100 09-S

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

Usually ships in 2-5 days

0

11

Kohler 12 170 04-S

Armature-Starter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 12 471 01-S

Frame w/Brushes ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

Kohler 52 221 01-S

Kit, brush & spring (Includes 15)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$130.99

$

Usually ships in 2-5 days

0

14

Kohler 52 323 03-S

Holder-Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$23.99

$

Usually ships in 2-5 days

0

15

Kohler 52 089 09-S

Spring-Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

Usually ships in 2-5 days

0

16

Kohler 52 168 01-S

Insulator

Note: Call PartsTree Customer Service for more information on Kohler Parts

$35.99

$

Usually ships in 2-5 days

0

17

Kohler 52 211 05-S

Bolt-Thru

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

Usually ships in 2-5 days

0

18

Kohler 24 301 01-S

Commutator-cap, end

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
