22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 210000501 - 210999999) (2001) QUICK ATTACH ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

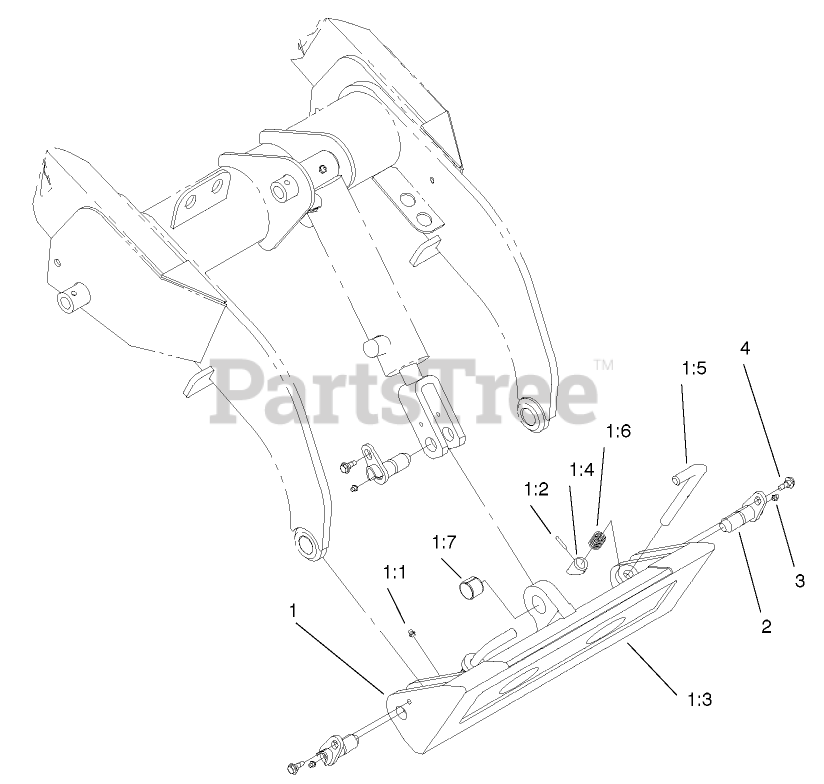

QUICK ATTACH ASSEMBLY Parts Diagram

  • Title

1

Toro 98-4690

QUICK ATTACH ASM
(Superseded to 132-8418)

$1606.99

$

Usually ships in 3-6 days

0

1:1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

1:2

Toro 32121-94

PIN-SPECIAL

$

$

Not available

1:3

Toro 98-4691-03

MOUNT-ATTACH, QUICK
(Superseded to 130-7708-03)

$1411.99

$

Usually ships in 3-6 days

0

1:4

Toro 98-4692

CAM-ATTACH, QUICK

$

$

Not available

1:5

Toro 100-3373

PIN

$60.99

$

Usually ships in 3-6 days

0

1:6

Toro 98-4694

SPRING-COMPRESSION

$13.99

$

In Stock, only 2 left!

0

1:7

Toro 98-4871

BUSHING-TENSION

$25.99

$

In Stock, only 2 left!

0

2

Toro 99-1414

PIN-PIVOT
(Superseded to 112-2609)

$118.99

$

In Stock, only 1 left!

0

3

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

4

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, only 1 left!

0
