22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 230000601 - 230999999) (2003) TWO SPOOL VALVE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

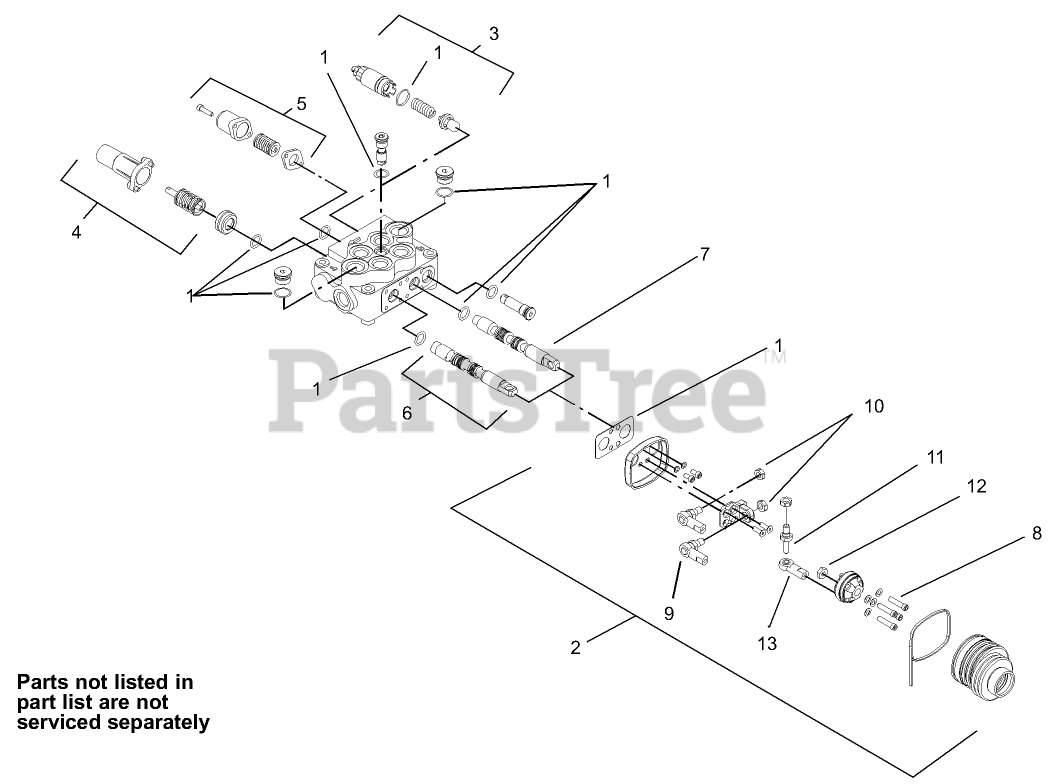

TWO SPOOL VALVE ASSEMBLY Parts Diagram

  • Title

1

Toro 100-4249

SEAL KIT

$127.99

$

Usually ships in 3-6 days

0

2

Toro 100-7230

JOYSTICK KIT
(Superseded to 119-4622)

$810.99

$

Usually ships in 3-6 days

0

3

Toro 100-8805

VALVE-RELIEF

$509.99

$

Usually ships in 3-6 days

0

4

Toro 106-7569

Kit-Spring, Valve

$

$

Not available

5

Toro 106-7570

Kit-Spring

$

$

Not available

6

Toro 106-7571

Spool

$331.99

$

Usually ships in 3-6 days

0

7

Toro 106-7572

Spool

$331.99

$

Usually ships in 3-6 days

0

8

Toro 106-7573

Screw-Joystick

$8.99

$

Usually ships in 3-6 days

0

9

Toro 106-7574

Joint-Articulated

$

$

Not available

10

Toro 106-7575

Nut-Joystick

$

$

Not available

11

Toro 106-7576

Pin-Joystick

$

$

Not available

12

Toro 106-7577

NUT-GALVANISED

$10.99

$

Usually ships in 3-6 days

0

13

Toro 106-7578

End-Rod
(Superseded to 119-4626)

$157.99

$

In Stock, only 3 left!

0
