22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 270000001 - 270999999) (2007) ENGINE AND MOUNT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

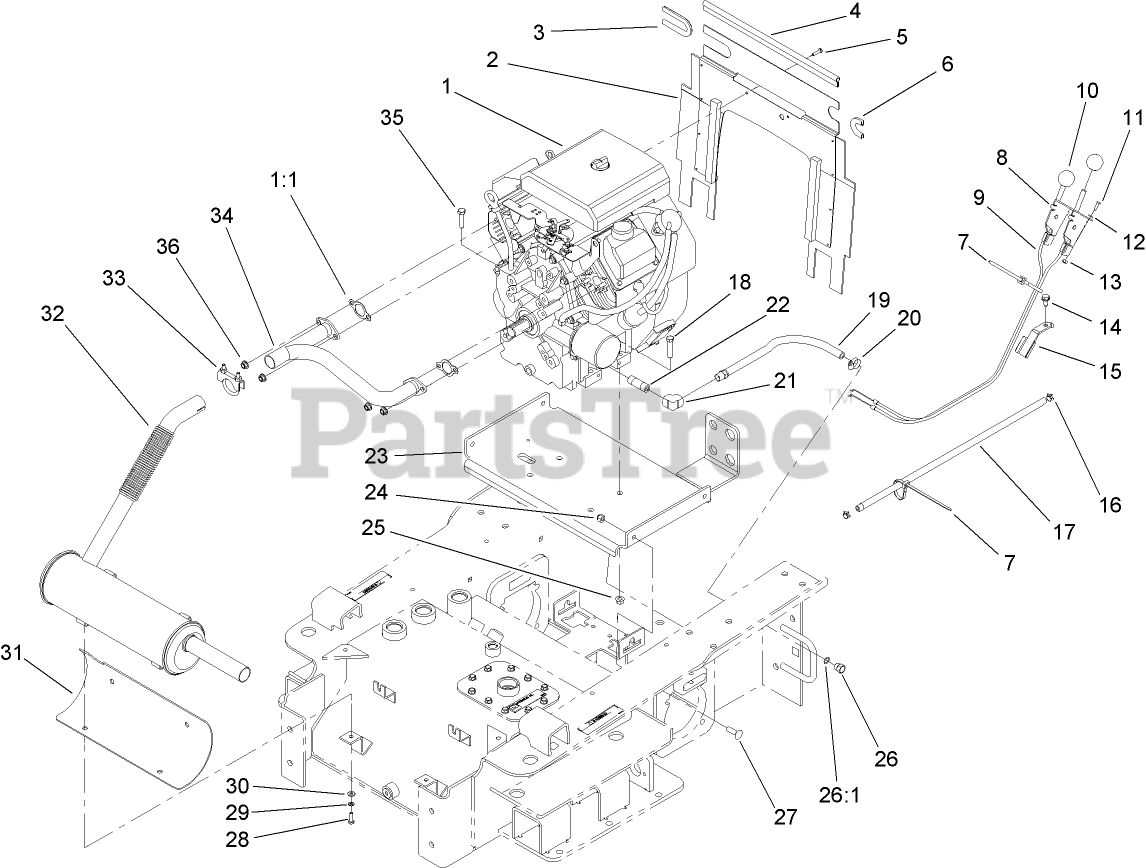

ENGINE AND MOUNT ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER, CH20S-64725

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$3.49

$

Usually ships in 3-6 days

0

2

Toro 106-5748

Engine Baffle ASM

$

$

Not available

3

Toro 105-0378

SEAL-STRIP, 6.5 INCH

$11.99

$

Usually ships in 3-6 days

0

4

Toro 106-5749

Seal-Strip, 16 INCH

$

$

Not available

5

Toro 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 105-0377

SEAL-STRIP, 3 INCH

$10.99

$

Usually ships in 3-6 days

0

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

8

Toro 108-9730

LEVER-CONTROL

$46.99

$

In Stock, only 1 left!

0

9

Toro 108-4679

CABLE-THROTTLE/CHOKE

$23.99

$

In Stock, only 2 left!

0

10

Toro 233-42

KNOB

$14.99

$

In Stock, only 4 left!

0

11

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

15

Toro 100-1299-03

GUIDE-CABLE

$39.99

$

In Stock, only 1 left!

0

16

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

17

Toro 109-0301

HOSE-FUEL

$14.99

$

In Stock, only 2 left!

0

18

Toro 323-53

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

19

Toro 100-1256

OIL HOSE ASM

$92.99

$

Usually ships in 3-6 days

0

20

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 8

0

21

Toro 94-9650

ELBOW-90 DEG

$41.99

$

Usually ships in 3-6 days

0

22

Toro 289-42

NIPPLE

$19.99

$

Usually ships in 3-6 days

0

23

Toro 99-6175-03

ENGINE MOUNTING PLATE ASM

$

$

Not available

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 353-508

PLUG-HH

$9.49

$

In Stock, only 2 left!

0

26:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

27

Toro 3231-28

SCREW-CARR

$4.99

$

In Stock, Qty 6

0

28

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

31

Toro 98-2762

SHIELD-HEAT, MUFFLER

$169.99

$

Usually ships in 3-6 days

0

32

Toro 105-0249

MUFFLER

$706.99

$

Usually ships in 3-6 days

0

33

Toro 2112-11

CLAMP-MUFFLER

$8.49

$

In Stock, only 3 left!

0

34

Toro 110-0150

MANIFOLD-CROSSOVER

$172.99

$

Usually ships in 3-6 days

0

35

Toro 323-50

BOLT-HH

$1.49

$

In Stock, Qty 16

0

36

Toro 112-2844

NUT-HF

$1.49

$

In Stock, Qty 5
