22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 250000001 - 250000400) (2005) TRACK AND TRACTION ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

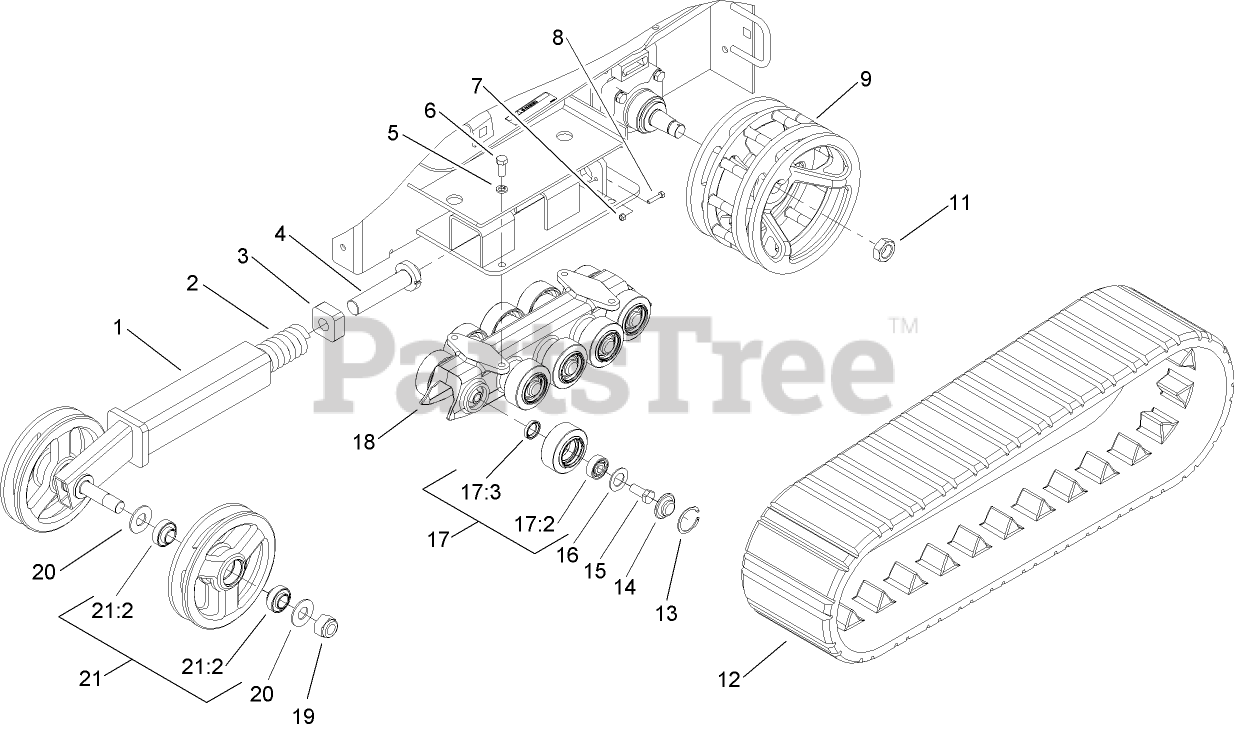

TRACK AND TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 104-6127-03

TENSIONER ARM ASM
(Superseded to 108-5631)

$790.99

$

Usually ships in 3-6 days

0

2

Toro 95-3624

SPRING-COMPRESSION

$197.99

$

In Stock, only 2 left!

0

3

Toro 95-3626

BLOCK-TENSIONER

$301.99

$

Usually ships in 3-6 days

0

4

Toro 98-9846

BOLT-TENSIONER

$469.99

$

Usually ships in 3-6 days

0

5

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

6

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 6

0

9

Toro 106-7711-03

WHEEL-DRIVE, TX 425
(Superseded to 110-0146-03)

$2033.99

$

Usually ships in 3-6 days

0

11

Toro 107-9319

NUT-HEX

$46.99

$

Usually ships in 3-6 days

0

12

Toro 100-8931

TRACK
(Superseded to 136-5848)

$1356.99

$

Usually ships in 3-6 days

0

13

Toro 106-7595

RING-SNAP, INTERNAL

$5.99

$

In Stock, only 1 left!

0

14

Toro 106-7557

CAP-WHEEL, BEARING

$5.99

$

In Stock, only 1 left!

0

15

Toro 327-4

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

16

Toro 106-7585

Gasket-Bogie

$2.49

$

In Stock, Qty 9

0

17

Toro 106-7621

Road Wheel ASM
(Superseded to 138-0782)

$101.99

$

In Stock, only 3 left!

0

17:2

Toro 93-4237

BEARING
(Superseded to 120-5378)

$17.99

$

In Stock, Qty 20+

0

17:3

Toro 253-118

SEAL-OIL

$20.99

$

In Stock, Qty 11

0

18

Toro 106-7592-03

GUIDE-TRACK
(Superseded to 117-1308-0P)

$864.99

$

In Stock, only 2 left!

0

19

Toro 104-2024

NUT-HEX, NI

$22.99

$

In Stock, only 2 left!

0

20

Toro 104-6126

Washer-Flat

$4.99

$

Usually ships in 3-6 days

0

21

Toro 104-6123

Tensioner Wheel ASM
(Superseded to 138-0783)

$572.99

$

Usually ships in 3-6 days

0

21:2

Toro 104-6129

Bearing-Ball

$151.99

$

In Stock, only 2 left!

0
