22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 270000001 - 270999999) (2007) PARKING BRAKE ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

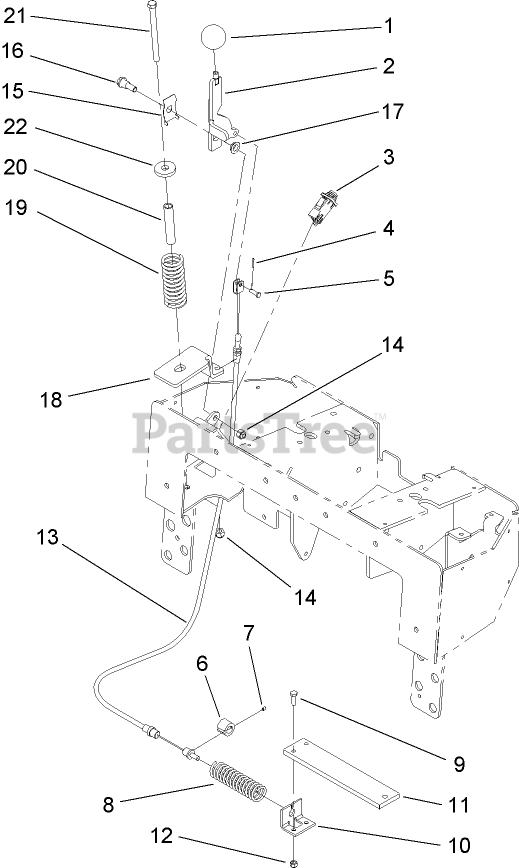

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 233-21

KNOB

$14.99

$

Usually ships in 3-6 days

0

2

Toro 112-2694-03

HANDLE-BRAKE

$76.99

$

Usually ships in 3-6 days

0

3

Toro 108-4653

SWITCH-PLUNGER

$63.99

$

Usually ships in 3-6 days

0

4

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 15

0

5

Toro 283-67

PIN-CLEVIS

$2.99

$

In Stock, only 1 left!

0

6

Toro 100-6274

Tube-Guide

$22.99

$

Usually ships in 3-6 days

0

7

Toro 3245-20

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 100-1678

SPRING
(Superseded to 100-1678-03)

$41.99

$

Usually ships in 3-6 days

0

9

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 106-9395-03

BRACKET-MOUNTING, BRAKE

$41.99

$

Usually ships in 3-6 days

0

11

Toro 106-9379-03

PLATE-BRAKE

$

$

Not available

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 112-2791

CABLE-BRAKE

$145.99

$

In Stock, only 1 left!

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 112-2695

SPRING-LEAF

$19.99

$

Usually ships in 3-6 days

0

16

Toro 94-6177

BOLT-SHOULDER

$10.99

$

Usually ships in 3-6 days

0

17

Toro 93-2368

BUSHING-FLANGE

$3.99

$

Usually ships in 3-6 days

0

18

Toro 114-1253

BRACKET-CABLE, SPRING

$

$

Not available

19

Toro 114-1254

SPRING-COMPRESSION

$23.99

$

Usually ships in 3-6 days

0

20

Toro 114-1255

SPACER-SPRING

$14.99

$

Usually ships in 3-6 days

0

21

Toro 323-21

SCREW-HH
(Superseded to 323-39)

$12.99

$

In Stock, Qty 20+

0

22

Toro 98-0691

WASHER-HARDENED

$21.99

$

Usually ships in 3-6 days

0
