22308 (TX 413) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) PRINCIPLE HYDRAULIC ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

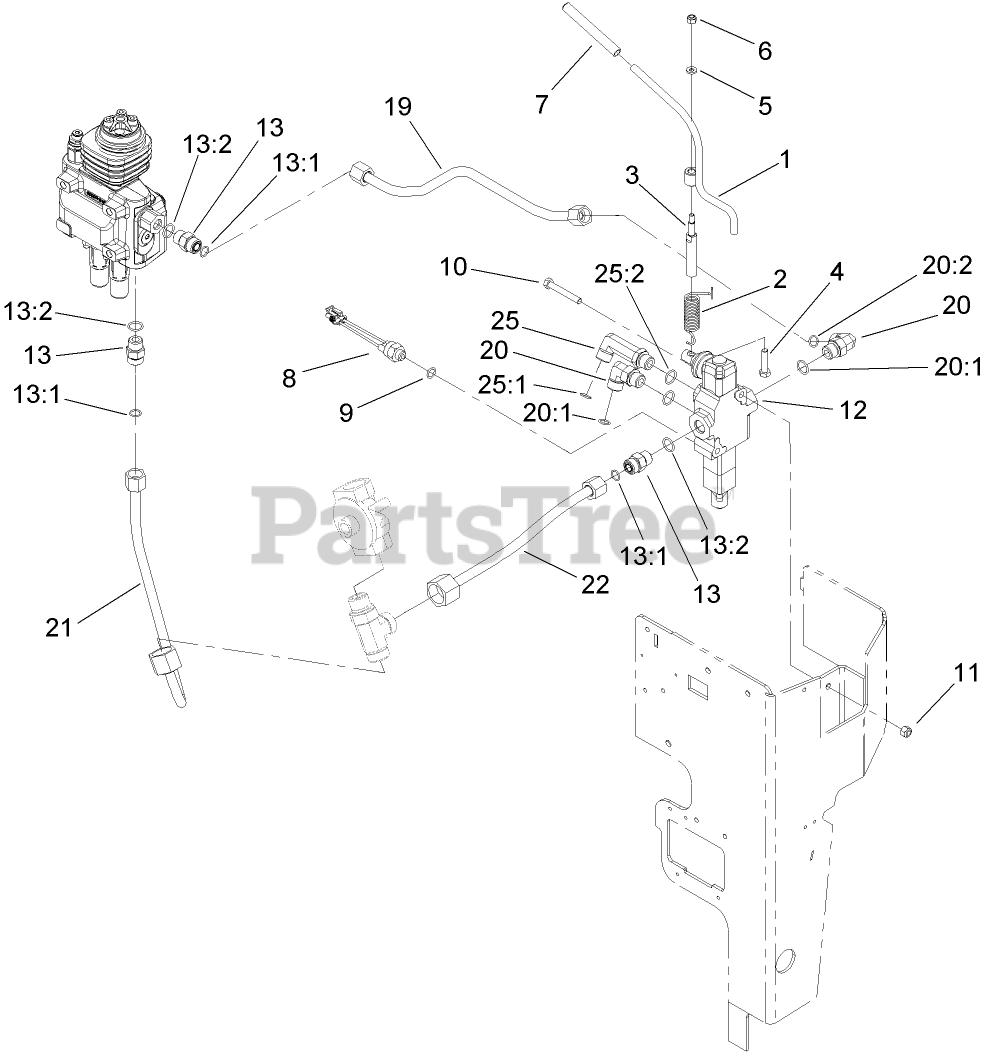

PRINCIPLE HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 100-4246

AUXILIARY LEVER ASM

$

$

Not available

2

Toro 100-6129

SPRING-TORSION

$28.99

$

Usually ships in 3-6 days

0

3

Toro 104-2827

SPACER-HIFLO

$174.99

$

Usually ships in 3-6 days

0

4

Toro 48-7740

SCREW
(Superseded to 33114-035)

$5.49

$

In Stock, only 1 left!

0

5

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 92-6798

CAP-ROD, TILT

$5.49

$

In Stock, only 2 left!

0

8

Toro 72-4310

SWITCH-BALL

$108.99

$

Usually ships in 3-6 days

0

9

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

10

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 106-9405

VALVE-1 SPOOL

$1600.99

$

Usually ships in 3-6 days

0

13

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

13:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

13:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

19

Toro 106-9437

HYD TUBE ASM

$

$

Not available

20

Toro 340-98

FITTING-ELBOW-90 DEG

$36.99

$

In Stock, only 2 left!

0

20:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

20:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

21

Toro 106-9444

HYD TUBE ASM

$

$

Not available

22

Toro 106-9443

HYD TUBE ASM

$

$

Not available

25

Toro 99-6160

FITTING-ELBOW, 90 DEG

$159.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

25:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0
