22311 (220) - Toro Dingo Compact Utility Loader (SN: 220000001 - 220999999) (2002) ENGINE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

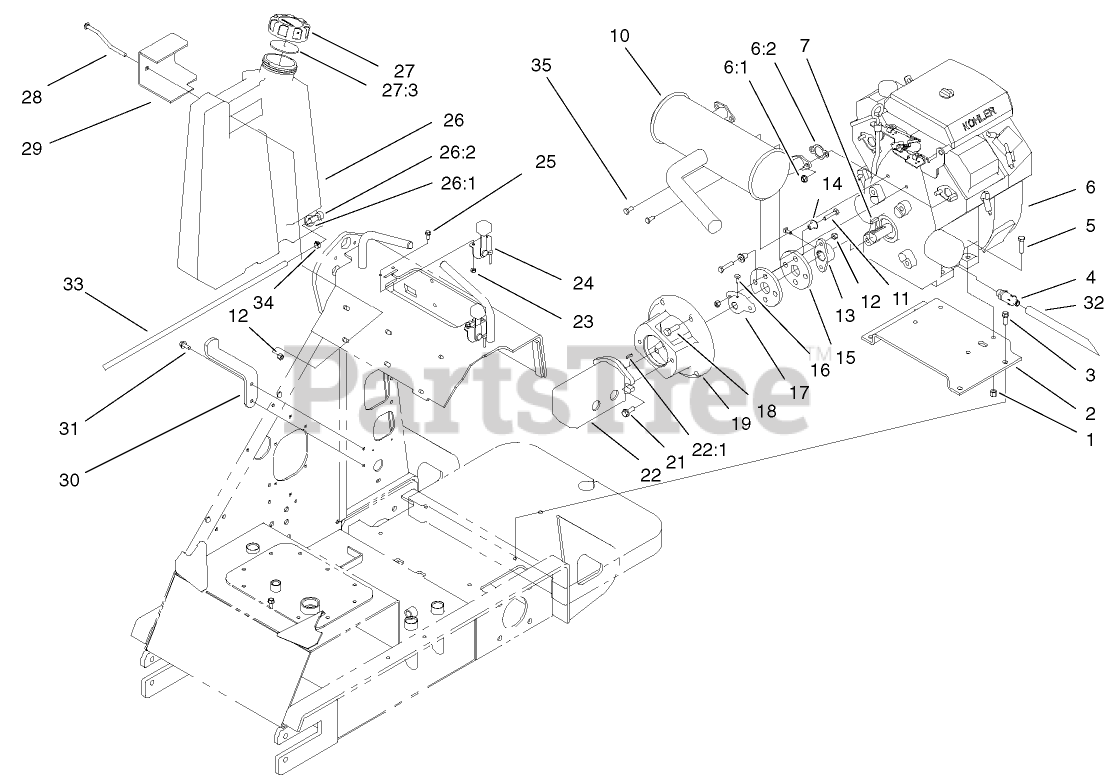

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 98-4666-03

MOUNT-ENGINE

$131.99

$

Usually ships in 3-6 days

0

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 92-6877

VALVE-DRAIN, OIL

$43.99

$

In Stock, only 3 left!

0

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Engine-Kohler Ch20s-64667

$

$

Not available

6:1

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 9

0

6:2

Toro 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)

$

$

Not available

7

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 7

0

10

Toro 100-1711

MUFFLER-KOHLER
(Superseded to 105-8381)

$523.99

$

In Stock, only 1 left!

0

11

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 27-1960

HUB-ENGINE
(Superseded to 110-5236)

$39.99

$

In Stock, only 2 left!

0

14

Toro 71-4411

SPACER

$3.49

$

In Stock, only 3 left!

0

15

Toro 44-2230

COUPLING-RUBBER
(Superseded to 115-4523)

$59.99

$

In Stock, Qty 20+

0

16

Toro 3241-6

SCREW-SQH

$5.49

$

Usually ships in 3-6 days

0

17

Toro 98-4701

HUB-PUMP

$77.99

$

Usually ships in 3-6 days

0

18

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

19

Toro 98-2751-03

MOUNT-PUMP

$266.99

$

Usually ships in 3-6 days

0

21

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

22

Toro 98-4702

PUMP-GEAR, TANDEM

$2344.99

$

Usually ships in 3-6 days

0

22:1

Toro 98-4700

KEY-SQUARE

$16.99

$

Usually ships in 3-6 days

0

22:2

Toro 99-1353

SEAL KIT

Note: Not illustrated

$130.99

$

Usually ships in 3-6 days

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 85-9310

CONTROL-CHOKE / THROTTLE

$109.99

$

Usually ships in 3-6 days

0

25

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 6

0

26

Toro 105-4052

RH FUEL TANK ASM

$

$

Not available

26:1

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

26:2

Toro 104048

VALVE-FUEL

$39.99

$

In Stock, only 2 left!

0

27

Toro 104-7418

CAP-FUEL, GAS

$55.99

$

In Stock, only 1 left!

0

27:3

Toro 104-7420

GASKET-VENTED

$36.99

$

Usually ships in 3-6 days

0

28

Toro 98-4657

BOLT-MOUNT

$43.99

$

Usually ships in 3-6 days

0

29

Toro 98-4655-03

PLATE-MOUNT

$

$

Not available

30

Toro 98-4656-03

MOUNT-BOTTOM, TANK

$

$

Not available

31

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

32

Toro 98-4667

HOSE

$31.99

$

Usually ships in 3-6 days

0

33

Toro 98-4668

HOSE-FUEL

$

$

Not available

34

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

35

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0
