22318 (323) - Toro Dingo Compact Utility Loader (SN: 315000001 - 315999999) (2015) ENGINE AND HYDRAULIC PUMP ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

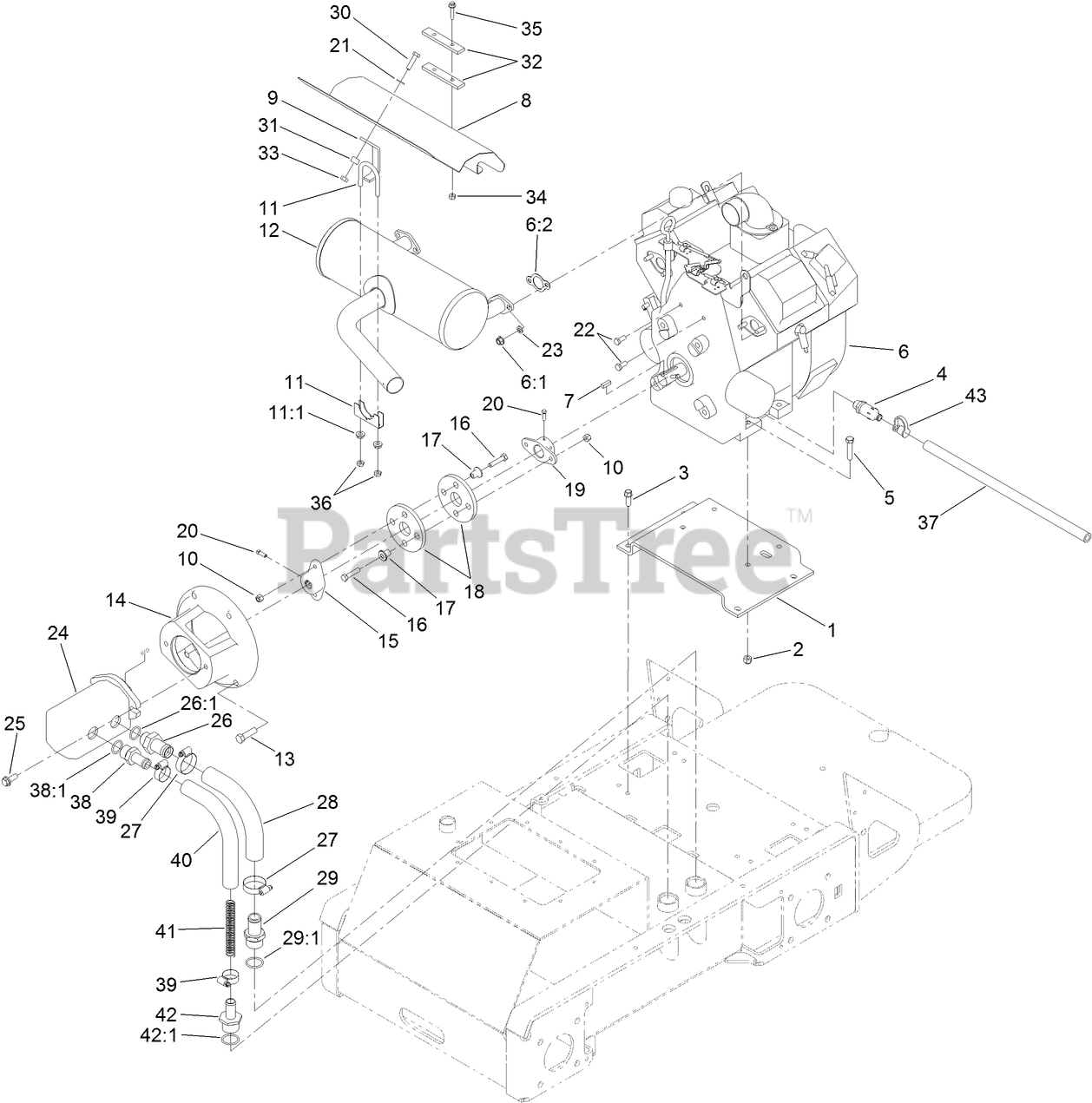

ENGINE AND HYDRAULIC PUMP ASSEMBLY Parts Diagram

  • Title

1

Toro 98-4666-03

MOUNT-ENGINE

$131.99

$

Usually ships in 3-6 days

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

4

Toro 92-6877

VALVE-DRAIN, OIL

$43.99

$

In Stock, only 3 left!

0

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 117-1746

ENGINE-KOHLER, CH680S
(Superseded to 133-8076)

Note: Obtain parts from www.kohlerplus.com

$5896.99

$

Usually ships in 3-6 days

0

6:1

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 9

0

6:2

Toro 110-6697

GASKET-EXHAUST

$

$

Not available

7

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 7

0

8

Toro 99-3115-03

SHIELD-MUFFLER

$144.99

$

Usually ships in 3-6 days

0

9

Toro 99-3138-03

SUPPORT-SHIELD

$36.99

$

Usually ships in 3-6 days

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 2112-9

CLAMP

$10.99

$

Usually ships in 3-6 days

0

11:1

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 105-8381

Muffler

$523.99

$

In Stock, only 1 left!

0

13

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 98-2751-03

MOUNT-PUMP

$266.99

$

Usually ships in 3-6 days

0

15

Toro 98-4701

HUB-PUMP

$77.99

$

Usually ships in 3-6 days

0

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 71-4411

SPACER

$3.49

$

In Stock, only 3 left!

0

18

Toro 115-4523

COUPLING-RUBBER

$59.99

$

In Stock, Qty 20+

0

19

Toro 110-5236

HUB-ENGINE

$39.99

$

In Stock, only 2 left!

0

20

Toro 3241-6

SCREW-SQH

$5.49

$

Usually ships in 3-6 days

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 108-4710

HYD PUMP ASM

$2392.99

$

Usually ships in 3-6 days

0

25

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

26

Toro 99-3017

FITTING

$96.99

$

In Stock, only 1 left!

0

26:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

27

Toro 2412-111

CLAMP

$5.49

$

Usually ships in 3-6 days

0

28

Toro 99-3046

HOSE-SUCTION, FORMED

$244.99

$

Usually ships in 3-6 days

0

29

Toro 354-78

FITTING-STR

$63.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

30

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

31

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0

32

Toro 99-3116-03

SPACER-BAR

$22.99

$

Usually ships in 3-6 days

0

33

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

34

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

35

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

36

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

37

Toro 98-4667

HOSE

$31.99

$

Usually ships in 3-6 days

0

38

Toro 354-73

FITTING-STRAIGHT

$44.99

$

Usually ships in 3-6 days

0

38:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

39

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

40

Toro 98-2713

HOSE-SUCTION, HYD

$33.99

$

In Stock, only 2 left!

0

41

Toro 99-5349

Spring-Compression

$11.99

$

Usually ships in 3-6 days

0

42

Toro 99-6932

FITTING-HOSE, BARBED

$204.99

$

Usually ships in 3-6 days

0

42:1

Toro 237-117

O-RING

$9.49

$

Usually ships in 3-6 days

0

43

Toro 354-79

CAP-DUST

$10.99

$

Usually ships in 3-6 days

0
