22322 (TX 427) - Toro Dingo Wide Track Compact Utility Loader (SN: 316000001 - 316999999) (2016) BATTERY, KEY SWITCH AND FUEL GAUGE ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

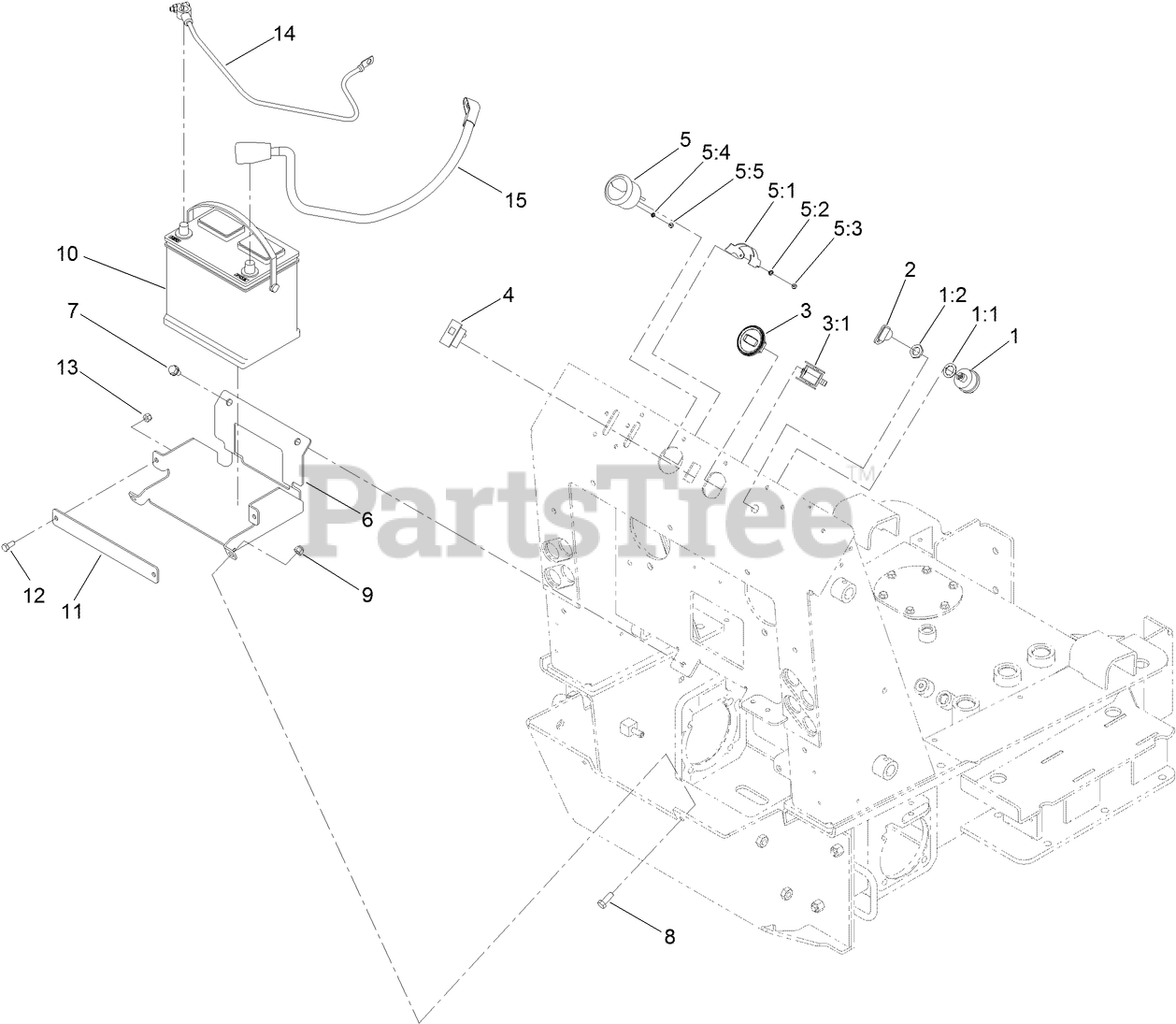

BATTERY, KEY SWITCH AND FUEL GAUGE ASSEMBLY Parts Diagram

  • Title

1

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$41.99

$

In Stock, Qty 18

0

1:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 18

0

1:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 7

0

2

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

3

Toro 104-7427

INDUCTIVE HOURMETER ASM

$333.99

$

Usually ships in 3-6 days

0

3:1

Toro 104-4234

CLIP-MOUNTING

$7.99

$

Usually ships in 3-6 days

0

4

Toro 104-2839

LIGHT-TEMP, OIL

$106.99

$

In Stock, only 1 left!

0

5

Toro 66-2940

GAUGE-FUEL

$201.99

$

Usually ships in 3-6 days

0

5:1

Toro 100-6147

BRACKET-MOUNTING, GAUGE

$7.49

$

Usually ships in 3-6 days

0

5:2

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

5:3

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5:4

Toro 3255-24

WASHER-LOCK / EXT

$0.99

$

Usually ships in 3-6 days

0

5:5

Toro 3217-16

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

6

Toro 106-9390-01

TRAY-MOUNTING, BATTERY

$165.99

$

Usually ships in 3-6 days

0

7

Toro 32144-69

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

8

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 104-9979

BATTERY
(Superseded to 132-8621)

$436.99

$

Usually ships in 3-6 days

0

11

Toro 105-0371-01

CLAMP-BATTERY
(Superseded to 105-0371-03)

$20.99

$

Usually ships in 3-6 days

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 106-5708

CABLE-BATTERY, NEGATIVE

$93.99

$

Usually ships in 3-6 days

0

15

Toro 106-5707

CABLE-BATTERY, POSITIVE

$105.99

$

Usually ships in 3-6 days

0
